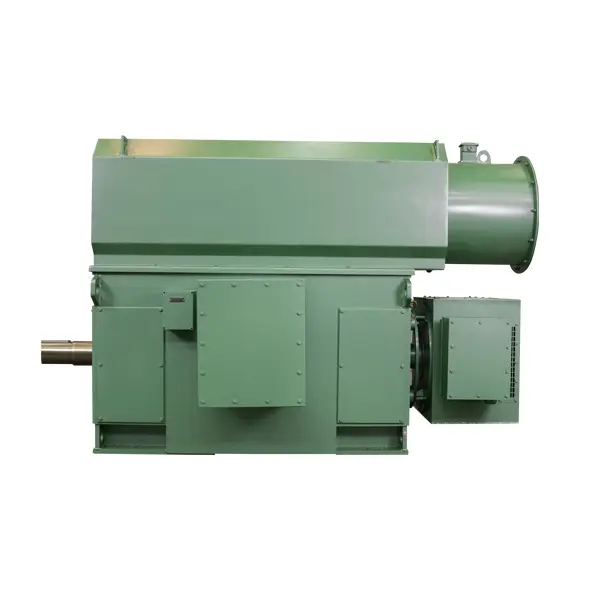

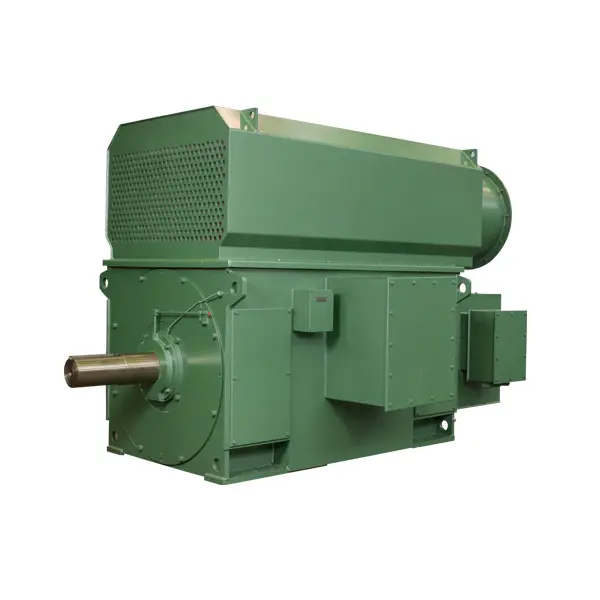

Wire Wound Air Cooling Induction Motor YRKK

Wire wound motor is also called wound motor.

● Frequency: 50/60 Hz;
● Frame size: H355mm-H1000mm;
● Power range: 185kW～4500kW;
● Number of poles: 4P～16P;
● Rated voltage: 6kV, 10kV and various special voltages;
● Insulation grade: Class F;
● Protection grade: IP54 or IP55;
● Insulation method: IMB3;
● Cooling method: IC611, IC616;

● 20 Years’ Experience;
● 65,000 ㎡ Factory;
● ISO 9001:2016, ISO 14001:2015, ISO 45001:2020;
● OEM/ODM Accept.

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional wire wound motor manufacturers and suppliers in China, to buy or wholesale wound motor from our factory. For quotation or if you have any questions, contact us now for customized and price.

Product features

● high power index;

● low noise and vibration;

● high reliability;

● easy use;

● installation and maintenance.

Product application

The motor can be used to drive various general machinery such as compressors, water pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, in mining, machinery, metallurgy, petroleum, chemical industry, and agreements, as the basis for special design of the motor to ensure the reliable operation of the motor.

Technical Parameters

Model	Rated power(kW)	Rated current (A)	Synchronous speed (rmin)	efficiency (%)	Power factor cosφ	Maximum torque/rated torque Mmax/Mn
YRKK355-4	185	23.3	1500	92.0	0.83	1.8
YRNK355-4	200	25.1	1500	92.2	0.83	1.8
YRKK355-4	220	27.6	1500	92.4	0.83	1.8
YRNK400-4	250	30.9	1500	92.7	0.84	1.8
YRKK400-4	280	34.6	1500	92.8	0.84	1.8
YRKK400-4	315	38.8	1500	92.9	0.84	1.8
YRKK400-4	355	43.7	1500	93.0	0.84	1.8
YRKK400-4	400	49.2	1500	93.2	0.84	1.8
YRKK450-4	450	54.5	1500	93.4	0.85	1.8
YRKK450-4	500	60.5	1500	93.6	0.85	1.8
YRKK450-4	560	67.5	1500	93.9	0.85	1.8
YRKK450-4	630	75.7	1500	94.2	0.85	1.8
YRKK500-4	710	84.2	1500	94.3	0.86	1.8
YRKK500-4	800	94.8	1500	94.4	0.86	1.8
YRKK500-4	900	106.6	1500	94.5	0.86	1.8
YRKK500-4	1000	118.3	1500	94.6	0.86	1.8
YRKK560-4	1120	130.8	1500	94.7	0.87	1.8
YRKK560-4	1250	145.8	1500	94.8	0.87	1.8
YRKK560-4	1400	163.2	1500	94.9	0.87	1.8
YRKK630-4	1600	186.3	1500	95.0	0.87	1.8
YRKK630-4	1800	209.4	1500	95.1	0.87	1.8
YRKK630-4	2000	232.4	1500	95.2	0.87	1.8
YRKK400-6	185	23.6	1000	91.9	0.82	1.8
YRKK400-6	200	25.5	1000	92.1	0.82	1.8
YRKK400-6	220	28.0	1000	92.3	0.82	1.8
YRKK400-6	250	31.7	1000	92.5	0.82	1.8
YRKK400-6	280	35.5	1000	92.6	0.82	1.8
YRKK450-6	315	39.4	1000	92.8	0.83	1.8
YRKK450-6	355	44.3	1000	93.0	0.83	1.8
YRNK450-6	400	49.7	1000	93.3	0.83	1.8
YRNK450-6	450	55.9	1000	93.4	0.83	1.8
YRKK500-6	500	61.2	1000	93.6	0.84	1.8
YRKK500-6	560	68.4	1000	93.8	0.84	1.8
YRKK500-6	630	76.7	1000	94.1	0.84	1.8
YRKK500-6	710	86.3	1000	94.3	0.84	1.8
YRKK560-6	800	95.8	1000	94.5	0.85	1.8
YRKK560-6	900	107.7	1000	94.6	0.85	1.8
YRKK560-6	1000	119.4	1000	94.8	0.85	1.8
YRKK630-6	1120	133.6	1000	94.9	0.85	1.8
YRKK630-6	1250	149.0	1000	95.0	0.85	1.8
YRKK630-6	1400	166.7	1000	95.1	0.85	1.8
YRKK400-8	185	24.9	750	91.8	0.78	1.8
YRKK400-8	200	26.8	750	92.0	0.78	1.8
YRKK450-8	220	29.1	750	92.2	0.79	1.8
YRKK450-8	250	33.0	750	92.3	0.79	1.8
YRKK450-8	280	36.9	750	92.5	0.79	1.8
YRKK450-8	315	41.4	750	92.6	0.79	1.8
YRKK500-8	355	46.1	750	92.7	0.80	1.8
YRKK500-8	400	51.7	750	93.0	0.80	1.8
YRKK500-8	450	58.1	750	93.1	0.80	1.8
YRKK500-8	500	64.3	750	93.5	0.80	1.8
YRKK560-8	560	71.0	750	93.7	0.81	1.8
YRKK560-8	630	79.7	750	93.9	0.81	1.8
YRKK560-8	710	39.7	750	94.0	0.81	1.8
YRKK560-8	800	100.9	750	94.2	0.81	1.8
YRKK630-8	900	113.4	750	94.3	0.81	1.8
YRKK630-8	1000	125.8	750	94.4	0.81	1.8
YRKK630-8	1120	140.8	750	94.5	0.81	1.8
YRKK630-8	1250	157.0	750	94.6	0.81	1.8
YRKK450-10	185	26.1	800	90.9	0.75	1.8
YRKK450-10	200	28.2	600	91.1	0.75	1.8
YRKK450-10	220	30.9	600	91.3	0.75	1.8
YRKK450-10	250	35.1	600	91.5	0.75	1.8
YRKK500-10	280	38.6	600	91.8	0.76	1.8
YRKK500-10	316	43.4	600	91.9	0.76	1.8
YRKK500-10	355	48.8	600	92.1	0.76	1.8
YRKK500-10	400	546.0	600	92.8	0.76	1.8
YRKK560-10	450	60.4	600	93.1	0.77	1.8
YRKN560-10	500	67.0	600	93.3	0.77	1.8
YRKK560-10	560	74.8	600	93.5	0.77	1.8
YRKK560-10	630	84.1	600	93.6	0.77	1.8
YRKJ.630-10	710	93.5	600	93.7	0.78	1.8
YRKK630-10	800	105.2	600	93.8	0.78	1.8
YRKK630-10	900	118.2	800	93.9	0.78	1.8
YRKK630-10	1000	131.1	600	94.0	0.78	1.8
YRKK450-12	185	28.1	500	90.6	0.70	1.8
YRKK450-12	200	30.3	500	90.8	0.70	1.8
YRKK500-12	220	32.3	500	91.0	0.72	1.8
YRKK500-12	250	36.6	500	91.3	0.72	1.8
YRKK500-12	280	40.8	500	91.7	0.72	1.8
YRKK500-12	315	45.8	500	92.0	0.72	1.8
YRKK560-12	355	50.8	500	92.1	0.73	1.8
YRKK560-12	400	57.1	500	92.3	0.73	1.8
YRKK560-12	450	64.1	500	92.5	0.73	1.8
YRKK630-12	500	69.2	500	92.7	0.75	1.8
YRKK630-12	560	77.4	500	92.8	0.75	1.8
YRKK630-12	630	87.0	500	92.9	0.75	1.8
YRKK630-12	710	98.0	500	93.0	0.75	1.8
