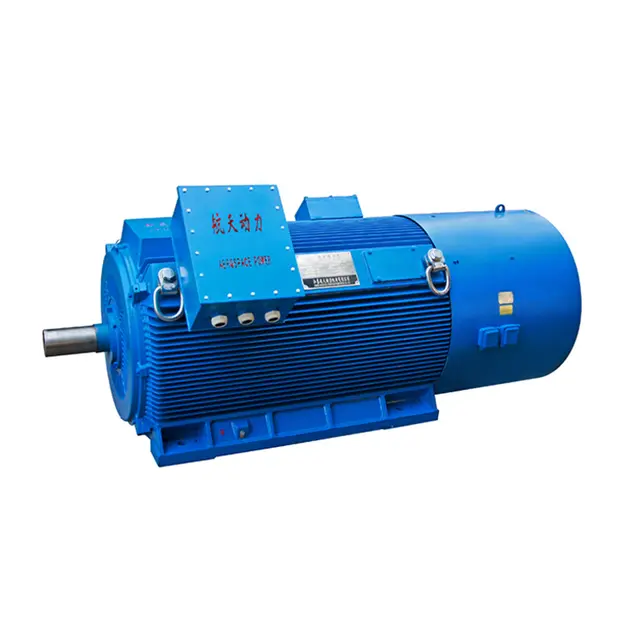

High Voltage 3 Phase Inverter Motor Y2VP

3 phase inverter motor is also called asynchronous inverter motors or inverter motor.

● Frame size: 355-630;
● Synchronous speed: 3000r/min, 1500 r/min, 1000 r/min, 750 r/min;
● Rated frequency: 50Hz (60Hz motors can also be manufactured according to order requirements );
● Rated voltage: 6kV, 10kV (motors of other voltages can also be manufactured according to order requirements);
● Duty: S1
● Power range: 160kW -3150kW;
● Cooling method: IC416;
● Protection level: IP54, can also be made into IP55, IP56, IP65;

● 20 Years’ Experience;
● 65,000 ㎡ Factory;
● ISO 9001:2016, ISO 14001:2015, ISO 45001:2020;
● OEM/ODM Accept.

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional 3 phase inverter motor manufacturers and suppliers in China, to buy or wholesale asynchronous inverter motors from our factory. For quotation or if you have any questions, contact us now for customized inverter motor and price.

Product application

This series of products are mainly suitable for general mechanical equipment such as fans, water pumps, compressors, crushers, chip cutting machines, transportation machinery or other similar mechanical equipment in industries such as petroleum, chemical industry, coal, power stations, metallurgy, transportation, textile, medicine, and grain processing.

Technical Parameters

Table 1 Y2VP series motor spectrum (6kV)

Stand number	At the same speed r/min
	3000	1500	1000	750
	Work rate kW
1 2 3 4 355 5 6 7 8 9	185	185	185	185
	200	200	200	200
	220	220	220	220
	250	250	250	250
	280	280	280	（280）
	315	315	315	—
	355	355	（355）	—
	400	400	—	—
	（450）	（450）	—	—
1 400 2 3 4 5	450	450	355	280
	500	500	400	315
	560	560	450	355
	（630）	（630）	500	400
	—	—	（560）	—
1 450 2 3 4 5	630	630	560	450
	710	710	630	500
	800	800	710	560
	（900）	900	（800）	（630）
	—	（1000）	—	—
1 500 2 3 4 5	900	1000	800	630
	1000	1120	900	710
	1120	1250	1000	800
	1250	1400	1120	（900）
	1400	（1600）	（1250）	—
1 560 2 3 4 5	1600	1600	1250	900
	1800	1800	1400	1000
	2000	2000	1600	1120
	—	2240	1800	1250
	—	—	—	1400
1 630 2 3 4	2240	2500	2000	1600
	2500	2800	2240	1800
	2800	3150	2500	2000
	—	—	—	2240

Table 2 Y2VP series motor model spectrum (10kV)

Stand number	At the same speed r/min
	3000	1500	1000	750
	Work rate kW
1 2 3 4 400 5 6 7 8 9 10 11	185	185	185	185
	200	200	200	200
	220	220	220	220
	250	250	250	250
	280	280	280	280
	315	315	315	315
	355	355	355	—
	400	400	400	—
	450	450	（450）	—
	（500）	500	—	—
	—	(560)	—	—
1 450 2 3 4 5	500	560	450	355
	560	630	500	400
	630	710	560	450
	710	800	630	500
	（800）	（900）	(710)	—
1 500 2 3 4 5	800	900	710	560
	900	1000	800	630
	1000	1120	900	710
	1120	1250	1000	800
	—	—	（1120）	—
1 560 2 3 4	1250	1400	1120	900
	1400	1600	1250	1000
	1600	1800	1400	1120
	1800	2000	1600	1250
1 630 2 3 4	2000	2240	1800	1400
	2240	2500	2000	1600
	2500	2800	2240	1800
	—	—	—	2000

Table 3 Y2VP series motor efficiency and power factor standards (6kV)

Work rate kW	Synchronous speed r/min
	3000	1500	1000	750	3000	1500	1000	750
	Efficiency η %				Power factor cosφ
160	-	-	92.2	92.1	-	-	0.8	-
185	92.2	92.6	92.4	92.3	0.84	0.84	0.8	0.76
200	92.4	92.9	92.6	92.5	0.84	0.84	0.8	0.76
220	92.5	93.0	92.8	92.6	0.84	0.84	0.82	0.77
250	92.6	93.1	93.0	92.8	0.84	0.84	0.82	0.77
280	92.9	93.2	93.2	93.0	0.86	0.84	0.82	0.78
315	93.2	93.4	93.5	93.2	0.86	0.85	0.82	0.78
355	93.4	93.6	93.7	93.3	0.86	0.85	0.83	0.78
400	93.9	93.7	93.7	93.5	0.86	0.85	0.83	0.79
450	94.1	94.0	94.0	93.6	0.86	0.85	0.83	0.79
500	94.4	94.2	94.3	94.2	0.87	0.86	0.83	0.8
560	94.5	94.4	94.5	94.3	0.87	0.86	0.83	0.8
630	94.6	94.6	94.6	94.4	0.87	0.86	0.83	0.81
710	94.7	94.8	94.7	94.4	0.87	0.86	0.83	0.81
800	95.1	95.0	94.9	94.6	0.88	0.86	0.83	0.81
900	95.2	95.1	95.1	94.6	0.88	0.86	0.84	0.81
1000	95.3	95.2	95.2	94.7	0.88	0.86	0.84	0.82
1120	95.4	95.3	95.3	94.8	0.88	0.86	0.84	0.82
1250	95.6	95.5	95.5	94.9	0.89	0.87	0.84	0.82
1400	95.7	95.5	95.61	95.0	0.89	0.87	0.86	0.82
1600	95.8	95.6	95.7	95.1	0.89	0.87	0.86	0.82
1800	95.9	95.7	95.8	95.2	0.89	0.87	0.86	0.83
2000	96.0	95.8	95.9	95.3	0.90	0.88	0.86	0.83
2240	96.1	95.9	96.0	95.4	0.90	0.88	0.86	0.83
2500	96.2	96.0	96.1	—	0.90	0.88	0.86	—
2800	96.3	96.1	—	—	0.90	0.88	—	—
3150	—	96.2	—	—	—	0.88	—	—

Table 4 Y2VP series motor efficiency and power factor standards (10kV)

Work rate kW	Synchronous speed r/min
	3000	1500	1000	750	3000	1500	1000	750
	efficiency η%				Power factor cosφ
185	93.2	93.2	92.9	93.1	0.84	0.83	0.82	0.77
200	93.3	93.3	93.0	93.2	0.85	0.84	0.82	0.78
220	93.4	93.4	93.1	93.3	0.85	0.84	0.82	0.78
250	93.5	93.5	93.2	93.5	0.85	0.84	0.82	0.78
280	93.7	93.6	93.4	93.7	0.85	0.84	0.83	0.78
315	93.9	93.8	93.6	94.1	0.85	0.84	0.83	0.79
355	94.2	93.9	93.7	94.2	0.86	0.85	0.83	0.79
400	94.4	94.0	93.9	94.4	0.86	0.85	0.83	0.80
450	94.6	94.4	94.0	94.5	0.86	0.85	0.83	0.80
500	94.7	94.4	94.4	94.8	0.86	0.85	0.83	0.80
560	94.8	94.6	94.5	94.9	0.87	0.86	0.83	0.81
630	94.8	94.8	94.8	95.3	0.87	0.86	0.83	0.81
710	95.0	95.2	94.9	95.4	0.87	0.86	0.83	0.81
800	95.1	95.2	95.0	95.5	0.88	0.87	0.84	0.81
900	95.2	95.3	95.2	95.6	0.88	0.87	0.84	0.81
1000	95.3	95.4	95.3	95.8	0.89	0.88	0.84	0.81
1120	95.4	95.5	95.5	95.9	0.89	0.88	0.84	0.81
1250	95.6	95.6	95.6	96.0	0.89	0.88	0.85	0.81
1400	95.7	95.7	95.8	96.0	0.89	0.88	0.85	0.81
1600	95.7	95.9	95.9	96.0	0.91	0.90	0.85	0.82
1800	95.8	96.0	95.9	96.1	0.91	0.90	0.85	0.82
2000	95.9	96.1	95.9	96.1	0.91	0.90	0.85	0.82
2240	96.1	96.2	95.9	—	0.91	0.90	0.86	—
2500	96.1	96.2	—	—	0.91	0.90	—	—
2800	—	96.3	—	—	—	0.91	—	—

Production environment

3 phase inverter motor Manufacturer

As one of China professional large electric motor manufacturers, we focus on providing high-quality 3 phase inverter motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M² which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.

If you have any questions about 3 phase inverter motor, asynchronous inverter motors, inverter motor,variable frequency motor,high voltage induction motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
