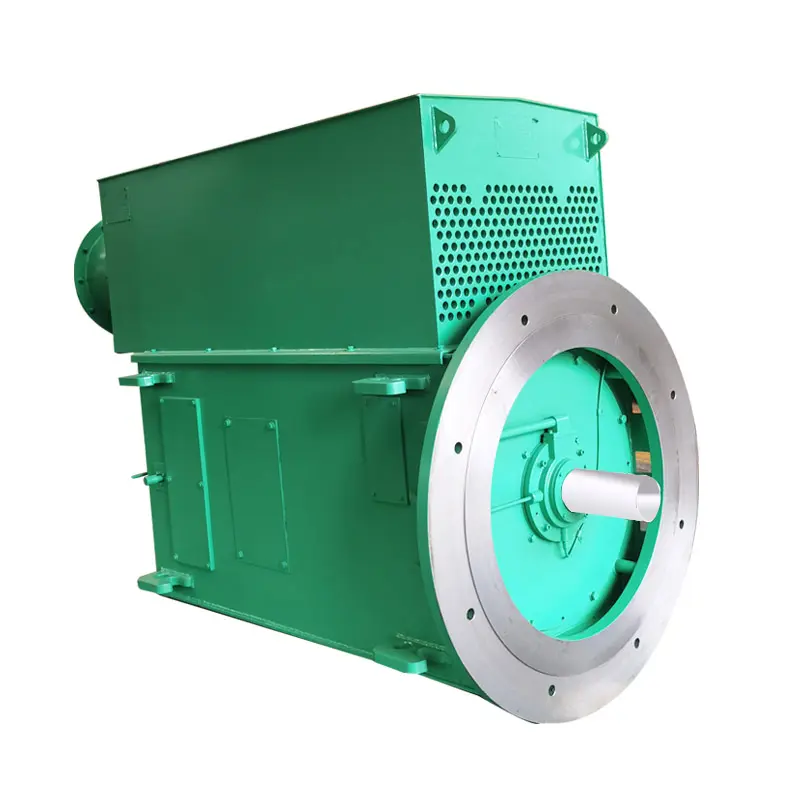

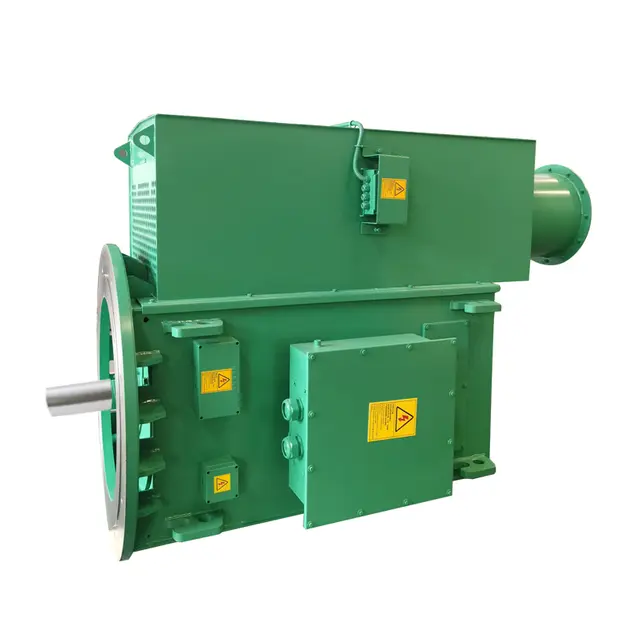

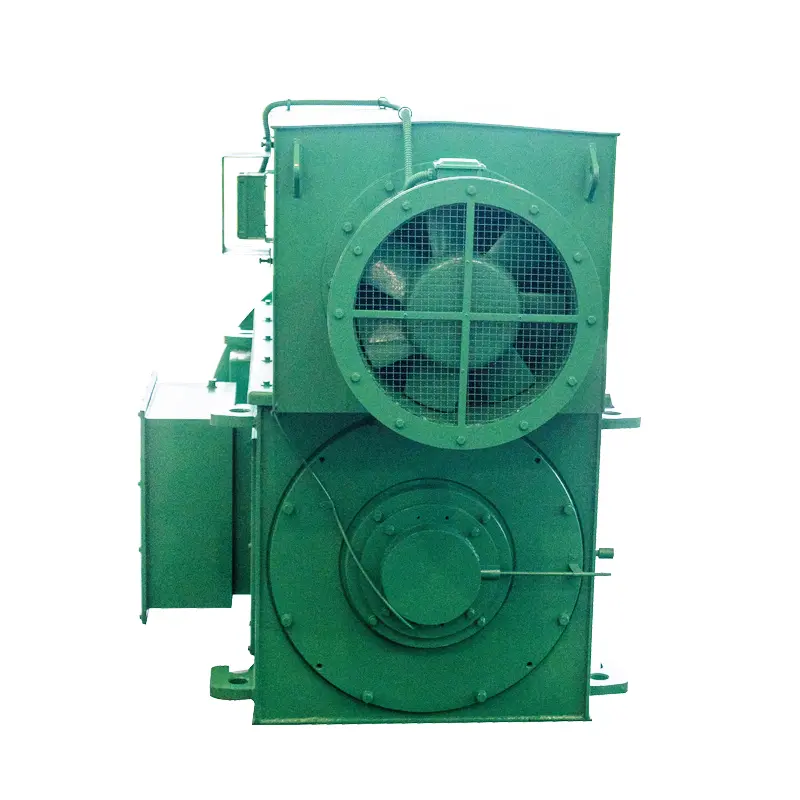

We're professional vertical induction motor manufacturers and suppliers in China, to buy or wholesale vertical motor from our factory. For quotation or if you have any questions, contact us now for customized asynchronous motor and price.
● high power index;
● low noise and vibration;
● high reliability;
● easy use;
● installation and maintenance.
This series of products is mainly suitable for general mechanical equipment such as fans, pumps, compressors, crushers, chip cutting machines, transportation machinery, etc. in industries such as petroleum, chemical, coal, power stations, metallurgy, transportation, textile, medicine, and grain processing, or other similar mechanical equipment.
Table 1 Technical data of YLKK series high voltage three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK315-2 | 200 | 25 | 2971 | 91.6 | 0.84 | 1.8 | 0.6 | 7.0 | 2322 |
YLKK315-2 | 220 | 27 | 2971 | 91.7 | 0.85 | 1.8 | 0.6 | 7.0 | 2385 |
YLKK315-2 | 250 | 31 | 2968 | 91.8 | 0.85 | 1.8 | 0.6 | 7.0 | 2466 |
YLKK315-2 | 280 | 34 | 2969 | 92.0 | 0.85 | 1.8 | 0.6 | 7.0 | 2530 |
YLKK355-2 | 315 | 39 | 2975 | 92.4 | 0.85 | 1.8 | 0.6 | 7.0 | 2570 |
YLKK355-2 | 355 | 43 | 2976 | 92.7 | 0.86 | 1.8 | 0.6 | 7.0 | 2635 |
YLKK355-2 | 400 | 48 | 2974 | 93.0 | 0.86 | 1.8 | 0.6 | 7.0 | 2715 |
YLKK355-2 | 450 | 54 | 2973 | 93.3 | 0.86 | 1.8 | 0.6 | 7.0 | 2795 |
Table 1 (continued) Technical data of YLKK series high voltage three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK400-2 | 500 | 60 | 2977 | 93.6 | 0.86 | 1.8 | 0.6 | 7.0 | 3305 |
YLKK400-2 | 560 | 67 | 2976 | 93.8 | 0.86 | 1.8 | 0.6 | 7.0 | 3395 |
YLKK400-2 | 630 | 75 | 2976 | 94.0 | 0.86 | 1.8 | 0.6 | 7.0 | 3513 |
YLKK400-2 | 710 | 83 | 2976 | 94.1 | 0.87 | 1.8 | 0.6 | 7.0 | 3630 |
YLKK450-2 | 800 | 94 | 2975 | 94.3 | 0.87 | 1.8 | 0.6 | 7.0 | 4359 |
YLKK450-2 | 900 | 105 | 2976 | 94.5 | 0.87 | 1.8 | 0.6 | 7.0 | 4514 |
YLKK450-2 | 1000 | 117 | 2977 | 94.6 | 0.87 | 1.8 | 0.6 | 7.0 | 4639 |
YLKK450-2 | 1120 | 131 | 2976 | 94.7 | 0.87 | 1.8 | 0.6 | 7.0 | 4779 |
YLKK500-2 | 1250 | 146 | 2981 | 94.9 | 0.87 | 1.8 | 0.6 | 7.0 | 5769 |
YLKK500-2 | 1400 | 163 | 2981 | 95.0 | 0.87 | 1.8 | 0.6 | 7.0 | 5929 |
YLKK500-2 | 1600 | 184 | 2980 | 95.1 | 0.88 | 1.8 | 0.6 | 7.0 | 6299 |
YLKK500-2 | 1800 | 207 | 2980 | 95.2 | 0.88 | 1.8 | 0.6 | 7.0 | 6465 |
YLKK560-2 | 2000 | 229 | 2981 | 95.4 | 0.88 | 1.8 | 0.6 | 7.0 | 8462 |
YLKK560-2 | 2240 | 256 | 2982 | 95.5 | 0.88 | 1.8 | 0.6 | 7.0 | 8715 |
YLKK560-2 | 2500 | 286 | 2983 | 95.6 | 0.88 | 1.8 | 0.6 | 7.0 | 8965 |
YLKK560-2 | 2800 | 320 | 2983 | 95.6 | 0.88 | 1.8 | 0.6 | 7.0 | 9433 |
YLKK630-2 | 3150 | 360 | 2984 | 95.7 | 0.88 | 1.8 | 0.6 | 7.0 | 10540 |
YLKK630-2 | 3550 | 401 | 2984 | 95.7 | 0.89 | 1.8 | 0.6 | 7.0 | 10780 |
YLKK630-2 | 4000 | 451 | 2984 | 95.8 | 0.89 | 1.8 | 0.6 | 7.0 | 11401 |
YLKK630-2 | 4500 | 508 | 2984 | 95.8 | 0.89 | 1.8 | 0.6 | 7.0 | 11880 |
YLKK315-4 | 200 | 25 | 1482 | 92.1 | 0.85 | 1.8 | 0.7 | 6.5 | 2395 |
YLKK315-4 | 220 | 27 | 1483 | 92.2 | 0.85 | 1.8 | 0.7 | 6.5 | 2450 |
YLKK315-4 | 250 | 31 | 1481 | 92.3 | 0.85 | 1.8 | 0.7 | 6.5 | 2505 |
YLKK315-4 | 280 | 34 | 1482 | 92.4 | 0.85 | 1.8 | 0.7 | 6.5 | 2559 |
YLKK355-4 | 315 | 38 | 1484 | 92.6 | 0.86 | 1.8 | 0.7 | 6.5 | 2625 |
YLKK355-4 | 355 | 43 | 1482 | 92.8 | 0.86 | 1.8 | 0.7 | 6.5 | 2709 |
YLKK355-4 | 400 | 48 | 1484 | 93.0 | 0.86 | 1.8 | 0.7 | 6.5 | 2793 |
YLKK355-4 | 450 | 54 | 1483 | 93.2 | 0.86 | 1.8 | 0.7 | 6.5 | 2815 |
YLKK400-4 | 500 | 60 | 1485 | 93.4 | 0.86 | 1.8 | 0.7 | 6.5 | 3435 |
YLKK400-4 | 560 | 67 | 1485 | 93.6 | 0.86 | 1.8 | 0.7 | 6.5 | 3530 |
YLKK400-4 | 630 | 75 | 1485 | 93.8 | 0.86 | 1.8 | 0.7 | 6.5 | 3640 |
YLKK400-4 | 710 | 85 | 1485 | 94.0 | 0.86 | 1.8 | 0.7 | 6.5 | 3757 |
YLKK450-4 | 800 | 94 | 1488 | 94.3 | 0.87 | 1.8 | 0.7 | 6.5 | 4540 |
YLKK450-4 | 900 | 105 | 1487 | 94.4 | 0.87 | 1.8 | 0.7 | 6.5 | 4800 |
YLKK450-4 | 1000 | 117 | 1488 | 94.5 | 0.87 | 1.8 | 0.7 | 6.5 | 5061 |
YLKK450-4 | 1120 | 131 | 1487 | 94.6 | 0.87 | 1.8 | 0.7 | 6.5 | 5180 |
Table 1 (continued) Technical data of YLKK series high voltage three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK500-4 | 1250 | 144 | 1487 | 94.8 | 0.88 | 1.8 | 0.7 | 6.5 | 6178 |
YLKK500-4 | 1400 | 161 | 1487 | 94.9 | 0.88 | 1.8 | 0.7 | 6.5 | 6353 |
YLKK500-4 | 1600 | 184 | 1486 | 95.0 | 0.88 | 1.8 | 0.7 | 6.5 | 6710 |
YLKK500-4 | 1800 | 207 | 1487 | 95.1 | 0.88 | 1.8 | 0.7 | 6.5 | 6895 |
YLKK560-4 | 2000 | 229 | 1492 | 95.3 | 0.88 | 1.8 | 0.6 | 6.5 | 7844 |
YLKK560-4 | 2240 | 257 | 1492 | 95.4 | 0.88 | 1.8 | 0.6 | 6.5 | 8280 |
YLKK560-4 | 2500 | 286 | 1491 | 95.5 | 0.88 | 1.8 | 0.6 | 6.5 | 8530 |
YLKK560-4 | 2800 | 320 | 1491 | 95.6 | 0.88 | 1.8 | 0.6 | 6.5 | 8983 |
YLKK630-4 | 3150 | 360 | 1491 | 95.8 | 0.88 | 1.8 | 0.6 | 6.5 | 11085 |
YLKK630-4 | 3550 | 400 | 1491 | 95.9 | 0.89 | 1.8 | 0.6 | 6.5 | 11595 |
YLKK630-4 | 4000 | 451 | 1491 | 95.9 | 0.89 | 1.8 | 0.6 | 6.5 | 12178 |
YLKK630-4 | 4500 | 507 | 1491 | 96.0 | 0.89 | 1.8 | 0.6 | 6.5 | 12745 |
YLKK315-6 | 160 | 21 | 986 | 91.4 | 0.82 | 1.8 | 0.7 | 5.5 | 2481 |
YLKK315-6 | 185 | 24 | 986 | 91.5 | 0.82 | 1.8 | 0.7 | 5.5 | 2547 |
YLKK315-6 | 200 | 26 | 985 | 91.8 | 0.82 | 1.8 | 0.7 | 5.5 | 2547 |
YLKK315-6 | 220 | 28 | 986 | 92.0 | 0.82 | 1.8 | 0.7 | 5.5 | 2604 |
YLKK355-6 | 250 | 32 | 986 | 92.2 | 0.82 | 1.8 | 0.7 | 5.5 | 2696 |
YLKK355-6 | 280 | 36 | 987 | 92.5 | 0.82 | 1.8 | 0.7 | 5.5 | 2786 |
YLKK355-6 | 315 | 39 | 987 | 92.8 | 0.83 | 1.8 | 0.7 | 5.5 | 2952 |
YLKK355-6 | 355 | 44 | 985 | 93.0 | 0.83 | 1.8 | 0.7 | 5.5 | 2952 |
YLKK400-6 | 400 | 50 | 989 | 93.1 | 0.83 | 1.8 | 0.7 | 5.5 | 3427 |
YLKK400-6 | 450 | 56 | 988 | 93.4 | 0.83 | 1.8 | 0.7 | 5.5 | 3630 |
YLKK400-6 | 500 | 62 | 988 | 93.7 | 0.83 | 1.8 | 0.7 | 5.5 | 3740 |
YLKK400-6 | 560 | 68 | 989 | 93.8 | 0.84 | 1.8 | 0.7 | 5.5 | 3842 |
YLKK450-6 | 630 | 77 | 989 | 93.9 | 0.84 | 1.8 | 0.7 | 5.5 | 4686 |
YLKK450-6 | 710 | 86 | 989 | 94.2 | 0.84 | 1.8 | 0.7 | 5.5 | 4971 |
YLKK450-6 | 800 | 97 | 989 | 94.4 | 0.84 | 1.8 | 0.7 | 5.5 | 5103 |
YLKK450-6 | 900 | 108 | 989 | 94.5 | 0.85 | 1.8 | 0.7 | 5.5 | 5245 |
YLKK500-6 | 1000 | 120 | 991 | 94.6 | 0.85 | 1.8 | 0.7 | 5.5 | 5959 |
YLKK500-6 | 1120 | 134 | 991 | 94.7 | 0.85 | 1.8 | 0.7 | 5.5 | 6291 |
YLKK500-6 | 1250 | 147 | 990 | 94.9 | 0.86 | 1.8 | 0.7 | 5.5 | 6623 |
YLKK500-6 | 1400 | 165 | 991 | 95.0 | 0.86 | 1.8 | 0.7 | 5.5 | 6955 |
YLKK560-6 | 1600 | 188 | 993 | 95.1 | 0.86 | 1.8 | 0.7 | 5.5 | 7749 |
YLKK560-6 | 1800 | 212 | 993 | 95.2 | 0.86 | 1.8 | 0.7 | 5.5 | 8243 |
YLKK560-6 | 2000 | 235 | 993 | 95.4 | 0.86 | 1.8 | 0.7 | 5.5 | 8669 |
YLKK560-6 | 2240 | 262 | 993 | 95.5 | 0.86 | 1.8 | 0.7 | 5.5 | 9103 |
YLKK630-6 | 2500 | 289 | 993 | 95.6 | 0.87 | 1.8 | 0.7 | 5.5 | 10591 |
Table 1 (continued) Technical data of YLKK series high voltage three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK630-6 | 2800 | 324 | 992 | 95.6 | 0.87 | 1.8 | 0.7 | 5.5 | 11089 |
YLKK630-6 | 3150 | 364 | 992 | 95.7 | 0.87 | 1.8 | 0.7 | 5.5 | 11610 |
YLKK630-6 | 3550 | 410 | 993 | 95.7 | 0.87 | 1.8 | 0.7 | 5.5 | 12123 |
YLKK355-8 | 200 | 27 | 739 | 91.9 | 0.78 | 1.8 | 0.8 | 5.5 | 2736 |
YLKK355-8 | 220 | 29 | 739 | 92.1 | 0.78 | 1.8 | 0.8 | 5.5 | 2816 |
YLKK355-8 | 250 | 33 | 740 | 92.2 | 0.79 | 1.8 | 0.8 | 5.5 | 2886 |
YLKK355-8 | 280 | 37 | 739 | 92.4 | 0.79 | 1.8 | 0.8 | 5.5 | 2986 |
YLKK400-8 | 315 | 41 | 739 | 92.7 | 0.79 | 1.8 | 0.8 | 5.5 | 3427 |
YLKK400-8 | 355 | 47 | 739 | 92.8 | 0.79 | 1.8 | 0.8 | 5.5 | 3527 |
YLKK400-8 | 400 | 52 | 739 | 93.0 | 0.80 | 1.8 | 0.8 | 5.5 | 3728 |
YLKK400-8 | 450 | 58 | 739 | 93.1 | 0.80 | 1.8 | 0.8 | 5.5 | 3829 |
YLKK450-8 | 500 | 64 | 741 | 93.6 | 0.80 | 1.8 | 0.8 | 5.5 | 4864 |
YLKK450-8 | 560 | 72 | 741 | 93.8 | 0.80 | 1.8 | 0.8 | 5.5 | 4956 |
YLKK450-8 | 630 | 79 | 741 | 93.9 | 0.82 | 1.8 | 0.8 | 5.5 | 5088 |
YLKK450-8 | 710 | 89 | 741 | 94.0 | 0.82 | 1.8 | 0.8 | 5.5 | 5230 |
YLKK500-8 | 800 | 100 | 743 | 94.2 | 0.82 | 1.8 | 0.8 | 5.5 | 6060 |
YLKK500-8 | 900 | 109 | 743 | 94.3 | 0.84 | 1.8 | 0.8 | 5.5 | 6229 |
YLKK500-8 | 1000 | 121 | 742 | 94.4 | 0.84 | 1.8 | 0.8 | 5.5 | 6567 |
YLKK500-8 | 1120 | 136 | 742 | 94.5 | 0.84 | 1.8 | 0.8 | 5.5 | 6900 |
YLKK560-8 | 1250 | 151 | 743 | 94.7 | 0.84 | 1.8 | 0.7 | 5.5 | 7768 |
YLKK560-8 | 1400 | 169 | 743 | 94.8 | 0.84 | 1.8 | 0.7 | 5.5 | 8197 |
YLKK560-8 | 1600 | 193 | 743 | 94.9 | 0.84 | 1.8 | 0.7 | 5.5 | 8608 |
YLKK560-8 | 1800 | 215 | 743 | 95.0 | 0.85 | 1.8 | 0.7 | 5.5 | 9016 |
YLKK630-8 | 2000 | 238 | 743 | 95.1 | 0.85 | 1.8 | 0.7 | 5.5 | 10273 |
YLKK630-8 | 2240 | 267 | 743 | 95.1 | 0.85 | 1.8 | 0.7 | 5.5 | 10786 |
YLKK630-8 | 2500 | 297 | 743 | 95.2 | 0.85 | 1.8 | 0.7 | 5.5 | 11533 |
YLKK630-8 | 2800 | 333 | 743 | 95.2 | 0.85 | 1.8 | 0.7 | 5.5 | 12063 |
YLKK400-10 | 250 | 35 | 591 | 91.5 | 0.75 | 1.8 | 0.8 | 5.5 | 3406 |
YLKK400-10 | 280 | 39 | 591 | 91.7 | 0.75 | 1.8 | 0.8 | 5.5 | 3505 |
YLKK400-10 | 315 | 43 | 591 | 92.1 | 0.76 | 1.8 | 0.8 | 5.5 | 3605 |
YLKK400-10 | 355 | 49 | 590 | 92.3 | 0.76 | 1.8 | 0.8 | 5.5 | 3803 |
YLKK450-10 | 400 | 55 | 592 | 92.6 | 0.76 | 1.8 | 0.8 | 5.5 | 4663 |
YLKK450-10 | 450 | 61 | 592 | 92.7 | 0.76 | 1.8 | 0.8 | 5.5 | 4910 |
YLKK450-10 | 500 | 66 | 592 | 93.0 | 0.78 | 1.8 | 0.8 | 5.5 | 5048 |
YLKK450-10 | 560 | 74 | 592 | 93.1 | 0.78 | 1.8 | 0.8 | 5.5 | 5186 |
YLKK500-10 | 630 | 83 | 594 | 93.2 | 0.78 | 1.8 | 0.8 | 5.5 | 5865 |
YLKK500-10 | 710 | 94 | 593 | 93.4 | 0.78 | 1.8 | 0.8 | 5.5 | 6190 |
YLKK500-10 | 800 | 103 | 593 | 93.7 | 0.80 | 1.8 | 0.8 | 5.5 | 6524 |
YLKK500-10 | 900 | 115 | 593 | 93.8 | 0.80 | 1.8 | 0.8 | 5.5 | 6864 |
Table 1 (continued) Technical data of YLKK series high voltage three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK560-10 | 1000 | 128 | 594 | 93.9 | 0.80 | 1.8 | 0.7 | 5.5 | 7421 |
YLKK560-10 | 1120 | 143 | 593 | 94.1 | 0.80 | 1.8 | 0.7 | 5.5 | 7807 |
YLKK560-10 | 1250 | 159 | 594 | 94.4 | 0.80 | 1.8 | 0.7 | 5.5 | 8187 |
YLKK560-10 | 1400 | 178 | 594 | 94.5 | 0.80 | 1.8 | 0.7 | 5.5 | 8598 |
YLKK630-10 | 1600 | 203 | 594 | 94.6 | 0.80 | 1.8 | 0.7 | 5.5 | 9755 |
YLKK630-10 | 1800 | 226 | 594 | 94.7 | 0.81 | 1.8 | 0.7 | 5.5 | 10213 |
YLKK630-10 | 2000 | 251 | 594 | 94.8 | 0.81 | 1.8 | 0.7 | 5.5 | 11102 |
YLKK630-10 | 2240 | 281 | 594 | 94.8 | 0.81 | 1.8 | 0.7 | 5.5 | 11511 |
YLKK450-12 | 315 | 46 | 494 | 92.1 | 0.72 | 1.8 | 0.8 | 5.5 | 4656 |
YLKK450-12 | 355 | 50 | 494 | 92.3 | 0.74 | 1.8 | 0.8 | 5.5 | 4774 |
YLKK450-12 | 400 | 56 | 494 | 92.6 | 0.74 | 1.8 | 0.8 | 5.5 | 5021 |
YLKK450-12 | 450 | 63 | 494 | 92.7 | 0.74 | 1.8 | 0.8 | 5.5 | 5159 |
YLKK500-12 | 500 | 70 | 494 | 93.1 | 0.74 | 1.8 | 0.8 | 5.5 | 5837 |
YLKK500-12 | 560 | 76 | 494 | 93.2 | 0.76 | 1.8 | 0.8 | 5.5 | 6181 |
YLKK500-12 | 630 | 85 | 494 | 93.3 | 0.76 | 1.8 | 0.8 | 5.5 | 6490 |
YLKK500-12 | 710 | 96 | 494 | 93.4 | 0.76 | 1.8 | 0.8 | 5.5 | 6824 |
YLKK560-12 | 800 | 108 | 494 | 93.7 | 0.76 | 1.8 | 0.7 | 5.5 | 7296 |
YLKK560-12 | 900 | 121 | 494 | 93.8 | 0.76 | 1.8 | 0.7 | 5.5 | 7668 |
YLKK560-12 | 1000 | 135 | 494 | 93.9 | 0.76 | 1.8 | 0.7 | 5.5 | 8073 |
YLKK560-12 | 1120 | 151 | 494 | 94.0 | 0.76 | 1.8 | 0.7 | 5.5 | 8465 |
YLKK630-12 | 1250 | 164 | 495 | 94.1 | 0.78 | 1.8 | 0.7 | 5.5 | 9561 |
YLKK630-12 | 1400 | 184 | 495 | 94.1 | 0.78 | 1.8 | 0.7 | 5.5 | 10068 |
YLKK630-12 | 1600 | 210 | 495 | 94.2 | 0.78 | 1.8 | 0.7 | 5.5 | 10514 |
YLKK630-12 | 1800 | 236 | 495 | 94.2 | 0.78 | 1.8 | 0.7 | 5.5 | 11014 |
Table 2 Technical data of YLKK series high voltage three-phase asynchronous motor (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK355-2 | 250 | 18 | 2977 | 92.0 | 0.85 | 1.8 | 0.6 | 7.0 | 2495 |
YLKK355-2 | 280 | 21 | 2975 | 92.1 | 0.85 | 1.8 | 0.6 | 7.0 | 2584 |
YLKK355-2 | 315 | 23 | 2976 | 92.4 | 0.85 | 1.8 | 0.6 | 7.0 | 2609 |
YLKK355-2 | 355 | 26 | 2975 | 92.8 | 0.86 | 1.8 | 0.6 | 7.0 | 2695 |
YLKK400-2 | 400 | 29 | 2977 | 93.1 | 0.86 | 1.8 | 0.6 | 7.0 | 3149 |
YLKK400-2 | 450 | 32 | 2976 | 93.3 | 0.86 | 1.8 | 0.6 | 7.0 | 3253 |
YLKK400-2 | 500 | 36 | 2976 | 93.4 | 0.86 | 1.8 | 0.6 | 7.0 | 3358 |
YLKK400-2 | 560 | 40 | 2977 | 93.6 | 0.86 | 1.8 | 0.6 | 7.0 | 3466 |
YLKK450-2 | 630 | 45 | 2978 | 93.7 | 0.87 | 1.8 | 0.6 | 7.0 | 4186 |
YLKK450-2 | 710 | 50 | 2979 | 93.8 | 0.87 | 1.8 | 0.6 | 7.0 | 4339 |
YLKK450-2 | 800 | 56 | 2978 | 94.0 | 0.87 | 1.8 | 0.6 | 7.0 | 4482 |
YLKK450-2 | 900 | 63 | 2977 | 94.1 | 0.87 | 1.8 | 0.6 | 7.0 | 4635 |
YLKK500-2 | 1000 | 70 | 2983 | 94.2 | 0.87 | 1.8 | 0.6 | 7.0 | 5493 |
YLKK500-2 | 1120 | 79 | 2983 | 94.4 | 0.87 | 1.8 | 0.6 | 7.0 | 5669 |
YLKK500-2 | 1250 | 88 | 2982 | 94.6 | 0.87 | 1.8 | 0.6 | 7.0 | 6005 |
YLKK500-2 | 1400 | 98 | 2983 | 94.8 | 0.87 | 1.8 | 0.6 | 7.0 | 6171 |
YLKK560-2 | 1600 | 111 | 2983 | 94.9 | 0.88 | 1.8 | 0.6 | 7.0 | 8169 |
YLKK560-2 | 1800 | 124 | 2982 | 95.0 | 0.88 | 1.8 | 0.6 | 7.0 | 8398 |
YLKK560-2 | 2000 | 138 | 2983 | 95.2 | 0.88 | 1.8 | 0.6 | 7.0 | 8641 |
YLKK560-2 | 2240 | 154 | 2983 | 95.4 | 0.88 | 1.8 | 0.6 | 7.0 | 9082 |
YLKK630-2 | 2500 | 172 | 2984 | 95.4 | 0.88 | 1.8 | 0.6 | 7.0 | 9816 |
YLKK630-2 | 2800 | 190 | 2984 | 95.5 | 0.89 | 1.8 | 0.6 | 7.0 | 10350 |
YLKK630-2 | 3150 | 214 | 2985 | 95.6 | 0.89 | 1.8 | 0.6 | 7.0 | 10631 |
YLKK630-2 | 3550 | 241 | 2985 | 95.6 | 0.89 | 1.8 | 0.6 | 7.0 | 11154 |
YLKK355-4 | 250 | 19 | 1484 | 91.6 | 0.83 | 1.8 | 0.7 | 6.5 | 2498 |
YLKK355-4 | 280 | 21 | 1484 | 91.8 | 0.83 | 1.8 | 0.7 | 6.5 | 2593 |
YLKK355-4 | 315 | 24 | 1484 | 92.1 | 0.83 | 1.8 | 0.7 | 6.5 | 2673 |
YLKK355-4 | 355 | 26 | 1483 | 92.3 | 0.86 | 1.8 | 0.7 | 6.5 | 2753 |
YLKK400-4 | 400 | 29 | 1487 | 92.5 | 0.86 | 1.8 | 0.7 | 6.5 | 3271 |
YLKK400-4 | 450 | 33 | 1486 | 92.9 | 0.86 | 1.8 | 0.7 | 6.5 | 3370 |
YLKK400-4 | 500 | 36 | 1486 | 93.0 | 0.86 | 1.8 | 0.7 | 6.5 | 3500 |
YLKK400-4 | 560 | 40 | 1487 | 93.3 | 0.86 | 1.8 | 0.7 | 6.5 | 3602 |
YLKK450-4 | 630 | 45 | 1489 | 93.5 | 0.86 | 1.8 | 0.7 | 6.5 | 4503 |
YLKK450-4 | 710 | 51 | 1488 | 94.1 | 0.86 | 1.8 | 0.7 | 6.5 | 4632 |
YLKK450-4 | 800 | 56 | 1488 | 94.3 | 0.87 | 1.8 | 0.7 | 6.5 | 4743 |
YLKK450-4 | 900 | 63 | 1488 | 94.4 | 0.87 | 1.8 | 0.7 | 6.5 | 4980 |
YLKK500-4 | 1000 | 70 | 1488 | 94.5 | 0.87 | 1.8 | 0.7 | 6.5 | 5935 |
YLKK500-4 | 1120 | 79 | 1488 | 94.6 | 0.87 | 1.8 | 0.7 | 6.5 | 6105 |
Table 2 (Continued) YLKK series high voltage three-phase asynchronous motor technical data (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK500-4 | 1250 | 87 | 1489 | 94.7 | 0.88 | 1.8 | 0.7 | 6.5 | 6271 |
YLKK500-4 | 1400 | 97 | 1487 | 95.0 | 0.88 | 1.8 | 0.7 | 6.5 | 6557 |
YLKK560-4 | 1600 | 110 | 1492 | 95.1 | 0.88 | 1.8 | 0.7 | 6.5 | 7482 |
YLKK560-4 | 1800 | 124 | 1492 | 95.2 | 0.88 | 1.8 | 0.7 | 6.5 | 7919 |
YLKK560-4 | 2000 | 138 | 1491 | 95.4 | 0.88 | 1.8 | 0.7 | 6.5 | 8353 |
YLKK560-4 | 2240 | 154 | 1491 | 95.5 | 0.88 | 1.8 | 0.7 | 6.5 | 8780 |
YLKK630-4 | 2500 | 172 | 1491 | 95.5 | 0.88 | 1.8 | 0.6 | 6.5 | 10318 |
YLKK630-4 | 2800 | 190 | 1492 | 95.6 | 0.89 | 1.8 | 0.6 | 6.5 | 10828 |
YLKK630-4 | 3150 | 214 | 1491 | 95.7 | 0.89 | 1.8 | 0.6 | 6.5 | 11368 |
YLKK630-4 | 3550 | 241 | 1491 | 95.7 | 0.89 | 1.8 | 0.6 | 6.5 | 11896 |
YLKK355-6 | 200 | 16 | 987 | 91.2 | 0.80 | 1.8 | 0.7 | 5.5 | 2630 |
YLKK355-6 | 220 | 17 | 988 | 91.3 | 0.80 | 1.8 | 0.7 | 5.5 | 2640 |
YLKK355-6 | 250 | 20 | 987 | 91.5 | 0.80 | 1.8 | 0.7 | 5.5 | 2720 |
YLKK355-6 | 280 | 22 | 986 | 91.7 | 0.80 | 1.8 | 0.7 | 5.5 | 2800 |
YLKK400-6 | 315 | 24 | 988 | 92.0 | 0.82 | 1.8 | 0.7 | 5.5 | 3306 |
YLKK400-6 | 355 | 27 | 988 | 92.2 | 0.83 | 1.8 | 0.7 | 5.5 | 3402 |
YLKK400-6 | 400 | 30 | 987 | 92.4 | 0.83 | 1.8 | 0.7 | 5.5 | 3595 |
YLKK400-6 | 450 | 34 | 987 | 92.6 | 0.83 | 1.8 | 0.7 | 5.5 | 3691 |
YLKK450-6 | 500 | 37 | 988 | 93.0 | 0.83 | 1.8 | 0.7 | 5.5 | 4418 |
YLKK450-6 | 560 | 41 | 989 | 93.3 | 0.84 | 1.8 | 0.7 | 5.5 | 4709 |
YLKK450-6 | 630 | 46 | 989 | 93.6 | 0.84 | 1.8 | 0.7 | 5.5 | 4801 |
YLKK450-6 | 710 | 52 | 989 | 93.8 | 0.84 | 1.8 | 0.7 | 5.5 | 4934 |
YLKK500-6 | 800 | 58 | 990 | 94.0 | 0.84 | 1.8 | 0.7 | 5.5 | 5739 |
YLKK500-6 | 900 | 65 | 990 | 94.2 | 0.85 | 1.8 | 0.7 | 5.5 | 5902 |
YLKK500-6 | 1000 | 72 | 990 | 94.4 | 0.85 | 1.8 | 0.7 | 5.5 | 6224 |
YLKK500-6 | 1120 | 80 | 990 | 94.6 | 0.85 | 1.8 | 0.7 | 5.5 | 6466 |
YLKK560-6 | 1250 | 89 | 993 | 94.7 | 0.86 | 1.8 | 0.7 | 5.5 | 7481 |
YLKK560-6 | 1400 | 99 | 993 | 95.1 | 0.86 | 1.8 | 0.7 | 5.5 | 7872 |
YLKK560-6 | 1600 | 113 | 993 | 95.2 | 0.86 | 1.8 | 0.7 | 5.5 | 8272 |
YLKK560-6 | 1800 | 127 | 993 | 95.3 | 0.86 | 1.8 | 0.7 | 5.5 | 8712 |
YLKK630-6 | 2000 | 141 | 993 | 95.4 | 0.86 | 1.8 | 0.6 | 5.5 | 9958 |
YLKK630-6 | 2240 | 158 | 993 | 95.4 | 0.86 | 1.8 | 0.6 | 5.5 | 10444 |
YLKK630-6 | 2500 | 174 | 993 | 95.5 | 0.87 | 1.8 | 0.6 | 5.5 | 10943 |
YLKK630-6 | 2800 | 194 | 993 | 95.6 | 0.87 | 1.8 | 0.6 | 5.5 | 11319 |
YLKK400-8 | 250 | 21 | 739 | 91.4 | 0.75 | 1.8 | 0.7 | 5.5 | 3276 |
YLKK400-8 | 280 | 23 | 739 | 91.6 | 0.76 | 1.8 | 0.7 | 5.5 | 3369 |
YLKK400-8 | 315 | 26 | 738 | 92.0 | 0.77 | 1.8 | 0.7 | 5.5 | 3559 |
YLKK400-8 | 355 | 29 | 738 | 92.4 | 0.77 | 1.8 | 0.7 | 5.5 | 3655 |
YLKK450-8 | 400 | 32 | 740 | 92.5 | 0.78 | 1.8 | 0.7 | 5.5 | 4640 |
Table 2 (Continued) YLKK series high voltage three-phase asynchronous motor technical data (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK450-8 | 450 | 36 | 740 | 92.7 | 0.78 | 1.8 | 0.7 | 5.5 | 4744 |
YLKK450-8 | 500 | 39 | 740 | 93.1 | 0.79 | 1.8 | 0.7 | 5.5 | 4877 |
YLKK450-8 | 560 | 44 | 740 | 93.3 | 0.79 | 1.8 | 0.7 | 5.5 | 5019 |
YLKK500-8 | 630 | 47 | 743 | 93.8 | 0.82 | 1.8 | 0.7 | 5.5 | 5808 |
YLKK500-8 | 710 | 53 | 743 | 94.0 | 0.82 | 1.8 | 0.7 | 5.5 | 6130 |
YLKK500-8 | 800 | 60 | 743 | 94.2 | 0.82 | 1.8 | 0.7 | 5.5 | 6453 |
YLKK500-8 | 900 | 67 | 743 | 94.3 | 0.82 | 1.8 | 0.7 | 5.5 | 6771 |
YLKK560-8 | 1000 | 75 | 743 | 94.5 | 0.82 | 1.8 | 0.7 | 5.5 | 7427 |
YLKK560-8 | 1120 | 82 | 743 | 94.7 | 0.83 | 1.8 | 0.7 | 5.5 | 7831 |
YLKK560-8 | 1250 | 92 | 743 | 94.8 | 0.83 | 1.8 | 0.7 | 5.5 | 8223 |
YLKK560-8 | 1400 | 103 | 743 | 94.9 | 0.83 | 1.8 | 0.7 | 5.5 | 8616 |
YLKK630-8 | 1600 | 117 | 744 | 94.9 | 0.83 | 1.8 | 0.7 | 5.5 | 10024 |
YLKK630-8 | 1800 | 130 | 743 | 95.0 | 0.84 | 1.8 | 0.7 | 5.5 | 10472 |
YLKK630-8 | 2000 | 145 | 744 | 95.1 | 0.84 | 1.8 | 0.7 | 5.5 | 10518 |
YLKK630-8 | 2240 | 162 | 743 | 95.1 | 0.84 | 1.8 | 0.7 | 5.5 | 10973 |
YLKK400-10 | 200 | 18 | 592 | 91.1 | 0.72 | 1.8 | 0.7 | 5.5 | 3352 |
YLKK400-10 | 220 | 19 | 592 | 91.2 | 0.72 | 1.8 | 0.7 | 5.5 | 3458 |
YLKK400-10 | 250 | 22 | 592 | 91.3 | 0.72 | 1.8 | 0.7 | 5.5 | 3555 |
YLKK400-10 | 280 | 24 | 591 | 91.5 | 0.74 | 1.8 | 0.7 | 5.5 | 3470 |
YLKK450-10 | 315 | 27 | 592 | 91.7 | 0.74 | 1.8 | 0.7 | 5.5 | 4564 |
YLKK450-10 | 355 | 30 | 592 | 92.1 | 0.75 | 1.8 | 0.7 | 5.5 | 4811 |
YLKK450-10 | 400 | 33 | 592 | 92.3 | 0.75 | 1.8 | 0.7 | 5.5 | 4939 |
YLKK450-10 | 450 | 37 | 592 | 92.5 | 0.76 | 1.8 | 0.7 | 5.5 | 5077 |
YLKK500-10 | 500 | 40 | 594 | 92.7 | 0.77 | 1.8 | 0.7 | 5.5 | 5766 |
YLKK500-10 | 560 | 45 | 593 | 92.9 | 0.78 | 1.8 | 0.7 | 5.5 | 6076 |
YLKK500-10 | 630 | 50 | 593 | 93.1 | 0.78 | 1.8 | 0.7 | 5.5 | 6395 |
YLKK500-10 | 710 | 56 | 593 | 93.3 | 0.78 | 1.8 | 0.7 | 5.5 | 6710 |
YLKK560-10 | 800 | 63 | 594 | 93.8 | 0.78 | 1.8 | 0.7 | 5.5 | 7121 |
YLKK560-10 | 900 | 69 | 594 | 94.0 | 0.80 | 1.8 | 0.7 | 5.5 | 7487 |
YLKK560-10 | 1000 | 77 | 594 | 94.1 | 0.80 | 1.8 | 0.7 | 5.5 | 7877 |
YLKK560-10 | 1120 | 86 | 594 | 94.2 | 0.80 | 1.8 | 0.7 | 5.5 | 8268 |
YLKK630-10 | 1250 | 96 | 595 | 94.2 | 0.80 | 1.8 | 0.7 | 5.5 | 9440 |
YLKK630-10 | 1400 | 107 | 594 | 94.3 | 0.80 | 1.8 | 0.7 | 5.5 | 9919 |
YLKK630-10 | 1600 | 121 | 594 | 94.4 | 0.81 | 1.8 | 0.7 | 5.5 | 10358 |
YLKK630-10 | 1800 | 136 | 594 | 94.4 | 0.81 | 1.8 | 0.7 | 5.5 | 10845 |
YLKK450-12 | 250 | 22 | 494 | 91.1 | 0.72 | 1.8 | 0.7 | 5.5 | 4564 |
YLKK450-12 | 280 | 25 | 494 | 91.3 | 0.72 | 1.8 | 0.7 | 5.5 | 4642 |
YLKK450-12 | 315 | 28 | 494 | 91.5 | 0.72 | 1.8 | 0.7 | 5.5 | 4929 |
YLKK450-12 | 355 | 31 | 493 | 91.8 | 0.72 | 1.8 | 0.7 | 5.5 | 5047 |
Table 2 (Continued) YLKK series high voltage three-phase asynchronous motor technical data (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK500-12 | 400 | 34 | 495 | 92.0 | 0.73 | 1.8 | 0.7 | 5.5 | 5750 |
YLKK500-12 | 450 | 39 | 495 | 92.2 | 0.73 | 1.8 | 0.7 | 5.5 | 6069 |
YLKK500-12 | 500 | 43 | 495 | 92.5 | 0.73 | 1.8 | 0.7 | 5.5 | 6378 |
YLKK500-12 | 560 | 47 | 494 | 92.9 | 0.74 | 1.8 | 0.7 | 5.5 | 6697 |
YLKK560-12 | 630 | 53 | 494 | 93.1 | 0.74 | 1.8 | 0.7 | 5.5 | 7184 |
YLKK560-12 | 710 | 59 | 494 | 93.3 | 0.74 | 1.8 | 0.7 | 5.5 | 7386 |
YLKK560-12 | 800 | 67 | 494 | 93.8 | 0.74 | 1.8 | 0.7 | 5.5 | 7763 |
YLKK560-12 | 900 | 75 | 494 | 93.8 | 0.74 | 1.8 | 0.7 | 5.5 | 8140 |
YLKK630-12 | 1000 | 83 | 495 | 93.8 | 0.74 | 1.8 | 0.7 | 5.5 | 9424 |
YLKK630-12 | 1120 | 92 | 495 | 93.9 | 0.75 | 1.8 | 0.7 | 5.5 | 9911 |
YLKK630-12 | 1250 | 102 | 495 | 94.0 | 0.75 | 1.8 | 0.7 | 5.5 | 10103 |
YLKK630-12 | 1400 | 115 | 495 | 94.0 | 0.75 | 1.8 | 0.7 | 5.5 | 10586 |
As one of China professional large electric motor manufacturers, we focus on providing high-quality vertical induction motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M2 which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about vertical induction motor, vertical motor, asynchronous motor,air cooling motor,motor air cooled, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
We're professional vertical induction motor manufacturers and suppliers in China, to buy or wholesale vertical motor from our factory. For quotation or if you have any questions, contact us now for customized asynchronous motor and price.
● high power index;
● low noise and vibration;
● high reliability;
● easy use;
● installation and maintenance.
This series of products is mainly suitable for general mechanical equipment such as fans, pumps, compressors, crushers, chip cutting machines, transportation machinery, etc. in industries such as petroleum, chemical, coal, power stations, metallurgy, transportation, textile, medicine, and grain processing, or other similar mechanical equipment.
Table 1 Technical data of YLKK series high voltage three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK315-2 | 200 | 25 | 2971 | 91.6 | 0.84 | 1.8 | 0.6 | 7.0 | 2322 |
YLKK315-2 | 220 | 27 | 2971 | 91.7 | 0.85 | 1.8 | 0.6 | 7.0 | 2385 |
YLKK315-2 | 250 | 31 | 2968 | 91.8 | 0.85 | 1.8 | 0.6 | 7.0 | 2466 |
YLKK315-2 | 280 | 34 | 2969 | 92.0 | 0.85 | 1.8 | 0.6 | 7.0 | 2530 |
YLKK355-2 | 315 | 39 | 2975 | 92.4 | 0.85 | 1.8 | 0.6 | 7.0 | 2570 |
YLKK355-2 | 355 | 43 | 2976 | 92.7 | 0.86 | 1.8 | 0.6 | 7.0 | 2635 |
YLKK355-2 | 400 | 48 | 2974 | 93.0 | 0.86 | 1.8 | 0.6 | 7.0 | 2715 |
YLKK355-2 | 450 | 54 | 2973 | 93.3 | 0.86 | 1.8 | 0.6 | 7.0 | 2795 |
Table 1 (continued) Technical data of YLKK series high voltage three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK400-2 | 500 | 60 | 2977 | 93.6 | 0.86 | 1.8 | 0.6 | 7.0 | 3305 |
YLKK400-2 | 560 | 67 | 2976 | 93.8 | 0.86 | 1.8 | 0.6 | 7.0 | 3395 |
YLKK400-2 | 630 | 75 | 2976 | 94.0 | 0.86 | 1.8 | 0.6 | 7.0 | 3513 |
YLKK400-2 | 710 | 83 | 2976 | 94.1 | 0.87 | 1.8 | 0.6 | 7.0 | 3630 |
YLKK450-2 | 800 | 94 | 2975 | 94.3 | 0.87 | 1.8 | 0.6 | 7.0 | 4359 |
YLKK450-2 | 900 | 105 | 2976 | 94.5 | 0.87 | 1.8 | 0.6 | 7.0 | 4514 |
YLKK450-2 | 1000 | 117 | 2977 | 94.6 | 0.87 | 1.8 | 0.6 | 7.0 | 4639 |
YLKK450-2 | 1120 | 131 | 2976 | 94.7 | 0.87 | 1.8 | 0.6 | 7.0 | 4779 |
YLKK500-2 | 1250 | 146 | 2981 | 94.9 | 0.87 | 1.8 | 0.6 | 7.0 | 5769 |
YLKK500-2 | 1400 | 163 | 2981 | 95.0 | 0.87 | 1.8 | 0.6 | 7.0 | 5929 |
YLKK500-2 | 1600 | 184 | 2980 | 95.1 | 0.88 | 1.8 | 0.6 | 7.0 | 6299 |
YLKK500-2 | 1800 | 207 | 2980 | 95.2 | 0.88 | 1.8 | 0.6 | 7.0 | 6465 |
YLKK560-2 | 2000 | 229 | 2981 | 95.4 | 0.88 | 1.8 | 0.6 | 7.0 | 8462 |
YLKK560-2 | 2240 | 256 | 2982 | 95.5 | 0.88 | 1.8 | 0.6 | 7.0 | 8715 |
YLKK560-2 | 2500 | 286 | 2983 | 95.6 | 0.88 | 1.8 | 0.6 | 7.0 | 8965 |
YLKK560-2 | 2800 | 320 | 2983 | 95.6 | 0.88 | 1.8 | 0.6 | 7.0 | 9433 |
YLKK630-2 | 3150 | 360 | 2984 | 95.7 | 0.88 | 1.8 | 0.6 | 7.0 | 10540 |
YLKK630-2 | 3550 | 401 | 2984 | 95.7 | 0.89 | 1.8 | 0.6 | 7.0 | 10780 |
YLKK630-2 | 4000 | 451 | 2984 | 95.8 | 0.89 | 1.8 | 0.6 | 7.0 | 11401 |
YLKK630-2 | 4500 | 508 | 2984 | 95.8 | 0.89 | 1.8 | 0.6 | 7.0 | 11880 |
YLKK315-4 | 200 | 25 | 1482 | 92.1 | 0.85 | 1.8 | 0.7 | 6.5 | 2395 |
YLKK315-4 | 220 | 27 | 1483 | 92.2 | 0.85 | 1.8 | 0.7 | 6.5 | 2450 |
YLKK315-4 | 250 | 31 | 1481 | 92.3 | 0.85 | 1.8 | 0.7 | 6.5 | 2505 |
YLKK315-4 | 280 | 34 | 1482 | 92.4 | 0.85 | 1.8 | 0.7 | 6.5 | 2559 |
YLKK355-4 | 315 | 38 | 1484 | 92.6 | 0.86 | 1.8 | 0.7 | 6.5 | 2625 |
YLKK355-4 | 355 | 43 | 1482 | 92.8 | 0.86 | 1.8 | 0.7 | 6.5 | 2709 |
YLKK355-4 | 400 | 48 | 1484 | 93.0 | 0.86 | 1.8 | 0.7 | 6.5 | 2793 |
YLKK355-4 | 450 | 54 | 1483 | 93.2 | 0.86 | 1.8 | 0.7 | 6.5 | 2815 |
YLKK400-4 | 500 | 60 | 1485 | 93.4 | 0.86 | 1.8 | 0.7 | 6.5 | 3435 |
YLKK400-4 | 560 | 67 | 1485 | 93.6 | 0.86 | 1.8 | 0.7 | 6.5 | 3530 |
YLKK400-4 | 630 | 75 | 1485 | 93.8 | 0.86 | 1.8 | 0.7 | 6.5 | 3640 |
YLKK400-4 | 710 | 85 | 1485 | 94.0 | 0.86 | 1.8 | 0.7 | 6.5 | 3757 |
YLKK450-4 | 800 | 94 | 1488 | 94.3 | 0.87 | 1.8 | 0.7 | 6.5 | 4540 |
YLKK450-4 | 900 | 105 | 1487 | 94.4 | 0.87 | 1.8 | 0.7 | 6.5 | 4800 |
YLKK450-4 | 1000 | 117 | 1488 | 94.5 | 0.87 | 1.8 | 0.7 | 6.5 | 5061 |
YLKK450-4 | 1120 | 131 | 1487 | 94.6 | 0.87 | 1.8 | 0.7 | 6.5 | 5180 |
Table 1 (continued) Technical data of YLKK series high voltage three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK500-4 | 1250 | 144 | 1487 | 94.8 | 0.88 | 1.8 | 0.7 | 6.5 | 6178 |
YLKK500-4 | 1400 | 161 | 1487 | 94.9 | 0.88 | 1.8 | 0.7 | 6.5 | 6353 |
YLKK500-4 | 1600 | 184 | 1486 | 95.0 | 0.88 | 1.8 | 0.7 | 6.5 | 6710 |
YLKK500-4 | 1800 | 207 | 1487 | 95.1 | 0.88 | 1.8 | 0.7 | 6.5 | 6895 |
YLKK560-4 | 2000 | 229 | 1492 | 95.3 | 0.88 | 1.8 | 0.6 | 6.5 | 7844 |
YLKK560-4 | 2240 | 257 | 1492 | 95.4 | 0.88 | 1.8 | 0.6 | 6.5 | 8280 |
YLKK560-4 | 2500 | 286 | 1491 | 95.5 | 0.88 | 1.8 | 0.6 | 6.5 | 8530 |
YLKK560-4 | 2800 | 320 | 1491 | 95.6 | 0.88 | 1.8 | 0.6 | 6.5 | 8983 |
YLKK630-4 | 3150 | 360 | 1491 | 95.8 | 0.88 | 1.8 | 0.6 | 6.5 | 11085 |
YLKK630-4 | 3550 | 400 | 1491 | 95.9 | 0.89 | 1.8 | 0.6 | 6.5 | 11595 |
YLKK630-4 | 4000 | 451 | 1491 | 95.9 | 0.89 | 1.8 | 0.6 | 6.5 | 12178 |
YLKK630-4 | 4500 | 507 | 1491 | 96.0 | 0.89 | 1.8 | 0.6 | 6.5 | 12745 |
YLKK315-6 | 160 | 21 | 986 | 91.4 | 0.82 | 1.8 | 0.7 | 5.5 | 2481 |
YLKK315-6 | 185 | 24 | 986 | 91.5 | 0.82 | 1.8 | 0.7 | 5.5 | 2547 |
YLKK315-6 | 200 | 26 | 985 | 91.8 | 0.82 | 1.8 | 0.7 | 5.5 | 2547 |
YLKK315-6 | 220 | 28 | 986 | 92.0 | 0.82 | 1.8 | 0.7 | 5.5 | 2604 |
YLKK355-6 | 250 | 32 | 986 | 92.2 | 0.82 | 1.8 | 0.7 | 5.5 | 2696 |
YLKK355-6 | 280 | 36 | 987 | 92.5 | 0.82 | 1.8 | 0.7 | 5.5 | 2786 |
YLKK355-6 | 315 | 39 | 987 | 92.8 | 0.83 | 1.8 | 0.7 | 5.5 | 2952 |
YLKK355-6 | 355 | 44 | 985 | 93.0 | 0.83 | 1.8 | 0.7 | 5.5 | 2952 |
YLKK400-6 | 400 | 50 | 989 | 93.1 | 0.83 | 1.8 | 0.7 | 5.5 | 3427 |
YLKK400-6 | 450 | 56 | 988 | 93.4 | 0.83 | 1.8 | 0.7 | 5.5 | 3630 |
YLKK400-6 | 500 | 62 | 988 | 93.7 | 0.83 | 1.8 | 0.7 | 5.5 | 3740 |
YLKK400-6 | 560 | 68 | 989 | 93.8 | 0.84 | 1.8 | 0.7 | 5.5 | 3842 |
YLKK450-6 | 630 | 77 | 989 | 93.9 | 0.84 | 1.8 | 0.7 | 5.5 | 4686 |
YLKK450-6 | 710 | 86 | 989 | 94.2 | 0.84 | 1.8 | 0.7 | 5.5 | 4971 |
YLKK450-6 | 800 | 97 | 989 | 94.4 | 0.84 | 1.8 | 0.7 | 5.5 | 5103 |
YLKK450-6 | 900 | 108 | 989 | 94.5 | 0.85 | 1.8 | 0.7 | 5.5 | 5245 |
YLKK500-6 | 1000 | 120 | 991 | 94.6 | 0.85 | 1.8 | 0.7 | 5.5 | 5959 |
YLKK500-6 | 1120 | 134 | 991 | 94.7 | 0.85 | 1.8 | 0.7 | 5.5 | 6291 |
YLKK500-6 | 1250 | 147 | 990 | 94.9 | 0.86 | 1.8 | 0.7 | 5.5 | 6623 |
YLKK500-6 | 1400 | 165 | 991 | 95.0 | 0.86 | 1.8 | 0.7 | 5.5 | 6955 |
YLKK560-6 | 1600 | 188 | 993 | 95.1 | 0.86 | 1.8 | 0.7 | 5.5 | 7749 |
YLKK560-6 | 1800 | 212 | 993 | 95.2 | 0.86 | 1.8 | 0.7 | 5.5 | 8243 |
YLKK560-6 | 2000 | 235 | 993 | 95.4 | 0.86 | 1.8 | 0.7 | 5.5 | 8669 |
YLKK560-6 | 2240 | 262 | 993 | 95.5 | 0.86 | 1.8 | 0.7 | 5.5 | 9103 |
YLKK630-6 | 2500 | 289 | 993 | 95.6 | 0.87 | 1.8 | 0.7 | 5.5 | 10591 |
Table 1 (continued) Technical data of YLKK series high voltage three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK630-6 | 2800 | 324 | 992 | 95.6 | 0.87 | 1.8 | 0.7 | 5.5 | 11089 |
YLKK630-6 | 3150 | 364 | 992 | 95.7 | 0.87 | 1.8 | 0.7 | 5.5 | 11610 |
YLKK630-6 | 3550 | 410 | 993 | 95.7 | 0.87 | 1.8 | 0.7 | 5.5 | 12123 |
YLKK355-8 | 200 | 27 | 739 | 91.9 | 0.78 | 1.8 | 0.8 | 5.5 | 2736 |
YLKK355-8 | 220 | 29 | 739 | 92.1 | 0.78 | 1.8 | 0.8 | 5.5 | 2816 |
YLKK355-8 | 250 | 33 | 740 | 92.2 | 0.79 | 1.8 | 0.8 | 5.5 | 2886 |
YLKK355-8 | 280 | 37 | 739 | 92.4 | 0.79 | 1.8 | 0.8 | 5.5 | 2986 |
YLKK400-8 | 315 | 41 | 739 | 92.7 | 0.79 | 1.8 | 0.8 | 5.5 | 3427 |
YLKK400-8 | 355 | 47 | 739 | 92.8 | 0.79 | 1.8 | 0.8 | 5.5 | 3527 |
YLKK400-8 | 400 | 52 | 739 | 93.0 | 0.80 | 1.8 | 0.8 | 5.5 | 3728 |
YLKK400-8 | 450 | 58 | 739 | 93.1 | 0.80 | 1.8 | 0.8 | 5.5 | 3829 |
YLKK450-8 | 500 | 64 | 741 | 93.6 | 0.80 | 1.8 | 0.8 | 5.5 | 4864 |
YLKK450-8 | 560 | 72 | 741 | 93.8 | 0.80 | 1.8 | 0.8 | 5.5 | 4956 |
YLKK450-8 | 630 | 79 | 741 | 93.9 | 0.82 | 1.8 | 0.8 | 5.5 | 5088 |
YLKK450-8 | 710 | 89 | 741 | 94.0 | 0.82 | 1.8 | 0.8 | 5.5 | 5230 |
YLKK500-8 | 800 | 100 | 743 | 94.2 | 0.82 | 1.8 | 0.8 | 5.5 | 6060 |
YLKK500-8 | 900 | 109 | 743 | 94.3 | 0.84 | 1.8 | 0.8 | 5.5 | 6229 |
YLKK500-8 | 1000 | 121 | 742 | 94.4 | 0.84 | 1.8 | 0.8 | 5.5 | 6567 |
YLKK500-8 | 1120 | 136 | 742 | 94.5 | 0.84 | 1.8 | 0.8 | 5.5 | 6900 |
YLKK560-8 | 1250 | 151 | 743 | 94.7 | 0.84 | 1.8 | 0.7 | 5.5 | 7768 |
YLKK560-8 | 1400 | 169 | 743 | 94.8 | 0.84 | 1.8 | 0.7 | 5.5 | 8197 |
YLKK560-8 | 1600 | 193 | 743 | 94.9 | 0.84 | 1.8 | 0.7 | 5.5 | 8608 |
YLKK560-8 | 1800 | 215 | 743 | 95.0 | 0.85 | 1.8 | 0.7 | 5.5 | 9016 |
YLKK630-8 | 2000 | 238 | 743 | 95.1 | 0.85 | 1.8 | 0.7 | 5.5 | 10273 |
YLKK630-8 | 2240 | 267 | 743 | 95.1 | 0.85 | 1.8 | 0.7 | 5.5 | 10786 |
YLKK630-8 | 2500 | 297 | 743 | 95.2 | 0.85 | 1.8 | 0.7 | 5.5 | 11533 |
YLKK630-8 | 2800 | 333 | 743 | 95.2 | 0.85 | 1.8 | 0.7 | 5.5 | 12063 |
YLKK400-10 | 250 | 35 | 591 | 91.5 | 0.75 | 1.8 | 0.8 | 5.5 | 3406 |
YLKK400-10 | 280 | 39 | 591 | 91.7 | 0.75 | 1.8 | 0.8 | 5.5 | 3505 |
YLKK400-10 | 315 | 43 | 591 | 92.1 | 0.76 | 1.8 | 0.8 | 5.5 | 3605 |
YLKK400-10 | 355 | 49 | 590 | 92.3 | 0.76 | 1.8 | 0.8 | 5.5 | 3803 |
YLKK450-10 | 400 | 55 | 592 | 92.6 | 0.76 | 1.8 | 0.8 | 5.5 | 4663 |
YLKK450-10 | 450 | 61 | 592 | 92.7 | 0.76 | 1.8 | 0.8 | 5.5 | 4910 |
YLKK450-10 | 500 | 66 | 592 | 93.0 | 0.78 | 1.8 | 0.8 | 5.5 | 5048 |
YLKK450-10 | 560 | 74 | 592 | 93.1 | 0.78 | 1.8 | 0.8 | 5.5 | 5186 |
YLKK500-10 | 630 | 83 | 594 | 93.2 | 0.78 | 1.8 | 0.8 | 5.5 | 5865 |
YLKK500-10 | 710 | 94 | 593 | 93.4 | 0.78 | 1.8 | 0.8 | 5.5 | 6190 |
YLKK500-10 | 800 | 103 | 593 | 93.7 | 0.80 | 1.8 | 0.8 | 5.5 | 6524 |
YLKK500-10 | 900 | 115 | 593 | 93.8 | 0.80 | 1.8 | 0.8 | 5.5 | 6864 |
Table 1 (continued) Technical data of YLKK series high voltage three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK560-10 | 1000 | 128 | 594 | 93.9 | 0.80 | 1.8 | 0.7 | 5.5 | 7421 |
YLKK560-10 | 1120 | 143 | 593 | 94.1 | 0.80 | 1.8 | 0.7 | 5.5 | 7807 |
YLKK560-10 | 1250 | 159 | 594 | 94.4 | 0.80 | 1.8 | 0.7 | 5.5 | 8187 |
YLKK560-10 | 1400 | 178 | 594 | 94.5 | 0.80 | 1.8 | 0.7 | 5.5 | 8598 |
YLKK630-10 | 1600 | 203 | 594 | 94.6 | 0.80 | 1.8 | 0.7 | 5.5 | 9755 |
YLKK630-10 | 1800 | 226 | 594 | 94.7 | 0.81 | 1.8 | 0.7 | 5.5 | 10213 |
YLKK630-10 | 2000 | 251 | 594 | 94.8 | 0.81 | 1.8 | 0.7 | 5.5 | 11102 |
YLKK630-10 | 2240 | 281 | 594 | 94.8 | 0.81 | 1.8 | 0.7 | 5.5 | 11511 |
YLKK450-12 | 315 | 46 | 494 | 92.1 | 0.72 | 1.8 | 0.8 | 5.5 | 4656 |
YLKK450-12 | 355 | 50 | 494 | 92.3 | 0.74 | 1.8 | 0.8 | 5.5 | 4774 |
YLKK450-12 | 400 | 56 | 494 | 92.6 | 0.74 | 1.8 | 0.8 | 5.5 | 5021 |
YLKK450-12 | 450 | 63 | 494 | 92.7 | 0.74 | 1.8 | 0.8 | 5.5 | 5159 |
YLKK500-12 | 500 | 70 | 494 | 93.1 | 0.74 | 1.8 | 0.8 | 5.5 | 5837 |
YLKK500-12 | 560 | 76 | 494 | 93.2 | 0.76 | 1.8 | 0.8 | 5.5 | 6181 |
YLKK500-12 | 630 | 85 | 494 | 93.3 | 0.76 | 1.8 | 0.8 | 5.5 | 6490 |
YLKK500-12 | 710 | 96 | 494 | 93.4 | 0.76 | 1.8 | 0.8 | 5.5 | 6824 |
YLKK560-12 | 800 | 108 | 494 | 93.7 | 0.76 | 1.8 | 0.7 | 5.5 | 7296 |
YLKK560-12 | 900 | 121 | 494 | 93.8 | 0.76 | 1.8 | 0.7 | 5.5 | 7668 |
YLKK560-12 | 1000 | 135 | 494 | 93.9 | 0.76 | 1.8 | 0.7 | 5.5 | 8073 |
YLKK560-12 | 1120 | 151 | 494 | 94.0 | 0.76 | 1.8 | 0.7 | 5.5 | 8465 |
YLKK630-12 | 1250 | 164 | 495 | 94.1 | 0.78 | 1.8 | 0.7 | 5.5 | 9561 |
YLKK630-12 | 1400 | 184 | 495 | 94.1 | 0.78 | 1.8 | 0.7 | 5.5 | 10068 |
YLKK630-12 | 1600 | 210 | 495 | 94.2 | 0.78 | 1.8 | 0.7 | 5.5 | 10514 |
YLKK630-12 | 1800 | 236 | 495 | 94.2 | 0.78 | 1.8 | 0.7 | 5.5 | 11014 |
Table 2 Technical data of YLKK series high voltage three-phase asynchronous motor (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK355-2 | 250 | 18 | 2977 | 92.0 | 0.85 | 1.8 | 0.6 | 7.0 | 2495 |
YLKK355-2 | 280 | 21 | 2975 | 92.1 | 0.85 | 1.8 | 0.6 | 7.0 | 2584 |
YLKK355-2 | 315 | 23 | 2976 | 92.4 | 0.85 | 1.8 | 0.6 | 7.0 | 2609 |
YLKK355-2 | 355 | 26 | 2975 | 92.8 | 0.86 | 1.8 | 0.6 | 7.0 | 2695 |
YLKK400-2 | 400 | 29 | 2977 | 93.1 | 0.86 | 1.8 | 0.6 | 7.0 | 3149 |
YLKK400-2 | 450 | 32 | 2976 | 93.3 | 0.86 | 1.8 | 0.6 | 7.0 | 3253 |
YLKK400-2 | 500 | 36 | 2976 | 93.4 | 0.86 | 1.8 | 0.6 | 7.0 | 3358 |
YLKK400-2 | 560 | 40 | 2977 | 93.6 | 0.86 | 1.8 | 0.6 | 7.0 | 3466 |
YLKK450-2 | 630 | 45 | 2978 | 93.7 | 0.87 | 1.8 | 0.6 | 7.0 | 4186 |
YLKK450-2 | 710 | 50 | 2979 | 93.8 | 0.87 | 1.8 | 0.6 | 7.0 | 4339 |
YLKK450-2 | 800 | 56 | 2978 | 94.0 | 0.87 | 1.8 | 0.6 | 7.0 | 4482 |
YLKK450-2 | 900 | 63 | 2977 | 94.1 | 0.87 | 1.8 | 0.6 | 7.0 | 4635 |
YLKK500-2 | 1000 | 70 | 2983 | 94.2 | 0.87 | 1.8 | 0.6 | 7.0 | 5493 |
YLKK500-2 | 1120 | 79 | 2983 | 94.4 | 0.87 | 1.8 | 0.6 | 7.0 | 5669 |
YLKK500-2 | 1250 | 88 | 2982 | 94.6 | 0.87 | 1.8 | 0.6 | 7.0 | 6005 |
YLKK500-2 | 1400 | 98 | 2983 | 94.8 | 0.87 | 1.8 | 0.6 | 7.0 | 6171 |
YLKK560-2 | 1600 | 111 | 2983 | 94.9 | 0.88 | 1.8 | 0.6 | 7.0 | 8169 |
YLKK560-2 | 1800 | 124 | 2982 | 95.0 | 0.88 | 1.8 | 0.6 | 7.0 | 8398 |
YLKK560-2 | 2000 | 138 | 2983 | 95.2 | 0.88 | 1.8 | 0.6 | 7.0 | 8641 |
YLKK560-2 | 2240 | 154 | 2983 | 95.4 | 0.88 | 1.8 | 0.6 | 7.0 | 9082 |
YLKK630-2 | 2500 | 172 | 2984 | 95.4 | 0.88 | 1.8 | 0.6 | 7.0 | 9816 |
YLKK630-2 | 2800 | 190 | 2984 | 95.5 | 0.89 | 1.8 | 0.6 | 7.0 | 10350 |
YLKK630-2 | 3150 | 214 | 2985 | 95.6 | 0.89 | 1.8 | 0.6 | 7.0 | 10631 |
YLKK630-2 | 3550 | 241 | 2985 | 95.6 | 0.89 | 1.8 | 0.6 | 7.0 | 11154 |
YLKK355-4 | 250 | 19 | 1484 | 91.6 | 0.83 | 1.8 | 0.7 | 6.5 | 2498 |
YLKK355-4 | 280 | 21 | 1484 | 91.8 | 0.83 | 1.8 | 0.7 | 6.5 | 2593 |
YLKK355-4 | 315 | 24 | 1484 | 92.1 | 0.83 | 1.8 | 0.7 | 6.5 | 2673 |
YLKK355-4 | 355 | 26 | 1483 | 92.3 | 0.86 | 1.8 | 0.7 | 6.5 | 2753 |
YLKK400-4 | 400 | 29 | 1487 | 92.5 | 0.86 | 1.8 | 0.7 | 6.5 | 3271 |
YLKK400-4 | 450 | 33 | 1486 | 92.9 | 0.86 | 1.8 | 0.7 | 6.5 | 3370 |
YLKK400-4 | 500 | 36 | 1486 | 93.0 | 0.86 | 1.8 | 0.7 | 6.5 | 3500 |
YLKK400-4 | 560 | 40 | 1487 | 93.3 | 0.86 | 1.8 | 0.7 | 6.5 | 3602 |
YLKK450-4 | 630 | 45 | 1489 | 93.5 | 0.86 | 1.8 | 0.7 | 6.5 | 4503 |
YLKK450-4 | 710 | 51 | 1488 | 94.1 | 0.86 | 1.8 | 0.7 | 6.5 | 4632 |
YLKK450-4 | 800 | 56 | 1488 | 94.3 | 0.87 | 1.8 | 0.7 | 6.5 | 4743 |
YLKK450-4 | 900 | 63 | 1488 | 94.4 | 0.87 | 1.8 | 0.7 | 6.5 | 4980 |
YLKK500-4 | 1000 | 70 | 1488 | 94.5 | 0.87 | 1.8 | 0.7 | 6.5 | 5935 |
YLKK500-4 | 1120 | 79 | 1488 | 94.6 | 0.87 | 1.8 | 0.7 | 6.5 | 6105 |
Table 2 (Continued) YLKK series high voltage three-phase asynchronous motor technical data (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK500-4 | 1250 | 87 | 1489 | 94.7 | 0.88 | 1.8 | 0.7 | 6.5 | 6271 |
YLKK500-4 | 1400 | 97 | 1487 | 95.0 | 0.88 | 1.8 | 0.7 | 6.5 | 6557 |
YLKK560-4 | 1600 | 110 | 1492 | 95.1 | 0.88 | 1.8 | 0.7 | 6.5 | 7482 |
YLKK560-4 | 1800 | 124 | 1492 | 95.2 | 0.88 | 1.8 | 0.7 | 6.5 | 7919 |
YLKK560-4 | 2000 | 138 | 1491 | 95.4 | 0.88 | 1.8 | 0.7 | 6.5 | 8353 |
YLKK560-4 | 2240 | 154 | 1491 | 95.5 | 0.88 | 1.8 | 0.7 | 6.5 | 8780 |
YLKK630-4 | 2500 | 172 | 1491 | 95.5 | 0.88 | 1.8 | 0.6 | 6.5 | 10318 |
YLKK630-4 | 2800 | 190 | 1492 | 95.6 | 0.89 | 1.8 | 0.6 | 6.5 | 10828 |
YLKK630-4 | 3150 | 214 | 1491 | 95.7 | 0.89 | 1.8 | 0.6 | 6.5 | 11368 |
YLKK630-4 | 3550 | 241 | 1491 | 95.7 | 0.89 | 1.8 | 0.6 | 6.5 | 11896 |
YLKK355-6 | 200 | 16 | 987 | 91.2 | 0.80 | 1.8 | 0.7 | 5.5 | 2630 |
YLKK355-6 | 220 | 17 | 988 | 91.3 | 0.80 | 1.8 | 0.7 | 5.5 | 2640 |
YLKK355-6 | 250 | 20 | 987 | 91.5 | 0.80 | 1.8 | 0.7 | 5.5 | 2720 |
YLKK355-6 | 280 | 22 | 986 | 91.7 | 0.80 | 1.8 | 0.7 | 5.5 | 2800 |
YLKK400-6 | 315 | 24 | 988 | 92.0 | 0.82 | 1.8 | 0.7 | 5.5 | 3306 |
YLKK400-6 | 355 | 27 | 988 | 92.2 | 0.83 | 1.8 | 0.7 | 5.5 | 3402 |
YLKK400-6 | 400 | 30 | 987 | 92.4 | 0.83 | 1.8 | 0.7 | 5.5 | 3595 |
YLKK400-6 | 450 | 34 | 987 | 92.6 | 0.83 | 1.8 | 0.7 | 5.5 | 3691 |
YLKK450-6 | 500 | 37 | 988 | 93.0 | 0.83 | 1.8 | 0.7 | 5.5 | 4418 |
YLKK450-6 | 560 | 41 | 989 | 93.3 | 0.84 | 1.8 | 0.7 | 5.5 | 4709 |
YLKK450-6 | 630 | 46 | 989 | 93.6 | 0.84 | 1.8 | 0.7 | 5.5 | 4801 |
YLKK450-6 | 710 | 52 | 989 | 93.8 | 0.84 | 1.8 | 0.7 | 5.5 | 4934 |
YLKK500-6 | 800 | 58 | 990 | 94.0 | 0.84 | 1.8 | 0.7 | 5.5 | 5739 |
YLKK500-6 | 900 | 65 | 990 | 94.2 | 0.85 | 1.8 | 0.7 | 5.5 | 5902 |
YLKK500-6 | 1000 | 72 | 990 | 94.4 | 0.85 | 1.8 | 0.7 | 5.5 | 6224 |
YLKK500-6 | 1120 | 80 | 990 | 94.6 | 0.85 | 1.8 | 0.7 | 5.5 | 6466 |
YLKK560-6 | 1250 | 89 | 993 | 94.7 | 0.86 | 1.8 | 0.7 | 5.5 | 7481 |
YLKK560-6 | 1400 | 99 | 993 | 95.1 | 0.86 | 1.8 | 0.7 | 5.5 | 7872 |
YLKK560-6 | 1600 | 113 | 993 | 95.2 | 0.86 | 1.8 | 0.7 | 5.5 | 8272 |
YLKK560-6 | 1800 | 127 | 993 | 95.3 | 0.86 | 1.8 | 0.7 | 5.5 | 8712 |
YLKK630-6 | 2000 | 141 | 993 | 95.4 | 0.86 | 1.8 | 0.6 | 5.5 | 9958 |
YLKK630-6 | 2240 | 158 | 993 | 95.4 | 0.86 | 1.8 | 0.6 | 5.5 | 10444 |
YLKK630-6 | 2500 | 174 | 993 | 95.5 | 0.87 | 1.8 | 0.6 | 5.5 | 10943 |
YLKK630-6 | 2800 | 194 | 993 | 95.6 | 0.87 | 1.8 | 0.6 | 5.5 | 11319 |
YLKK400-8 | 250 | 21 | 739 | 91.4 | 0.75 | 1.8 | 0.7 | 5.5 | 3276 |
YLKK400-8 | 280 | 23 | 739 | 91.6 | 0.76 | 1.8 | 0.7 | 5.5 | 3369 |
YLKK400-8 | 315 | 26 | 738 | 92.0 | 0.77 | 1.8 | 0.7 | 5.5 | 3559 |
YLKK400-8 | 355 | 29 | 738 | 92.4 | 0.77 | 1.8 | 0.7 | 5.5 | 3655 |
YLKK450-8 | 400 | 32 | 740 | 92.5 | 0.78 | 1.8 | 0.7 | 5.5 | 4640 |
Table 2 (Continued) YLKK series high voltage three-phase asynchronous motor technical data (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK450-8 | 450 | 36 | 740 | 92.7 | 0.78 | 1.8 | 0.7 | 5.5 | 4744 |
YLKK450-8 | 500 | 39 | 740 | 93.1 | 0.79 | 1.8 | 0.7 | 5.5 | 4877 |
YLKK450-8 | 560 | 44 | 740 | 93.3 | 0.79 | 1.8 | 0.7 | 5.5 | 5019 |
YLKK500-8 | 630 | 47 | 743 | 93.8 | 0.82 | 1.8 | 0.7 | 5.5 | 5808 |
YLKK500-8 | 710 | 53 | 743 | 94.0 | 0.82 | 1.8 | 0.7 | 5.5 | 6130 |
YLKK500-8 | 800 | 60 | 743 | 94.2 | 0.82 | 1.8 | 0.7 | 5.5 | 6453 |
YLKK500-8 | 900 | 67 | 743 | 94.3 | 0.82 | 1.8 | 0.7 | 5.5 | 6771 |
YLKK560-8 | 1000 | 75 | 743 | 94.5 | 0.82 | 1.8 | 0.7 | 5.5 | 7427 |
YLKK560-8 | 1120 | 82 | 743 | 94.7 | 0.83 | 1.8 | 0.7 | 5.5 | 7831 |
YLKK560-8 | 1250 | 92 | 743 | 94.8 | 0.83 | 1.8 | 0.7 | 5.5 | 8223 |
YLKK560-8 | 1400 | 103 | 743 | 94.9 | 0.83 | 1.8 | 0.7 | 5.5 | 8616 |
YLKK630-8 | 1600 | 117 | 744 | 94.9 | 0.83 | 1.8 | 0.7 | 5.5 | 10024 |
YLKK630-8 | 1800 | 130 | 743 | 95.0 | 0.84 | 1.8 | 0.7 | 5.5 | 10472 |
YLKK630-8 | 2000 | 145 | 744 | 95.1 | 0.84 | 1.8 | 0.7 | 5.5 | 10518 |
YLKK630-8 | 2240 | 162 | 743 | 95.1 | 0.84 | 1.8 | 0.7 | 5.5 | 10973 |
YLKK400-10 | 200 | 18 | 592 | 91.1 | 0.72 | 1.8 | 0.7 | 5.5 | 3352 |
YLKK400-10 | 220 | 19 | 592 | 91.2 | 0.72 | 1.8 | 0.7 | 5.5 | 3458 |
YLKK400-10 | 250 | 22 | 592 | 91.3 | 0.72 | 1.8 | 0.7 | 5.5 | 3555 |
YLKK400-10 | 280 | 24 | 591 | 91.5 | 0.74 | 1.8 | 0.7 | 5.5 | 3470 |
YLKK450-10 | 315 | 27 | 592 | 91.7 | 0.74 | 1.8 | 0.7 | 5.5 | 4564 |
YLKK450-10 | 355 | 30 | 592 | 92.1 | 0.75 | 1.8 | 0.7 | 5.5 | 4811 |
YLKK450-10 | 400 | 33 | 592 | 92.3 | 0.75 | 1.8 | 0.7 | 5.5 | 4939 |
YLKK450-10 | 450 | 37 | 592 | 92.5 | 0.76 | 1.8 | 0.7 | 5.5 | 5077 |
YLKK500-10 | 500 | 40 | 594 | 92.7 | 0.77 | 1.8 | 0.7 | 5.5 | 5766 |
YLKK500-10 | 560 | 45 | 593 | 92.9 | 0.78 | 1.8 | 0.7 | 5.5 | 6076 |
YLKK500-10 | 630 | 50 | 593 | 93.1 | 0.78 | 1.8 | 0.7 | 5.5 | 6395 |
YLKK500-10 | 710 | 56 | 593 | 93.3 | 0.78 | 1.8 | 0.7 | 5.5 | 6710 |
YLKK560-10 | 800 | 63 | 594 | 93.8 | 0.78 | 1.8 | 0.7 | 5.5 | 7121 |
YLKK560-10 | 900 | 69 | 594 | 94.0 | 0.80 | 1.8 | 0.7 | 5.5 | 7487 |
YLKK560-10 | 1000 | 77 | 594 | 94.1 | 0.80 | 1.8 | 0.7 | 5.5 | 7877 |
YLKK560-10 | 1120 | 86 | 594 | 94.2 | 0.80 | 1.8 | 0.7 | 5.5 | 8268 |
YLKK630-10 | 1250 | 96 | 595 | 94.2 | 0.80 | 1.8 | 0.7 | 5.5 | 9440 |
YLKK630-10 | 1400 | 107 | 594 | 94.3 | 0.80 | 1.8 | 0.7 | 5.5 | 9919 |
YLKK630-10 | 1600 | 121 | 594 | 94.4 | 0.81 | 1.8 | 0.7 | 5.5 | 10358 |
YLKK630-10 | 1800 | 136 | 594 | 94.4 | 0.81 | 1.8 | 0.7 | 5.5 | 10845 |
YLKK450-12 | 250 | 22 | 494 | 91.1 | 0.72 | 1.8 | 0.7 | 5.5 | 4564 |
YLKK450-12 | 280 | 25 | 494 | 91.3 | 0.72 | 1.8 | 0.7 | 5.5 | 4642 |
YLKK450-12 | 315 | 28 | 494 | 91.5 | 0.72 | 1.8 | 0.7 | 5.5 | 4929 |
YLKK450-12 | 355 | 31 | 493 | 91.8 | 0.72 | 1.8 | 0.7 | 5.5 | 5047 |
Table 2 (Continued) YLKK series high voltage three-phase asynchronous motor technical data (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YLKK500-12 | 400 | 34 | 495 | 92.0 | 0.73 | 1.8 | 0.7 | 5.5 | 5750 |
YLKK500-12 | 450 | 39 | 495 | 92.2 | 0.73 | 1.8 | 0.7 | 5.5 | 6069 |
YLKK500-12 | 500 | 43 | 495 | 92.5 | 0.73 | 1.8 | 0.7 | 5.5 | 6378 |
YLKK500-12 | 560 | 47 | 494 | 92.9 | 0.74 | 1.8 | 0.7 | 5.5 | 6697 |
YLKK560-12 | 630 | 53 | 494 | 93.1 | 0.74 | 1.8 | 0.7 | 5.5 | 7184 |
YLKK560-12 | 710 | 59 | 494 | 93.3 | 0.74 | 1.8 | 0.7 | 5.5 | 7386 |
YLKK560-12 | 800 | 67 | 494 | 93.8 | 0.74 | 1.8 | 0.7 | 5.5 | 7763 |
YLKK560-12 | 900 | 75 | 494 | 93.8 | 0.74 | 1.8 | 0.7 | 5.5 | 8140 |
YLKK630-12 | 1000 | 83 | 495 | 93.8 | 0.74 | 1.8 | 0.7 | 5.5 | 9424 |
YLKK630-12 | 1120 | 92 | 495 | 93.9 | 0.75 | 1.8 | 0.7 | 5.5 | 9911 |
YLKK630-12 | 1250 | 102 | 495 | 94.0 | 0.75 | 1.8 | 0.7 | 5.5 | 10103 |
YLKK630-12 | 1400 | 115 | 495 | 94.0 | 0.75 | 1.8 | 0.7 | 5.5 | 10586 |
As one of China professional large electric motor manufacturers, we focus on providing high-quality vertical induction motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M2 which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about vertical induction motor, vertical motor, asynchronous motor,air cooling motor,motor air cooled, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
