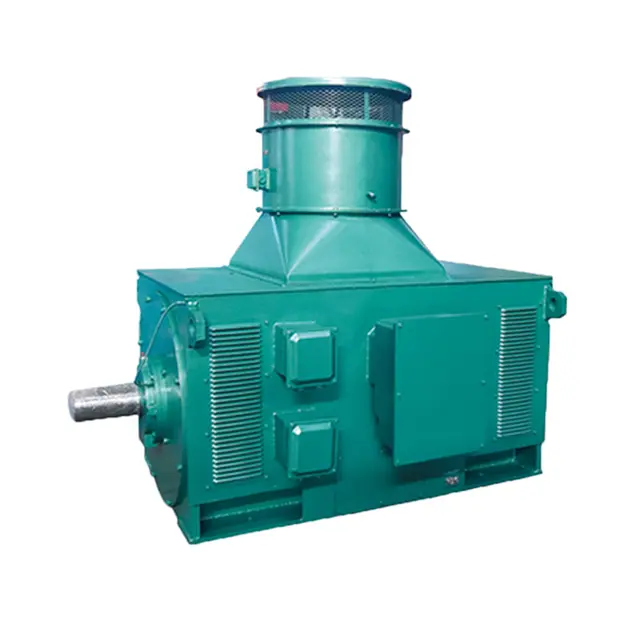

We're professional three phase inverter motor manufacturers and suppliers in China, to buy or wholesale asynchronous inverter motors from our factory. For quotation or if you have any questions, contact us now for customized high voltage motor and price.
● high power index;
● low noise and vibration;
● high reliability;
● easy use;
● installation and maintenance.
This series of products are mainly suitable for general mechanical equipment such as fans, water pumps, compressors, crushers, chip cutting machines, transportation machinery or other similar mechanical equipment in industries such as petroleum, chemical industry, coal, power stations, metallurgy, transportation, textile, medicine, and grain processing.
Table 1 Technical data of YVP new series high voltage variable frequency three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP315-2 | 200 | 25 | 2971 | 92.0 | 0.85 | 1.8 | 0.6 | 7.0 | 2345 |
YVP315-2 | 220 | 27 | 2971 | 92.0 | 0.86 | 1.8 | 0.6 | 7.0 | 2370 |
YVP315-2 | 250 | 30 | 2968 | 92.2 | 0.86 | 1.8 | 0.6 | 7.0 | 2400 |
YVP315-2 | 280 | 34 | 2969 | 92.3 | 0.86 | 1.8 | 0.6 | 7.0 | 2450 |
YVP315-2 | 315 | 38 | 2975 | 92.7 | 0.86 | 1.8 | 0.6 | 7.0 | 2500 |
YVP315-2 | 355 | 43 | 2976 | 93.0 | 0.86 | 1.8 | 0.6 | 7.0 | 2570 |
YVP355-2 | 400 | 48 | 2974 | 93.4 | 0.86 | 1.8 | 0.6 | 7.0 | 2780 |
YVP355-2 | 450 | 54 | 2973 | 93.7 | 0.86 | 1.8 | 0.6 | 7.0 | 2850 |
YVP355-2 | 500 | 59 | 2977 | 94.0 | 0.87 | 1.8 | 0.6 | 7.0 | 2950 |
Table 1 (continued) Technical data of YVP new series high voltage variable frequency three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP355-2 | 560 | 66 | 2976 | 94.1 | 0.87 | 1.8 | 0.6 | 7.0 | 3030 |
YVP400-2 | 630 | 74 | 2976 | 94.3 | 0.87 | 1.8 | 0.6 | 7.0 | 3630 |
YVP400-2 | 710 | 83 | 2976 | 94.4 | 0.87 | 1.8 | 0.6 | 7.0 | 3730 |
YVP400-2 | 800 | 93 | 2975 | 94.7 | 0.87 | 1.8 | 0.6 | 7.0 | 3836 |
YVP400-2 | 900 | 105 | 2976 | 94.8 | 0.87 | 1.8 | 0.6 | 7.0 | 3920 |
YVP450-2 | 1000 | 115 | 2977 | 94.9 | 0.88 | 1.8 | 0.6 | 7.0 | 4200 |
YVP450-2 | 1120 | 129 | 2976 | 95.0 | 0.88 | 1.8 | 0.6 | 7.0 | 4340 |
YVP450-2 | 1250 | 144 | 2981 | 95.2 | 0.88 | 1.8 | 0.6 | 7.0 | 4500 |
YVP450-2 | 1400 | 161 | 2981 | 95.3 | 0.88 | 1.8 | 0.6 | 7.0 | 4650 |
YVP500-2 | 1600 | 183 | 2980 | 95.4 | 0.88 | 1.8 | 0.6 | 7.0 | 5825 |
YVP500-2 | 1800 | 206 | 2980 | 95.5 | 0.88 | 1.8 | 0.6 | 7.0 | 6080 |
YVP500-2 | 2000 | 229 | 2981 | 95.7 | 0.88 | 1.8 | 0.6 | 7.0 | 6350 |
YVP500-2 | 2240 | 256 | 2982 | 95.8 | 0.88 | 1.8 | 0.6 | 7.0 | 6575 |
YVP560-2 | 2500 | 282 | 2983 | 95.9 | 0.89 | 1.8 | 0.6 | 7.0 | 8600 |
YVP560-2 | 2800 | 315 | 2983 | 96.0 | 0.89 | 1.8 | 0.6 | 7.0 | 8900 |
YVP560-2 | 3150 | 354 | 2984 | 96.1 | 0.89 | 1.8 | 0.6 | 7.0 | 9210 |
YVP560-2 | 3550 | 399 | 2984 | 96.1 | 0.89 | 1.8 | 0.6 | 7.0 | 9710 |
YVP630-2 | 4000 | 450 | 2984 | 96.2 | 0.89 | 1.8 | 0.6 | 7.0 | 11250 |
YVP630-2 | 4500 | 505 | 2984 | 96.3 | 0.89 | 1.8 | 0.6 | 7.0 | 11560 |
YVP630-2 | 5000 | 561 | 2984 | 96.3 | 0.89 | 1.8 | 0.6 | 7.0 | 11910 |
YVP315-4 | 200 | 25 | 1482 | 92.3 | 0.85 | 1.8 | 0.8 | 6.5 | 2000 |
YVP315-4 | 220 | 27 | 1483 | 92.5 | 0.85 | 1.8 | 0.8 | 6.5 | 2090 |
YVP315-4 | 250 | 31 | 1481 | 92.6 | 0.85 | 1.8 | 0.8 | 6.5 | 2250 |
YVP315-4 | 280 | 34 | 1482 | 92.7 | 0.86 | 1.8 | 0.8 | 6.5 | 2340 |
YVP315-4 | 315 | 38 | 1484 | 92.9 | 0.86 | 1.8 | 0.8 | 6.5 | 2425 |
YVP315-4 | 355 | 43 | 1482 | 93.1 | 0.86 | 1.8 | 0.8 | 6.5 | 2500 |
YVP355-4 | 400 | 48 | 1484 | 93.3 | 0.86 | 1.8 | 0.8 | 6.5 | 2630 |
YVP355-4 | 450 | 54 | 1483 | 93.5 | 0.86 | 1.8 | 0.8 | 6.5 | 2720 |
YVP355-4 | 500 | 59 | 1485 | 93.7 | 0.87 | 1.8 | 0.8 | 6.5 | 2810 |
YVP355-4 | 560 | 66 | 1485 | 93.9 | 0.87 | 1.8 | 0.8 | 6.5 | 2910 |
YVP400-4 | 630 | 74 | 1485 | 94.2 | 0.87 | 1.8 | 0.8 | 6.5 | 3455 |
YVP400-4 | 710 | 83 | 1485 | 94.4 | 0.87 | 1.8 | 0.8 | 6.5 | 3595 |
YVP400-4 | 800 | 94 | 1488 | 94.6 | 0.87 | 1.8 | 0.8 | 6.5 | 3720 |
YVP400-4 | 900 | 105 | 1487 | 94.7 | 0.87 | 1.8 | 0.8 | 6.5 | 3850 |
YVP450-4 | 1000 | 117 | 1488 | 94.8 | 0.87 | 1.8 | 0.8 | 6.5 | 4920 |
YVP450-4 | 1120 | 129 | 1487 | 94.9 | 0.88 | 1.8 | 0.8 | 6.5 | 5020 |
YVP450-4 | 1250 | 144 | 1487 | 95.1 | 0.88 | 1.8 | 0.8 | 6.5 | 5150 |
YVP450-4 | 1400 | 161 | 1487 | 95.2 | 0.88 | 1.8 | 0.8 | 6.5 | 5230 |
Table 1 (continued) Technical data of YVP new series high voltage variable frequency three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current |
YVP500-4 | 1600 | 182 | 95.3 | 0.89 | 1.8 | 0.7 | 6.5 | 5800 |
YVP500-4 | 1800 | 204 | 95.4 | 0.89 | 1.8 | 0.7 | 6.5 | 6020 |
YVP500-4 | 2000 | 226 | 95.6 | 0.89 | 1.8 | 0.7 | 6.5 | 6280 |
YVP500-4 | 2240 | 253 | 95.7 | 0.89 | 1.8 | 0.7 | 6.5 | 6610 |
YVP560-4 | 2500 | 282 | 95.8 | 0.89 | 1.8 | 0.6 | 6.5 | 7730 |
YVP560-4 | 2800 | 316 | 95.9 | 0.89 | 1.8 | 0.6 | 6.5 | 7950 |
YVP560-4 | 3150 | 354 | 96.1 | 0.89 | 1.8 | 0.6 | 6.5 | 8330 |
YVP560-4 | 3550 | 399 | 96.1 | 0.89 | 1.8 | 0.6 | 6.5 | 8630 |
YVP630-4 | 4000 | 450 | 96.2 | 0.89 | 1.8 | 0.6 | 6.5 | 10390 |
YVP630-4 | 4500 | 506 | 96.2 | 0.89 | 1.8 | 0.6 | 6.5 | 10895 |
YVP630-4 | 5000 | 561 | 96.4 | 0.89 | 1.8 | 0.6 | 6.5 | 11160 |
YVP315-6 | 160 | 20 | 92.0 | 0.83 | 1.8 | 0.8 | 6.0 | 2260 |
YVP315-6 | 185 | 23 | 92.0 | 0.83 | 1.8 | 0.8 | 6.0 | 2300 |
YVP315-6 | 200 | 25 | 92.1 | 0.83 | 1.8 | 0.8 | 6.0 | 2355 |
YVP315-6 | 220 | 28 | 92.2 | 0.83 | 1.8 | 0.8 | 6.0 | 2430 |
YVP315-6 | 250 | 31 | 92.5 | 0.83 | 1.8 | 0.8 | 6.0 | 2490 |
YVP315-6 | 280 | 35 | 92.7 | 0.83 | 1.8 | 0.8 | 6.0 | 2570 |
YVP355-6 | 315 | 39 | 93.0 | 0.83 | 1.8 | 0.8 | 6.0 | 2710 |
YVP355-6 | 355 | 44 | 93.2 | 0.83 | 1.8 | 0.8 | 6.0 | 2820 |
YVP355-6 | 400 | 50 | 93.3 | 0.83 | 1.8 | 0.8 | 6.0 | 2900 |
YVP355-6 | 450 | 55 | 93.6 | 0.84 | 1.8 | 0.8 | 6.0 | 3010 |
YVP400-6 | 500 | 60 | 93.9 | 0.85 | 1.8 | 0.8 | 6.0 | 3450 |
YVP400-6 | 560 | 67 | 94.1 | 0.85 | 1.8 | 0.8 | 6.0 | 3560 |
YVP400-6 | 630 | 76 | 94.2 | 0.85 | 1.8 | 0.8 | 6.0 | 3660 |
YVP400-6 | 710 | 85 | 94.4 | 0.85 | 1.8 | 0.8 | 6.0 | 3790 |
YVP450-6 | 800 | 96 | 94.6 | 0.85 | 1.8 | 0.8 | 6.0 | 4420 |
YVP450-6 | 900 | 108 | 94.7 | 0.85 | 1.8 | 0.8 | 6.0 | 4560 |
YVP450-6 | 1000 | 119 | 94.8 | 0.85 | 1.8 | 0.8 | 6.0 | 4710 |
YVP450-6 | 1120 | 132 | 94.9 | 0.86 | 1.8 | 0.8 | 6.0 | 4815 |
YVP500-6 | 1250 | 147 | 95.1 | 0.86 | 1.8 | 0.7 | 6.0 | 5760 |
YVP500-6 | 1400 | 165 | 95.2 | 0.86 | 1.8 | 0.7 | 6.0 | 5950 |
YVP500-6 | 1600 | 188 | 95.3 | 0.86 | 1.8 | 0.7 | 6.0 | 6200 |
YVP500-6 | 1800 | 211 | 95.4 | 0.86 | 1.8 | 0.7 | 6.0 | 6420 |
YVP560-6 | 2000 | 234 | 95.6 | 0.86 | 1.8 | 0.7 | 6.5 | 7878 |
YVP560-6 | 2240 | 262 | 95.7 | 0.86 | 1.8 | 0.7 | 6.5 | 8215 |
YVP560-6 | 2500 | 292 | 95.7 | 0.86 | 1.8 | 0.7 | 6.5 | 8545 |
YVP560-6 | 2800 | 327 | 95.8 | 0.86 | 1.8 | 0.7 | 6.5 | 8765 |
YVP630-6 | 3150 | 363 | 96.0 | 0.87 | 1.8 | 0.7 | 6.5 | 10390 |
Table 1 (continued) Technical data of YVP new series high voltage variable frequency three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current |
YVP630-6 | 3550 | 409 | 96.0 | 0.87 | 1.8 | 0.7 | 6.5 | 10960 |
YVP630-6 | 4000 | 460 | 96.1 | 0.87 | 1.8 | 0.7 | 6.5 | 11500 |
YVP355-8 | 200 | 27 | 92.0 | 0.78 | 1.8 | 0.8 | 5.5 | 2500 |
YVP355-8 | 220 | 29 | 92.1 | 0.78 | 1.8 | 0.8 | 5.5 | 2585 |
YVP355-8 | 250 | 33 | 92.2 | 0.79 | 1.8 | 0.8 | 5.5 | 2660 |
YVP355-8 | 280 | 37 | 92.4 | 0.79 | 1.8 | 0.8 | 5.5 | 2810 |
YVP355-8 | 315 | 41 | 92.7 | 0.80 | 1.8 | 0.8 | 5.5 | 2900 |
YVP355-8 | 355 | 46 | 92.8 | 0.80 | 1.8 | 0.8 | 5.5 | 3000 |
YVP400-8 | 400 | 52 | 93.0 | 0.80 | 1.8 | 0.8 | 5.5 | 3610 |
YVP400-8 | 450 | 57 | 93.1 | 0.81 | 1.8 | 0.8 | 5.5 | 3705 |
YVP400-8 | 500 | 63 | 93.7 | 0.81 | 1.8 | 0.8 | 5.5 | 3785 |
YVP400-8 | 560 | 71 | 93.8 | 0.81 | 1.8 | 0.8 | 5.5 | 3880 |
YVP450-8 | 630 | 79 | 93.9 | 0.82 | 1.8 | 0.8 | 5.5 | 4510 |
YVP450-8 | 710 | 89 | 94.0 | 0.82 | 1.8 | 0.8 | 5.5 | 4610 |
YVP450-8 | 800 | 97 | 94.2 | 0.84 | 1.8 | 0.8 | 5.5 | 4830 |
YVP450-8 | 900 | 109 | 94.3 | 0.84 | 1.8 | 0.8 | 5.5 | 4930 |
YVP500-8 | 1000 | 121 | 94.4 | 0.84 | 1.8 | 0.8 | 5.5 | 5930 |
YVP500-8 | 1120 | 136 | 94.5 | 0.84 | 1.8 | 0.8 | 5.5 | 6150 |
YVP500-8 | 1250 | 151 | 94.7 | 0.84 | 1.8 | 0.8 | 5.5 | 6350 |
YVP500-8 | 1400 | 169 | 94.8 | 0.84 | 1.8 | 0.8 | 5.5 | 6600 |
YVP560-8 | 1600 | 193 | 94.9 | 0.84 | 1.8 | 0.7 | 6.0 | 7750 |
YVP560-8 | 1800 | 217 | 95.0 | 0.84 | 1.8 | 0.7 | 6.0 | 8130 |
YVP560-8 | 2000 | 241 | 95.2 | 0.84 | 1.8 | 0.7 | 6.0 | 8550 |
YVP560-8 | 2240 | 269 | 95.3 | 0.84 | 1.8 | 0.7 | 6.0 | 8610 |
YVP630-8 | 2500 | 297 | 95.4 | 0.85 | 1.8 | 0.7 | 6.0 | 10680 |
YVP630-8 | 2800 | 332 | 95.5 | 0.85 | 1.8 | 0.7 | 6.0 | 11100 |
YVP630-8 | 3150 | 373 | 95.6 | 0.85 | 1.8 | 0.7 | 6.0 | 11540 |
YVP400-10 | 250 | 35 | 91.5 | 0.76 | 1.8 | 0.8 | 5.5 | 3410 |
YVP400-10 | 280 | 38 | 91.7 | 0.78 | 1.8 | 0.8 | 5.5 | 3510 |
YVP400-10 | 315 | 42 | 91.9 | 0.79 | 1.8 | 0.8 | 5.5 | 3580 |
YVP400-10 | 355 | 47 | 92.1 | 0.79 | 1.8 | 0.8 | 5.5 | 3670 |
YVP400-10 | 400 | 52 | 92.6 | 0.80 | 1.8 | 0.8 | 5.5 | 3780 |
YVP400-10 | 450 | 58 | 92.7 | 0.80 | 1.8 | 0.8 | 5.5 | 3890 |
YVP450-10 | 500 | 65 | 93.0 | 0.80 | 1.8 | 0.8 | 5.5 | 4365 |
YVP450-10 | 560 | 72 | 93.1 | 0.80 | 1.8 | 0.8 | 5.5 | 4510 |
YVP450-10 | 630 | 81 | 93.2 | 0.80 | 1.8 | 0.8 | 5.5 | 4640 |
YVP450-10 | 710 | 89 | 93.4 | 0.82 | 1.8 | 0.8 | 5.5 | 4770 |
YVP500-10 | 800 | 100 | 93.7 | 0.82 | 1.8 | 0.8 | 5.5 | 5670 |
Table 1 (continued) Technical data of YVP series high voltage variable frequency three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP500-10 | 900 | 113 | 593 | 93.8 | 0.82 | 1.8 | 0.8 | 5.5 | 6005 |
YVP500-10 | 1000 | 125 | 594 | 93.9 | 0.82 | 1.8 | 0.8 | 5.5 | 6250 |
YVP500-10 | 1120 | 140 | 593 | 94.1 | 0.82 | 1.8 | 0.8 | 5.5 | 6450 |
YVP560-10 | 1250 | 155 | 594 | 94.4 | 0.82 | 1.8 | 0.7 | 6.0 | 7200 |
YVP560-10 | 1400 | 174 | 594 | 94.5 | 0.82 | 1.8 | 0.7 | 6.0 | 7335 |
YVP560-10 | 1600 | 198 | 594 | 94.6 | 0.82 | 1.8 | 0.7 | 6.0 | 7640 |
YVP560-10 | 1800 | 223 | 594 | 94.7 | 0.82 | 1.8 | 0.7 | 6.0 | 7835 |
YVP630-10 | 2000 | 247 | 594 | 94.9 | 0.82 | 1.8 | 0.7 | 6.0 | 10060 |
YVP630-10 | 2240 | 277 | 594 | 95.0 | 0.82 | 1.8 | 0.7 | 6.0 | 10320 |
YVP630-10 | 2500 | 308 | 594 | 95.1 | 0.82 | 1.8 | 0.7 | 6.0 | 10930 |
YVP450-12 | 400 | 55 | 494 | 92.6 | 0.75 | 1.8 | 0.7 | 6.0 | 4300 |
YVP450-12 | 450 | 62 | 494 | 92.7 | 0.75 | 1.8 | 0.7 | 6.0 | 4375 |
YVP450-12 | 500 | 65 | 494 | 93.1 | 0.79 | 1.8 | 0.7 | 6.0 | 4510 |
YVP450-12 | 560 | 73 | 494 | 93.2 | 0.79 | 1.8 | 0.7 | 6.0 | 4775 |
YVP500-12 | 630 | 82 | 494 | 93.3 | 0.79 | 1.8 | 0.7 | 6.0 | 5945 |
YVP500-12 | 710 | 93 | 494 | 93.4 | 0.79 | 1.8 | 0.7 | 6.0 | 6190 |
YVP500-12 | 800 | 104 | 494 | 93.7 | 0.79 | 1.8 | 0.7 | 6.0 | 5410 |
YVP500-12 | 900 | 117 | 494 | 93.8 | 0.79 | 1.8 | 0.7 | 6.0 | 6620 |
YVP560-12 | 1000 | 130 | 494 | 93.9 | 0.79 | 1.8 | 0.7 | 6.0 | 7370 |
YVP560-12 | 1120 | 145 | 494 | 94.0 | 0.79 | 1.8 | 0.7 | 6.0 | 7570 |
YVP560-12 | 1250 | 162 | 495 | 94.2 | 0.79 | 1.8 | 0.7 | 6.0 | 8155 |
YVP560-12 | 1400 | 181 | 495 | 94.3 | 0.79 | 1.8 | 0.7 | 6.0 | 8355 |
YVP630-12 | 1600 | 207 | 495 | 94.3 | 0.79 | 1.8 | 0.7 | 6.0 | 9960 |
YVP630-12 | 1800 | 232 | 495 | 94.4 | 0.79 | 1.8 | 0.7 | 6.0 | 10210 |
YVP630-12 | 2000 | 258 | 495 | 94.6 | 0.79 | 1.8 | 0.7 | 6.0 | 10980 |
YVP630-12 | 2240 | 288 | 495 | 94．7 | 0.79 | 1.8 | 0.7 | 6.0 | 11290 |
Table 2 Technical data of YVP series high voltage variable frequency three-phase asynchronous motor (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP355-2 | 250 | 18 | 2977 | 92.1 | 0.86 | 1.8 | 0.6 | 7.0 | 2495 |
YVP355-2 | 280 | 20 | 2975 | 92.3 | 0.86 | 1.8 | 0.6 | 7.0 | 2585 |
YVP355-2 | 315 | 23 | 2976 | 92.7 | 0.86 | 1.8 | 0.6 | 7.0 | 2690 |
YVP355-2 | 355 | 25 | 2975 | 93.1 | 0.87 | 1.8 | 0.6 | 7.0 | 2780 |
YVP355-2 | 400 | 28 | 2977 | 93.4 | 0.87 | 1.8 | 0.6 | 7.0 | 2860 |
YVP355-2 | 450 | 32 | 2976 | 93.6 | 0.87 | 1.8 | 0.6 | 7.0 | 2950 |
YVP400-2 | 500 | 35 | 2976 | 93.8 | 0.87 | 1.8 | 0.6 | 7.0 | 3450 |
YVP400-2 | 560 | 40 | 2977 | 93.9 | 0.87 | 1.8 | 0.6 | 7.0 | 3555 |
YVP400-2 | 630 | 44 | 2978 | 94.0 | 0.87 | 1.8 | 0.6 | 7.0 | 3670 |
YVP400-2 | 710 | 50 | 2979 | 94.1 | 0.88 | 1.8 | 0.6 | 7.0 | 3770 |
YVP450-2 | 800 | 56 | 2978 | 94.3 | 0.88 | 1.8 | 0.6 | 7.0 | 4200 |
YVP450-2 | 900 | 63 | 2977 | 94.4 | 0.88 | 1.8 | 0.6 | 7.0 | 4340 |
YVP450-2 | 1000 | 69 | 2983 | 94.5 | 0.88 | 1.8 | 0.6 | 7.0 | 4500 |
YVP450-2 | 1120 | 78 | 2983 | 94.7 | 0.88 | 1.8 | 0.6 | 7.0 | 4650 |
YVP500-2 | 1250 | 85 | 2982 | 94.9 | 0.89 | 1.8 | 0.6 | 7.0 | 5715 |
YVP500-2 | 1400 | 96 | 2983 | 95.1 | 0.89 | 1.8 | 0.6 | 7.0 | 5940 |
YVP500-2 | 1600 | 109 | 2983 | 95.2 | 0.89 | 1.8 | 0.6 | 7.0 | 6195 |
YVP500-2 | 1800 | 121 | 2982 | 95.3 | 0.90 | 1.8 | 0.6 | 7.0 | 6435 |
YVP560-2 | 2000 | 134 | 2983 | 95.5 | 0.90 | 1.8 | 0.6 | 7.0 | 8600 |
YVP560-2 | 2240 | 150 | 2983 | 95.7 | 0.90 | 1.8 | 0.6 | 7.0 | 8900 |
YVP560-2 | 2500 | 168 | 2984 | 95.7 | 0.90 | 1.8 | 0.6 | 7.0 | 9210 |
YVP560-2 | 2800 | 188 | 2984 | 95.7 | 0.90 | 1.8 | 0.6 | 7.0 | 9710 |
YVP630-2 | 3150 | 211 | 2985 | 95.8 | 0.90 | 1.8 | 0.6 | 7.0 | 11450 |
YVP630-2 | 3550 | 238 | 2985 | 95.8 | 0.90 | 1.8 | 0.6 | 7.0 | 11755 |
YVP630-2 | 4000 | 268 | 2985 | 95.9 | 0.90 | 1.8 | 0.6 | 7.0 | 12050 |
YVP630-2 | 4500 | 301 | 2985 | 95.9 | 0.90 | 1.8 | 0.6 | 7.0 | 12700 |
YVP355-4 | 250 | 18 | 1484 | 92.1 | 0.85 | 1.8 | 0.7 | 7.0 | 2460 |
YVP355-4 | 280 | 21 | 1484 | 92.2 | 0.85 | 1.8 | 0.7 | 7.0 | 2530 |
YVP355-4 | 315 | 23 | 1484 | 92.5 | 0.85 | 1.8 | 0.7 | 7.0 | 2590 |
YVP355-4 | 355 | 26 | 1483 | 92.6 | 0.86 | 1.8 | 0.7 | 7.0 | 2675 |
YVP355-4 | 400 | 29 | 1487 | 92.8 | 0.86 | 1.8 | 0.7 | 7.0 | 2760 |
YVP355-4 | 450 | 32 | 1486 | 93.2 | 0.86 | 1.8 | 0.7 | 7.0 | 2845 |
YVP400-4 | 500 | 36 | 1486 | 93.3 | 0.86 | 1.8 | 0.7 | 7.0 | 3475 |
YVP400-4 | 560 | 40 | 1487 | 93.6 | 0.86 | 1.8 | 0.7 | 7.0 | 3520 |
YVP400-4 | 630 | 45 | 1489 | 93.8 | 0.86 | 1.8 | 0.7 | 7.0 | 3590 |
YVP400-4 | 710 | 50 | 1488 | 94.4 | 0.87 | 1.8 | 0.7 | 7.0 | 3680 |
YVP450-4 | 800 | 56 | 1488 | 94.6 | 0.87 | 1.8 | 0.7 | 7.0 | 4855 |
YVP450-4 | 900 | 62 | 1488 | 94.7 | 0.88 | 1.8 | 0.7 | 7.0 | 4995 |
Table 2 (Continued) YVP series high voltage variable frequency three-phase asynchronous motor technical data (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP450-4 | 1000 | 69 | 1488 | 94.8 | 0.88 | 1.8 | 0.7 | 7.0 | 5145 |
YVP450-4 | 1120 | 77 | 1488 | 94.9 | 0.88 | 1.8 | 0.7 | 7.0 | 5295 |
YVP500-4 | 1250 | 85 | 1489 | 95.0 | 0.89 | 1.8 | 0.7 | 7.0 | 5595 |
YVP500-4 | 1400 | 95 | 1487 | 95.3 | 0.89 | 1.8 | 0.7 | 7.0 | 5795 |
YVP500-4 | 1600 | 109 | 1492 | 95.4 | 0.89 | 1.8 | 0.7 | 7.0 | 6200 |
YVP500-4 | 1800 | 122 | 1492 | 95.5 | 0.89 | 1.8 | 0.7 | 7.0 | 6390 |
YVP560-4 | 2000 | 136 | 1491 | 95.7 | 0.89 | 1.8 | 0.7 | 7.0 | 7390 |
YVP560-4 | 2240 | 152 | 1491 | 95.8 | 0.89 | 1.8 | 0.7 | 7.0 | 7620 |
YVP560-4 | 2500 | 169 | 1491 | 95.8 | 0.89 | 1.8 | 0.7 | 7.0 | 8175 |
YVP560-4 | 2800 | 190 | 1492 | 95.8 | 0.89 | 1.8 | 0.7 | 7.0 | 8410 |
YVP630-4 | 3150 | 213 | 1491 | 95.9 | 0.89 | 1.8 | 0.6 | 7.0 | 9990 |
YVP630-4 | 3550 | 240 | 1491 | 95.9 | 0.89 | 1.8 | 0.6 | 7.0 | 10550 |
YVP630-4 | 4000 | 270 | 1491 | 96.0 | 0.89 | 1.8 | 0.6 | 7.0 | 11070 |
YVP630-4 | 4500 | 304 | 1491 | 96.0 | 0.89 | 1.8 | 0.6 | 7.0 | 11640 |
YVP355-6 | 200 | 16 | 987 | 91.2 | 0.80 | 1.8 | 0.7 | 6.0 | 2590 |
YVP355-6 | 220 | 17 | 988 | 91.4 | 0.80 | 1.8 | 0.7 | 6.0 | 2650 |
YVP355-6 | 250 | 20 | 987 | 91.6 | 0.80 | 1.8 | 0.7 | 6.0 | 2710 |
YVP355-6 | 280 | 22 | 986 | 91.8 | 0.80 | 1.8 | 0.7 | 6.0 | 2780 |
YVP355-6 | 315 | 24 | 988 | 92.1 | 0.82 | 1.8 | 0.7 | 6.0 | 2795 |
YVP355-6 | 355 | 27 | 988 | 92.4 | 0.83 | 1.8 | 0.7 | 6.0 | 2895 |
YVP400-6 | 400 | 30 | 987 | 92.6 | 0.83 | 1.8 | 0.7 | 6.0 | 3430 |
YVP400-6 | 450 | 34 | 987 | 92.8 | 0.83 | 1.8 | 0.7 | 6.0 | 3490 |
YVP400-6 | 500 | 37 | 988 | 93.2 | 0.83 | 1.8 | 0.7 | 6.0 | 3670 |
YVP400-6 | 560 | 41 | 989 | 93.5 | 0.84 | 1.8 | 0.7 | 6.0 | 3750 |
YVP450-6 | 630 | 46 | 989 | 93.8 | 0.84 | 1.8 | 0.7 | 6.0 | 4366 |
YVP450-6 | 710 | 52 | 989 | 94.0 | 0.84 | 1.8 | 0.7 | 6.0 | 4490 |
YVP450-6 | 800 | 58 | 990 | 94.2 | 0.84 | 1.8 | 0.7 | 6.0 | 4640 |
YVP450-6 | 900 | 65 | 990 | 94.4 | 0.85 | 1.8 | 0.7 | 6.0 | 4785 |
YVP500-6 | 1000 | 72 | 990 | 94.6 | 0.85 | 1.8 | 0.7 | 6.0 | 5490 |
YVP500-6 | 1120 | 80 | 990 | 94.8 | 0.85 | 1.8 | 0.7 | 6.0 | 5880 |
YVP500-6 | 1250 | 88 | 993 | 94.9 | 0.86 | 1.8 | 0.7 | 6.0 | 6090 |
YVP500-6 | 1400 | 99 | 993 | 95.3 | 0.86 | 1.8 | 0.7 | 6.0 | 6290 |
YVP560-6 | 1600 | 113 | 993 | 95.4 | 0.86 | 1.8 | 0.7 | 6.0 | 7350 |
YVP560-6 | 1800 | 127 | 993 | 95.5 | 0.86 | 1.8 | 0.7 | 6.0 | 7750 |
YVP560-6 | 2000 | 140 | 993 | 95.6 | 0.86 | 1.8 | 0.7 | 6.0 | 8100 |
YVP560-6 | 2240 | 157 | 993 | 95.6 | 0.86 | 1.8 | 0.7 | 6.0 | 8300 |
YVP630-6 | 2500 | 176 | 993 | 95.6 | 0.86 | 1.8 | 0.6 | 6.0 | 9970 |
YVP630-6 | 2800 | 197 | 993 | 95.6 | 0.86 | 1.8 | 0.6 | 6.0 | 10460 |
YVP630-6 | 3150 | 221 | 993 | 95.7 | 0.86 | 1.8 | 0.6 | 6.0 | 11080 |
Table 2 (Continued) YVP series high voltage variable frequency three-phase asynchronous motor technical data (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP630-6 | 3550 | 249 | 993 | 95.8 | 0.86 | 1.8 | 0.6 | 6.0 | |
YVP400-8 | 250 | 21 | 739 | 91.3 | 0.76 | 1.8 | 0.7 | 6.0 | 3340 |
YVP400-8 | 280 | 23 | 739 | 91.6 | 0.76 | 1.8 | 0.7 | 6.0 | 3420 |
YVP400-8 | 315 | 26 | 738 | 92.1 | 0.77 | 1.8 | 0.7 | 6.0 | 3525 |
YVP400-8 | 355 | 29 | 738 | 92.4 | 0.77 | 1.8 | 0.7 | 6.0 | 3650 |
YVP400-8 | 400 | 32 | 740 | 92.5 | 0.78 | 1.8 | 0.7 | 6.0 | 3770 |
YVP400-8 | 450 | 36 | 740 | 92.7 | 0.78 | 1.8 | 0.7 | 6.0 | 3855 |
YVP450-8 | 500 | 39 | 740 | 93.1 | 0.79 | 1.8 | 0.7 | 6.0 | 4495 |
YVP450-8 | 560 | 44 | 740 | 93.3 | 0.79 | 1.8 | 0.7 | 6.0 | 4560 |
YVP450-8 | 630 | 47 | 743 | 93.8 | 0.82 | 1.8 | 0.7 | 6.0 | 4730 |
YVP450-8 | 710 | 53 | 743 | 94.0 | 0.82 | 1.8 | 0.7 | 6.0 | 4840 |
YVP500-8 | 800 | 60 | 743 | 94.2 | 0.82 | 1.8 | 0.7 | 6.0 | 5860 |
YVP500-8 | 900 | 67 | 743 | 94.3 | 0.82 | 1.8 | 0.7 | 6.0 | 6030 |
YVP500-8 | 1000 | 74 | 743 | 94.5 | 0.83 | 1.8 | 0.7 | 6.0 | 6245 |
YVP500-8 | 1120 | 82 | 743 | 94.7 | 0.83 | 1.8 | 0.7 | 6.0 | 6435 |
YVP560-8 | 1250 | 92 | 743 | 94.8 | 0.83 | 1.8 | 0.7 | 6.0 | 7735 |
YVP560-8 | 1400 | 103 | 743 | 94.9 | 0.83 | 1.8 | 0.7 | 6.0 | 8100 |
YVP560-8 | 1600 | 117 | 744 | 94.9 | 0.83 | 1.8 | 0.7 | 6.0 | 8280 |
YVP560-8 | 1800 | 132 | 743 | 94.9 | 0.83 | 1.8 | 0.7 | 6.0 | 8500 |
YVP630-8 | 2000 | 145 | 744 | 94.9 | 0.84 | 1.8 | 0.7 | 6.0 | 10250 |
YVP630-8 | 2240 | 162 | 743 | 95.0 | 0.84 | 1.8 | 0.7 | 6.0 | 10780 |
YVP630-8 | 2500 | 181 | 744 | 95.1 | 0.84 | 1.8 | 0.7 | 6.0 | 10910 |
YVP630-8 | 2800 | 202 | 743 | 95.2 | 0.84 | 1.8 | 0.7 | 6.0 | 11290 |
YVP400-10 | 200 | 18 | 592 | 91.0 | 0.72 | 1.8 | 0.7 | 5.5 | 3470 |
YVP400-10 | 220 | 19 | 592 | 91.0 | 0.72 | 1.8 | 0.7 | 5.5 | 3530 |
YVP400-10 | 250 | 22 | 592 | 91.2 | 0.73 | 1.8 | 0.7 | 5.5 | 3590 |
YVP400-10 | 280 | 24 | 591 | 91.6 | 0.74 | 1.8 | 0.7 | 5.5 | 3650 |
YVP400-10 | 315 | 27 | 592 | 91.9 | 0.74 | 1.8 | 0.7 | 5.5 | 3720 |
YVP400-10 | 355 | 30 | 592 | 92.1 | 0.75 | 1.8 | 0.7 | 5.5 | 3860 |
YVP450-10 | 400 | 33 | 592 | 92.3 | 0.75 | 1.8 | 0.7 | 5.5 | 4470 |
YVP450-10 | 450 | 36 | 592 | 92.5 | 0.77 | 1.8 | 0.7 | 5.5 | 4505 |
YVP450-10 | 500 | 40 | 594 | 92.7 | 0.77 | 1.8 | 0.7 | 5.5 | 4595 |
YVP450-10 | 560 | 45 | 593 | 92.9 | 0.78 | 1.8 | 0.7 | 5.5 | 4790 |
YVP500-10 | 630 | 50 | 593 | 93.1 | 0.78 | 1.8 | 0.7 | 5.5 | 5680 |
YVP500-10 | 710 | 56 | 593 | 93.3 | 0.78 | 1.8 | 0.7 | 5.5 | 5870 |
YVP500-10 | 800 | 62 | 594 | 93.8 | 0.80 | 1.8 | 0.7 | 5.5 | 6070 |
YVP500-10 | 900 | 69 | 594 | 94.0 | 0.80 | 1.8 | 0.7 | 5.5 | 6230 |
YVP560-10 | 1000 | 77 | 594 | 94.1 | 0.80 | 1.8 | 0.7 | 6.0 | 7100 |
YVP560-10 | 1120 | 86 | 594 | 94.2 | 0.80 | 1.8 | 0.7 | 6.0 | 7300 |
Table 2 (Continued) YVP series high voltage variable frequency three-phase asynchronous motor technical data (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP560-10 | 1250 | 96 | 595 | 94.3 | 0.80 | 1.8 | 0.7 | 6.0 | 7500 |
YVP560-10 | 1400 | 107 | 594 | 94.3 | 0.80 | 1.8 | 0.7 | 6.0 | 8050 |
YVP630-10 | 1600 | 121 | 594 | 94.3 | 0.81 | 1.8 | 0.7 | 6.0 | 9700 |
YVP630-10 | 1800 | 136 | 594 | 94.4 | 0.81 | 1.8 | 0.7 | 6.0 | 9930 |
YVP630-10 | 2000 | 151 | 594 | 94.6 | 0.81 | 1.8 | 0.7 | 6.0 | 10500 |
YVP630-10 | 2240 | 169 | 594 | 94.7 | 0.81 | 1.8 | 0.7 | 6.0 | 10730 |
YVP450-12 | 315 | 27 | 494 | 91.6 | 0.73 | 1.8 | 0.7 | 5.5 | 4475 |
YVP450-12 | 355 | 31 | 493 | 91.8 | 0.73 | 1.8 | 0.7 | 5.5 | 4505 |
YVP450-12 | 400 | 34 | 495 | 92.0 | 0.73 | 1.8 | 0.7 | 5.5 | 4605 |
YVP450-12 | 450 | 39 | 495 | 92.2 | 0.73 | 1.8 | 0.7 | 5.5 | 4800 |
YVP500-12 | 500 | 43 | 495 | 92.5 | 0.73 | 1.8 | 0.7 | 5.5 | 5840 |
YVP500-12 | 560 | 47 | 494 | 92.9 | 0.74 | 1.8 | 0.7 | 5.5 | 6050 |
YVP500-12 | 630 | 53 | 494 | 93.1 | 0.74 | 1.8 | 0.7 | 5.5 | 6250 |
YVP500-12 | 710 | 59 | 494 | 93.3 | 0.74 | 1.8 | 0.7 | 5.5 | 6450 |
YVP560-12 | 800 | 67 | 494 | 93.8 | 0.74 | 1.8 | 0.7 | 6.0 | 7200 |
YVP560-12 | 900 | 75 | 494 | 93.8 | 0.74 | 1.8 | 0.7 | 6.0 | 7380 |
YVP560-12 | 1000 | 83 | 495 | 93.8 | 0.74 | 1.8 | 0.7 | 6.0 | 7950 |
YVP560-12 | 1120 | 93 | 495 | 93.8 | 0.74 | 1.8 | 0.7 | 6.0 | 8160 |
YVP630-12 | 1250 | 103 | 495 | 93.8 | 0.75 | 1.8 | 0.7 | 6.0 | 9630 |
YVP630-12 | 1400 | 115 | 495 | 93.9 | 0.75 | 1.8 | 0.7 | 6.0 | 9880 |
YVP630-12 | 1600 | 131 | 495 | 94.0 | 0.75 | 1.8 | 0.7 | 6.0 | 10470 |
YVP630-12 | 1800 | 147 | 495 | 94.1 | 0.75 | 1.8 | 0.7 | 6.0 | 10710 |
As one of China professional large electric motor manufacturers, we focus on providing high-quality three phase inverter motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M2 which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about three phase inverter motor, asynchronous inverter motors, high voltage motor,variable frequency motor,high voltage induction motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
We're professional three phase inverter motor manufacturers and suppliers in China, to buy or wholesale asynchronous inverter motors from our factory. For quotation or if you have any questions, contact us now for customized high voltage motor and price.
● high power index;
● low noise and vibration;
● high reliability;
● easy use;
● installation and maintenance.
This series of products are mainly suitable for general mechanical equipment such as fans, water pumps, compressors, crushers, chip cutting machines, transportation machinery or other similar mechanical equipment in industries such as petroleum, chemical industry, coal, power stations, metallurgy, transportation, textile, medicine, and grain processing.
Table 1 Technical data of YVP new series high voltage variable frequency three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP315-2 | 200 | 25 | 2971 | 92.0 | 0.85 | 1.8 | 0.6 | 7.0 | 2345 |
YVP315-2 | 220 | 27 | 2971 | 92.0 | 0.86 | 1.8 | 0.6 | 7.0 | 2370 |
YVP315-2 | 250 | 30 | 2968 | 92.2 | 0.86 | 1.8 | 0.6 | 7.0 | 2400 |
YVP315-2 | 280 | 34 | 2969 | 92.3 | 0.86 | 1.8 | 0.6 | 7.0 | 2450 |
YVP315-2 | 315 | 38 | 2975 | 92.7 | 0.86 | 1.8 | 0.6 | 7.0 | 2500 |
YVP315-2 | 355 | 43 | 2976 | 93.0 | 0.86 | 1.8 | 0.6 | 7.0 | 2570 |
YVP355-2 | 400 | 48 | 2974 | 93.4 | 0.86 | 1.8 | 0.6 | 7.0 | 2780 |
YVP355-2 | 450 | 54 | 2973 | 93.7 | 0.86 | 1.8 | 0.6 | 7.0 | 2850 |
YVP355-2 | 500 | 59 | 2977 | 94.0 | 0.87 | 1.8 | 0.6 | 7.0 | 2950 |
Table 1 (continued) Technical data of YVP new series high voltage variable frequency three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP355-2 | 560 | 66 | 2976 | 94.1 | 0.87 | 1.8 | 0.6 | 7.0 | 3030 |
YVP400-2 | 630 | 74 | 2976 | 94.3 | 0.87 | 1.8 | 0.6 | 7.0 | 3630 |
YVP400-2 | 710 | 83 | 2976 | 94.4 | 0.87 | 1.8 | 0.6 | 7.0 | 3730 |
YVP400-2 | 800 | 93 | 2975 | 94.7 | 0.87 | 1.8 | 0.6 | 7.0 | 3836 |
YVP400-2 | 900 | 105 | 2976 | 94.8 | 0.87 | 1.8 | 0.6 | 7.0 | 3920 |
YVP450-2 | 1000 | 115 | 2977 | 94.9 | 0.88 | 1.8 | 0.6 | 7.0 | 4200 |
YVP450-2 | 1120 | 129 | 2976 | 95.0 | 0.88 | 1.8 | 0.6 | 7.0 | 4340 |
YVP450-2 | 1250 | 144 | 2981 | 95.2 | 0.88 | 1.8 | 0.6 | 7.0 | 4500 |
YVP450-2 | 1400 | 161 | 2981 | 95.3 | 0.88 | 1.8 | 0.6 | 7.0 | 4650 |
YVP500-2 | 1600 | 183 | 2980 | 95.4 | 0.88 | 1.8 | 0.6 | 7.0 | 5825 |
YVP500-2 | 1800 | 206 | 2980 | 95.5 | 0.88 | 1.8 | 0.6 | 7.0 | 6080 |
YVP500-2 | 2000 | 229 | 2981 | 95.7 | 0.88 | 1.8 | 0.6 | 7.0 | 6350 |
YVP500-2 | 2240 | 256 | 2982 | 95.8 | 0.88 | 1.8 | 0.6 | 7.0 | 6575 |
YVP560-2 | 2500 | 282 | 2983 | 95.9 | 0.89 | 1.8 | 0.6 | 7.0 | 8600 |
YVP560-2 | 2800 | 315 | 2983 | 96.0 | 0.89 | 1.8 | 0.6 | 7.0 | 8900 |
YVP560-2 | 3150 | 354 | 2984 | 96.1 | 0.89 | 1.8 | 0.6 | 7.0 | 9210 |
YVP560-2 | 3550 | 399 | 2984 | 96.1 | 0.89 | 1.8 | 0.6 | 7.0 | 9710 |
YVP630-2 | 4000 | 450 | 2984 | 96.2 | 0.89 | 1.8 | 0.6 | 7.0 | 11250 |
YVP630-2 | 4500 | 505 | 2984 | 96.3 | 0.89 | 1.8 | 0.6 | 7.0 | 11560 |
YVP630-2 | 5000 | 561 | 2984 | 96.3 | 0.89 | 1.8 | 0.6 | 7.0 | 11910 |
YVP315-4 | 200 | 25 | 1482 | 92.3 | 0.85 | 1.8 | 0.8 | 6.5 | 2000 |
YVP315-4 | 220 | 27 | 1483 | 92.5 | 0.85 | 1.8 | 0.8 | 6.5 | 2090 |
YVP315-4 | 250 | 31 | 1481 | 92.6 | 0.85 | 1.8 | 0.8 | 6.5 | 2250 |
YVP315-4 | 280 | 34 | 1482 | 92.7 | 0.86 | 1.8 | 0.8 | 6.5 | 2340 |
YVP315-4 | 315 | 38 | 1484 | 92.9 | 0.86 | 1.8 | 0.8 | 6.5 | 2425 |
YVP315-4 | 355 | 43 | 1482 | 93.1 | 0.86 | 1.8 | 0.8 | 6.5 | 2500 |
YVP355-4 | 400 | 48 | 1484 | 93.3 | 0.86 | 1.8 | 0.8 | 6.5 | 2630 |
YVP355-4 | 450 | 54 | 1483 | 93.5 | 0.86 | 1.8 | 0.8 | 6.5 | 2720 |
YVP355-4 | 500 | 59 | 1485 | 93.7 | 0.87 | 1.8 | 0.8 | 6.5 | 2810 |
YVP355-4 | 560 | 66 | 1485 | 93.9 | 0.87 | 1.8 | 0.8 | 6.5 | 2910 |
YVP400-4 | 630 | 74 | 1485 | 94.2 | 0.87 | 1.8 | 0.8 | 6.5 | 3455 |
YVP400-4 | 710 | 83 | 1485 | 94.4 | 0.87 | 1.8 | 0.8 | 6.5 | 3595 |
YVP400-4 | 800 | 94 | 1488 | 94.6 | 0.87 | 1.8 | 0.8 | 6.5 | 3720 |
YVP400-4 | 900 | 105 | 1487 | 94.7 | 0.87 | 1.8 | 0.8 | 6.5 | 3850 |
YVP450-4 | 1000 | 117 | 1488 | 94.8 | 0.87 | 1.8 | 0.8 | 6.5 | 4920 |
YVP450-4 | 1120 | 129 | 1487 | 94.9 | 0.88 | 1.8 | 0.8 | 6.5 | 5020 |
YVP450-4 | 1250 | 144 | 1487 | 95.1 | 0.88 | 1.8 | 0.8 | 6.5 | 5150 |
YVP450-4 | 1400 | 161 | 1487 | 95.2 | 0.88 | 1.8 | 0.8 | 6.5 | 5230 |
Table 1 (continued) Technical data of YVP new series high voltage variable frequency three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current |
YVP500-4 | 1600 | 182 | 95.3 | 0.89 | 1.8 | 0.7 | 6.5 | 5800 |
YVP500-4 | 1800 | 204 | 95.4 | 0.89 | 1.8 | 0.7 | 6.5 | 6020 |
YVP500-4 | 2000 | 226 | 95.6 | 0.89 | 1.8 | 0.7 | 6.5 | 6280 |
YVP500-4 | 2240 | 253 | 95.7 | 0.89 | 1.8 | 0.7 | 6.5 | 6610 |
YVP560-4 | 2500 | 282 | 95.8 | 0.89 | 1.8 | 0.6 | 6.5 | 7730 |
YVP560-4 | 2800 | 316 | 95.9 | 0.89 | 1.8 | 0.6 | 6.5 | 7950 |
YVP560-4 | 3150 | 354 | 96.1 | 0.89 | 1.8 | 0.6 | 6.5 | 8330 |
YVP560-4 | 3550 | 399 | 96.1 | 0.89 | 1.8 | 0.6 | 6.5 | 8630 |
YVP630-4 | 4000 | 450 | 96.2 | 0.89 | 1.8 | 0.6 | 6.5 | 10390 |
YVP630-4 | 4500 | 506 | 96.2 | 0.89 | 1.8 | 0.6 | 6.5 | 10895 |
YVP630-4 | 5000 | 561 | 96.4 | 0.89 | 1.8 | 0.6 | 6.5 | 11160 |
YVP315-6 | 160 | 20 | 92.0 | 0.83 | 1.8 | 0.8 | 6.0 | 2260 |
YVP315-6 | 185 | 23 | 92.0 | 0.83 | 1.8 | 0.8 | 6.0 | 2300 |
YVP315-6 | 200 | 25 | 92.1 | 0.83 | 1.8 | 0.8 | 6.0 | 2355 |
YVP315-6 | 220 | 28 | 92.2 | 0.83 | 1.8 | 0.8 | 6.0 | 2430 |
YVP315-6 | 250 | 31 | 92.5 | 0.83 | 1.8 | 0.8 | 6.0 | 2490 |
YVP315-6 | 280 | 35 | 92.7 | 0.83 | 1.8 | 0.8 | 6.0 | 2570 |
YVP355-6 | 315 | 39 | 93.0 | 0.83 | 1.8 | 0.8 | 6.0 | 2710 |
YVP355-6 | 355 | 44 | 93.2 | 0.83 | 1.8 | 0.8 | 6.0 | 2820 |
YVP355-6 | 400 | 50 | 93.3 | 0.83 | 1.8 | 0.8 | 6.0 | 2900 |
YVP355-6 | 450 | 55 | 93.6 | 0.84 | 1.8 | 0.8 | 6.0 | 3010 |
YVP400-6 | 500 | 60 | 93.9 | 0.85 | 1.8 | 0.8 | 6.0 | 3450 |
YVP400-6 | 560 | 67 | 94.1 | 0.85 | 1.8 | 0.8 | 6.0 | 3560 |
YVP400-6 | 630 | 76 | 94.2 | 0.85 | 1.8 | 0.8 | 6.0 | 3660 |
YVP400-6 | 710 | 85 | 94.4 | 0.85 | 1.8 | 0.8 | 6.0 | 3790 |
YVP450-6 | 800 | 96 | 94.6 | 0.85 | 1.8 | 0.8 | 6.0 | 4420 |
YVP450-6 | 900 | 108 | 94.7 | 0.85 | 1.8 | 0.8 | 6.0 | 4560 |
YVP450-6 | 1000 | 119 | 94.8 | 0.85 | 1.8 | 0.8 | 6.0 | 4710 |
YVP450-6 | 1120 | 132 | 94.9 | 0.86 | 1.8 | 0.8 | 6.0 | 4815 |
YVP500-6 | 1250 | 147 | 95.1 | 0.86 | 1.8 | 0.7 | 6.0 | 5760 |
YVP500-6 | 1400 | 165 | 95.2 | 0.86 | 1.8 | 0.7 | 6.0 | 5950 |
YVP500-6 | 1600 | 188 | 95.3 | 0.86 | 1.8 | 0.7 | 6.0 | 6200 |
YVP500-6 | 1800 | 211 | 95.4 | 0.86 | 1.8 | 0.7 | 6.0 | 6420 |
YVP560-6 | 2000 | 234 | 95.6 | 0.86 | 1.8 | 0.7 | 6.5 | 7878 |
YVP560-6 | 2240 | 262 | 95.7 | 0.86 | 1.8 | 0.7 | 6.5 | 8215 |
YVP560-6 | 2500 | 292 | 95.7 | 0.86 | 1.8 | 0.7 | 6.5 | 8545 |
YVP560-6 | 2800 | 327 | 95.8 | 0.86 | 1.8 | 0.7 | 6.5 | 8765 |
YVP630-6 | 3150 | 363 | 96.0 | 0.87 | 1.8 | 0.7 | 6.5 | 10390 |
Table 1 (continued) Technical data of YVP new series high voltage variable frequency three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current |
YVP630-6 | 3550 | 409 | 96.0 | 0.87 | 1.8 | 0.7 | 6.5 | 10960 |
YVP630-6 | 4000 | 460 | 96.1 | 0.87 | 1.8 | 0.7 | 6.5 | 11500 |
YVP355-8 | 200 | 27 | 92.0 | 0.78 | 1.8 | 0.8 | 5.5 | 2500 |
YVP355-8 | 220 | 29 | 92.1 | 0.78 | 1.8 | 0.8 | 5.5 | 2585 |
YVP355-8 | 250 | 33 | 92.2 | 0.79 | 1.8 | 0.8 | 5.5 | 2660 |
YVP355-8 | 280 | 37 | 92.4 | 0.79 | 1.8 | 0.8 | 5.5 | 2810 |
YVP355-8 | 315 | 41 | 92.7 | 0.80 | 1.8 | 0.8 | 5.5 | 2900 |
YVP355-8 | 355 | 46 | 92.8 | 0.80 | 1.8 | 0.8 | 5.5 | 3000 |
YVP400-8 | 400 | 52 | 93.0 | 0.80 | 1.8 | 0.8 | 5.5 | 3610 |
YVP400-8 | 450 | 57 | 93.1 | 0.81 | 1.8 | 0.8 | 5.5 | 3705 |
YVP400-8 | 500 | 63 | 93.7 | 0.81 | 1.8 | 0.8 | 5.5 | 3785 |
YVP400-8 | 560 | 71 | 93.8 | 0.81 | 1.8 | 0.8 | 5.5 | 3880 |
YVP450-8 | 630 | 79 | 93.9 | 0.82 | 1.8 | 0.8 | 5.5 | 4510 |
YVP450-8 | 710 | 89 | 94.0 | 0.82 | 1.8 | 0.8 | 5.5 | 4610 |
YVP450-8 | 800 | 97 | 94.2 | 0.84 | 1.8 | 0.8 | 5.5 | 4830 |
YVP450-8 | 900 | 109 | 94.3 | 0.84 | 1.8 | 0.8 | 5.5 | 4930 |
YVP500-8 | 1000 | 121 | 94.4 | 0.84 | 1.8 | 0.8 | 5.5 | 5930 |
YVP500-8 | 1120 | 136 | 94.5 | 0.84 | 1.8 | 0.8 | 5.5 | 6150 |
YVP500-8 | 1250 | 151 | 94.7 | 0.84 | 1.8 | 0.8 | 5.5 | 6350 |
YVP500-8 | 1400 | 169 | 94.8 | 0.84 | 1.8 | 0.8 | 5.5 | 6600 |
YVP560-8 | 1600 | 193 | 94.9 | 0.84 | 1.8 | 0.7 | 6.0 | 7750 |
YVP560-8 | 1800 | 217 | 95.0 | 0.84 | 1.8 | 0.7 | 6.0 | 8130 |
YVP560-8 | 2000 | 241 | 95.2 | 0.84 | 1.8 | 0.7 | 6.0 | 8550 |
YVP560-8 | 2240 | 269 | 95.3 | 0.84 | 1.8 | 0.7 | 6.0 | 8610 |
YVP630-8 | 2500 | 297 | 95.4 | 0.85 | 1.8 | 0.7 | 6.0 | 10680 |
YVP630-8 | 2800 | 332 | 95.5 | 0.85 | 1.8 | 0.7 | 6.0 | 11100 |
YVP630-8 | 3150 | 373 | 95.6 | 0.85 | 1.8 | 0.7 | 6.0 | 11540 |
YVP400-10 | 250 | 35 | 91.5 | 0.76 | 1.8 | 0.8 | 5.5 | 3410 |
YVP400-10 | 280 | 38 | 91.7 | 0.78 | 1.8 | 0.8 | 5.5 | 3510 |
YVP400-10 | 315 | 42 | 91.9 | 0.79 | 1.8 | 0.8 | 5.5 | 3580 |
YVP400-10 | 355 | 47 | 92.1 | 0.79 | 1.8 | 0.8 | 5.5 | 3670 |
YVP400-10 | 400 | 52 | 92.6 | 0.80 | 1.8 | 0.8 | 5.5 | 3780 |
YVP400-10 | 450 | 58 | 92.7 | 0.80 | 1.8 | 0.8 | 5.5 | 3890 |
YVP450-10 | 500 | 65 | 93.0 | 0.80 | 1.8 | 0.8 | 5.5 | 4365 |
YVP450-10 | 560 | 72 | 93.1 | 0.80 | 1.8 | 0.8 | 5.5 | 4510 |
YVP450-10 | 630 | 81 | 93.2 | 0.80 | 1.8 | 0.8 | 5.5 | 4640 |
YVP450-10 | 710 | 89 | 93.4 | 0.82 | 1.8 | 0.8 | 5.5 | 4770 |
YVP500-10 | 800 | 100 | 93.7 | 0.82 | 1.8 | 0.8 | 5.5 | 5670 |
Table 1 (continued) Technical data of YVP series high voltage variable frequency three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP500-10 | 900 | 113 | 593 | 93.8 | 0.82 | 1.8 | 0.8 | 5.5 | 6005 |
YVP500-10 | 1000 | 125 | 594 | 93.9 | 0.82 | 1.8 | 0.8 | 5.5 | 6250 |
YVP500-10 | 1120 | 140 | 593 | 94.1 | 0.82 | 1.8 | 0.8 | 5.5 | 6450 |
YVP560-10 | 1250 | 155 | 594 | 94.4 | 0.82 | 1.8 | 0.7 | 6.0 | 7200 |
YVP560-10 | 1400 | 174 | 594 | 94.5 | 0.82 | 1.8 | 0.7 | 6.0 | 7335 |
YVP560-10 | 1600 | 198 | 594 | 94.6 | 0.82 | 1.8 | 0.7 | 6.0 | 7640 |
YVP560-10 | 1800 | 223 | 594 | 94.7 | 0.82 | 1.8 | 0.7 | 6.0 | 7835 |
YVP630-10 | 2000 | 247 | 594 | 94.9 | 0.82 | 1.8 | 0.7 | 6.0 | 10060 |
YVP630-10 | 2240 | 277 | 594 | 95.0 | 0.82 | 1.8 | 0.7 | 6.0 | 10320 |
YVP630-10 | 2500 | 308 | 594 | 95.1 | 0.82 | 1.8 | 0.7 | 6.0 | 10930 |
YVP450-12 | 400 | 55 | 494 | 92.6 | 0.75 | 1.8 | 0.7 | 6.0 | 4300 |
YVP450-12 | 450 | 62 | 494 | 92.7 | 0.75 | 1.8 | 0.7 | 6.0 | 4375 |
YVP450-12 | 500 | 65 | 494 | 93.1 | 0.79 | 1.8 | 0.7 | 6.0 | 4510 |
YVP450-12 | 560 | 73 | 494 | 93.2 | 0.79 | 1.8 | 0.7 | 6.0 | 4775 |
YVP500-12 | 630 | 82 | 494 | 93.3 | 0.79 | 1.8 | 0.7 | 6.0 | 5945 |
YVP500-12 | 710 | 93 | 494 | 93.4 | 0.79 | 1.8 | 0.7 | 6.0 | 6190 |
YVP500-12 | 800 | 104 | 494 | 93.7 | 0.79 | 1.8 | 0.7 | 6.0 | 5410 |
YVP500-12 | 900 | 117 | 494 | 93.8 | 0.79 | 1.8 | 0.7 | 6.0 | 6620 |
YVP560-12 | 1000 | 130 | 494 | 93.9 | 0.79 | 1.8 | 0.7 | 6.0 | 7370 |
YVP560-12 | 1120 | 145 | 494 | 94.0 | 0.79 | 1.8 | 0.7 | 6.0 | 7570 |
YVP560-12 | 1250 | 162 | 495 | 94.2 | 0.79 | 1.8 | 0.7 | 6.0 | 8155 |
YVP560-12 | 1400 | 181 | 495 | 94.3 | 0.79 | 1.8 | 0.7 | 6.0 | 8355 |
YVP630-12 | 1600 | 207 | 495 | 94.3 | 0.79 | 1.8 | 0.7 | 6.0 | 9960 |
YVP630-12 | 1800 | 232 | 495 | 94.4 | 0.79 | 1.8 | 0.7 | 6.0 | 10210 |
YVP630-12 | 2000 | 258 | 495 | 94.6 | 0.79 | 1.8 | 0.7 | 6.0 | 10980 |
YVP630-12 | 2240 | 288 | 495 | 94．7 | 0.79 | 1.8 | 0.7 | 6.0 | 11290 |
Table 2 Technical data of YVP series high voltage variable frequency three-phase asynchronous motor (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP355-2 | 250 | 18 | 2977 | 92.1 | 0.86 | 1.8 | 0.6 | 7.0 | 2495 |
YVP355-2 | 280 | 20 | 2975 | 92.3 | 0.86 | 1.8 | 0.6 | 7.0 | 2585 |
YVP355-2 | 315 | 23 | 2976 | 92.7 | 0.86 | 1.8 | 0.6 | 7.0 | 2690 |
YVP355-2 | 355 | 25 | 2975 | 93.1 | 0.87 | 1.8 | 0.6 | 7.0 | 2780 |
YVP355-2 | 400 | 28 | 2977 | 93.4 | 0.87 | 1.8 | 0.6 | 7.0 | 2860 |
YVP355-2 | 450 | 32 | 2976 | 93.6 | 0.87 | 1.8 | 0.6 | 7.0 | 2950 |
YVP400-2 | 500 | 35 | 2976 | 93.8 | 0.87 | 1.8 | 0.6 | 7.0 | 3450 |
YVP400-2 | 560 | 40 | 2977 | 93.9 | 0.87 | 1.8 | 0.6 | 7.0 | 3555 |
YVP400-2 | 630 | 44 | 2978 | 94.0 | 0.87 | 1.8 | 0.6 | 7.0 | 3670 |
YVP400-2 | 710 | 50 | 2979 | 94.1 | 0.88 | 1.8 | 0.6 | 7.0 | 3770 |
YVP450-2 | 800 | 56 | 2978 | 94.3 | 0.88 | 1.8 | 0.6 | 7.0 | 4200 |
YVP450-2 | 900 | 63 | 2977 | 94.4 | 0.88 | 1.8 | 0.6 | 7.0 | 4340 |
YVP450-2 | 1000 | 69 | 2983 | 94.5 | 0.88 | 1.8 | 0.6 | 7.0 | 4500 |
YVP450-2 | 1120 | 78 | 2983 | 94.7 | 0.88 | 1.8 | 0.6 | 7.0 | 4650 |
YVP500-2 | 1250 | 85 | 2982 | 94.9 | 0.89 | 1.8 | 0.6 | 7.0 | 5715 |
YVP500-2 | 1400 | 96 | 2983 | 95.1 | 0.89 | 1.8 | 0.6 | 7.0 | 5940 |
YVP500-2 | 1600 | 109 | 2983 | 95.2 | 0.89 | 1.8 | 0.6 | 7.0 | 6195 |
YVP500-2 | 1800 | 121 | 2982 | 95.3 | 0.90 | 1.8 | 0.6 | 7.0 | 6435 |
YVP560-2 | 2000 | 134 | 2983 | 95.5 | 0.90 | 1.8 | 0.6 | 7.0 | 8600 |
YVP560-2 | 2240 | 150 | 2983 | 95.7 | 0.90 | 1.8 | 0.6 | 7.0 | 8900 |
YVP560-2 | 2500 | 168 | 2984 | 95.7 | 0.90 | 1.8 | 0.6 | 7.0 | 9210 |
YVP560-2 | 2800 | 188 | 2984 | 95.7 | 0.90 | 1.8 | 0.6 | 7.0 | 9710 |
YVP630-2 | 3150 | 211 | 2985 | 95.8 | 0.90 | 1.8 | 0.6 | 7.0 | 11450 |
YVP630-2 | 3550 | 238 | 2985 | 95.8 | 0.90 | 1.8 | 0.6 | 7.0 | 11755 |
YVP630-2 | 4000 | 268 | 2985 | 95.9 | 0.90 | 1.8 | 0.6 | 7.0 | 12050 |
YVP630-2 | 4500 | 301 | 2985 | 95.9 | 0.90 | 1.8 | 0.6 | 7.0 | 12700 |
YVP355-4 | 250 | 18 | 1484 | 92.1 | 0.85 | 1.8 | 0.7 | 7.0 | 2460 |
YVP355-4 | 280 | 21 | 1484 | 92.2 | 0.85 | 1.8 | 0.7 | 7.0 | 2530 |
YVP355-4 | 315 | 23 | 1484 | 92.5 | 0.85 | 1.8 | 0.7 | 7.0 | 2590 |
YVP355-4 | 355 | 26 | 1483 | 92.6 | 0.86 | 1.8 | 0.7 | 7.0 | 2675 |
YVP355-4 | 400 | 29 | 1487 | 92.8 | 0.86 | 1.8 | 0.7 | 7.0 | 2760 |
YVP355-4 | 450 | 32 | 1486 | 93.2 | 0.86 | 1.8 | 0.7 | 7.0 | 2845 |
YVP400-4 | 500 | 36 | 1486 | 93.3 | 0.86 | 1.8 | 0.7 | 7.0 | 3475 |
YVP400-4 | 560 | 40 | 1487 | 93.6 | 0.86 | 1.8 | 0.7 | 7.0 | 3520 |
YVP400-4 | 630 | 45 | 1489 | 93.8 | 0.86 | 1.8 | 0.7 | 7.0 | 3590 |
YVP400-4 | 710 | 50 | 1488 | 94.4 | 0.87 | 1.8 | 0.7 | 7.0 | 3680 |
YVP450-4 | 800 | 56 | 1488 | 94.6 | 0.87 | 1.8 | 0.7 | 7.0 | 4855 |
YVP450-4 | 900 | 62 | 1488 | 94.7 | 0.88 | 1.8 | 0.7 | 7.0 | 4995 |
Table 2 (Continued) YVP series high voltage variable frequency three-phase asynchronous motor technical data (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP450-4 | 1000 | 69 | 1488 | 94.8 | 0.88 | 1.8 | 0.7 | 7.0 | 5145 |
YVP450-4 | 1120 | 77 | 1488 | 94.9 | 0.88 | 1.8 | 0.7 | 7.0 | 5295 |
YVP500-4 | 1250 | 85 | 1489 | 95.0 | 0.89 | 1.8 | 0.7 | 7.0 | 5595 |
YVP500-4 | 1400 | 95 | 1487 | 95.3 | 0.89 | 1.8 | 0.7 | 7.0 | 5795 |
YVP500-4 | 1600 | 109 | 1492 | 95.4 | 0.89 | 1.8 | 0.7 | 7.0 | 6200 |
YVP500-4 | 1800 | 122 | 1492 | 95.5 | 0.89 | 1.8 | 0.7 | 7.0 | 6390 |
YVP560-4 | 2000 | 136 | 1491 | 95.7 | 0.89 | 1.8 | 0.7 | 7.0 | 7390 |
YVP560-4 | 2240 | 152 | 1491 | 95.8 | 0.89 | 1.8 | 0.7 | 7.0 | 7620 |
YVP560-4 | 2500 | 169 | 1491 | 95.8 | 0.89 | 1.8 | 0.7 | 7.0 | 8175 |
YVP560-4 | 2800 | 190 | 1492 | 95.8 | 0.89 | 1.8 | 0.7 | 7.0 | 8410 |
YVP630-4 | 3150 | 213 | 1491 | 95.9 | 0.89 | 1.8 | 0.6 | 7.0 | 9990 |
YVP630-4 | 3550 | 240 | 1491 | 95.9 | 0.89 | 1.8 | 0.6 | 7.0 | 10550 |
YVP630-4 | 4000 | 270 | 1491 | 96.0 | 0.89 | 1.8 | 0.6 | 7.0 | 11070 |
YVP630-4 | 4500 | 304 | 1491 | 96.0 | 0.89 | 1.8 | 0.6 | 7.0 | 11640 |
YVP355-6 | 200 | 16 | 987 | 91.2 | 0.80 | 1.8 | 0.7 | 6.0 | 2590 |
YVP355-6 | 220 | 17 | 988 | 91.4 | 0.80 | 1.8 | 0.7 | 6.0 | 2650 |
YVP355-6 | 250 | 20 | 987 | 91.6 | 0.80 | 1.8 | 0.7 | 6.0 | 2710 |
YVP355-6 | 280 | 22 | 986 | 91.8 | 0.80 | 1.8 | 0.7 | 6.0 | 2780 |
YVP355-6 | 315 | 24 | 988 | 92.1 | 0.82 | 1.8 | 0.7 | 6.0 | 2795 |
YVP355-6 | 355 | 27 | 988 | 92.4 | 0.83 | 1.8 | 0.7 | 6.0 | 2895 |
YVP400-6 | 400 | 30 | 987 | 92.6 | 0.83 | 1.8 | 0.7 | 6.0 | 3430 |
YVP400-6 | 450 | 34 | 987 | 92.8 | 0.83 | 1.8 | 0.7 | 6.0 | 3490 |
YVP400-6 | 500 | 37 | 988 | 93.2 | 0.83 | 1.8 | 0.7 | 6.0 | 3670 |
YVP400-6 | 560 | 41 | 989 | 93.5 | 0.84 | 1.8 | 0.7 | 6.0 | 3750 |
YVP450-6 | 630 | 46 | 989 | 93.8 | 0.84 | 1.8 | 0.7 | 6.0 | 4366 |
YVP450-6 | 710 | 52 | 989 | 94.0 | 0.84 | 1.8 | 0.7 | 6.0 | 4490 |
YVP450-6 | 800 | 58 | 990 | 94.2 | 0.84 | 1.8 | 0.7 | 6.0 | 4640 |
YVP450-6 | 900 | 65 | 990 | 94.4 | 0.85 | 1.8 | 0.7 | 6.0 | 4785 |
YVP500-6 | 1000 | 72 | 990 | 94.6 | 0.85 | 1.8 | 0.7 | 6.0 | 5490 |
YVP500-6 | 1120 | 80 | 990 | 94.8 | 0.85 | 1.8 | 0.7 | 6.0 | 5880 |
YVP500-6 | 1250 | 88 | 993 | 94.9 | 0.86 | 1.8 | 0.7 | 6.0 | 6090 |
YVP500-6 | 1400 | 99 | 993 | 95.3 | 0.86 | 1.8 | 0.7 | 6.0 | 6290 |
YVP560-6 | 1600 | 113 | 993 | 95.4 | 0.86 | 1.8 | 0.7 | 6.0 | 7350 |
YVP560-6 | 1800 | 127 | 993 | 95.5 | 0.86 | 1.8 | 0.7 | 6.0 | 7750 |
YVP560-6 | 2000 | 140 | 993 | 95.6 | 0.86 | 1.8 | 0.7 | 6.0 | 8100 |
YVP560-6 | 2240 | 157 | 993 | 95.6 | 0.86 | 1.8 | 0.7 | 6.0 | 8300 |
YVP630-6 | 2500 | 176 | 993 | 95.6 | 0.86 | 1.8 | 0.6 | 6.0 | 9970 |
YVP630-6 | 2800 | 197 | 993 | 95.6 | 0.86 | 1.8 | 0.6 | 6.0 | 10460 |
YVP630-6 | 3150 | 221 | 993 | 95.7 | 0.86 | 1.8 | 0.6 | 6.0 | 11080 |
Table 2 (Continued) YVP series high voltage variable frequency three-phase asynchronous motor technical data (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP630-6 | 3550 | 249 | 993 | 95.8 | 0.86 | 1.8 | 0.6 | 6.0 | |
YVP400-8 | 250 | 21 | 739 | 91.3 | 0.76 | 1.8 | 0.7 | 6.0 | 3340 |
YVP400-8 | 280 | 23 | 739 | 91.6 | 0.76 | 1.8 | 0.7 | 6.0 | 3420 |
YVP400-8 | 315 | 26 | 738 | 92.1 | 0.77 | 1.8 | 0.7 | 6.0 | 3525 |
YVP400-8 | 355 | 29 | 738 | 92.4 | 0.77 | 1.8 | 0.7 | 6.0 | 3650 |
YVP400-8 | 400 | 32 | 740 | 92.5 | 0.78 | 1.8 | 0.7 | 6.0 | 3770 |
YVP400-8 | 450 | 36 | 740 | 92.7 | 0.78 | 1.8 | 0.7 | 6.0 | 3855 |
YVP450-8 | 500 | 39 | 740 | 93.1 | 0.79 | 1.8 | 0.7 | 6.0 | 4495 |
YVP450-8 | 560 | 44 | 740 | 93.3 | 0.79 | 1.8 | 0.7 | 6.0 | 4560 |
YVP450-8 | 630 | 47 | 743 | 93.8 | 0.82 | 1.8 | 0.7 | 6.0 | 4730 |
YVP450-8 | 710 | 53 | 743 | 94.0 | 0.82 | 1.8 | 0.7 | 6.0 | 4840 |
YVP500-8 | 800 | 60 | 743 | 94.2 | 0.82 | 1.8 | 0.7 | 6.0 | 5860 |
YVP500-8 | 900 | 67 | 743 | 94.3 | 0.82 | 1.8 | 0.7 | 6.0 | 6030 |
YVP500-8 | 1000 | 74 | 743 | 94.5 | 0.83 | 1.8 | 0.7 | 6.0 | 6245 |
YVP500-8 | 1120 | 82 | 743 | 94.7 | 0.83 | 1.8 | 0.7 | 6.0 | 6435 |
YVP560-8 | 1250 | 92 | 743 | 94.8 | 0.83 | 1.8 | 0.7 | 6.0 | 7735 |
YVP560-8 | 1400 | 103 | 743 | 94.9 | 0.83 | 1.8 | 0.7 | 6.0 | 8100 |
YVP560-8 | 1600 | 117 | 744 | 94.9 | 0.83 | 1.8 | 0.7 | 6.0 | 8280 |
YVP560-8 | 1800 | 132 | 743 | 94.9 | 0.83 | 1.8 | 0.7 | 6.0 | 8500 |
YVP630-8 | 2000 | 145 | 744 | 94.9 | 0.84 | 1.8 | 0.7 | 6.0 | 10250 |
YVP630-8 | 2240 | 162 | 743 | 95.0 | 0.84 | 1.8 | 0.7 | 6.0 | 10780 |
YVP630-8 | 2500 | 181 | 744 | 95.1 | 0.84 | 1.8 | 0.7 | 6.0 | 10910 |
YVP630-8 | 2800 | 202 | 743 | 95.2 | 0.84 | 1.8 | 0.7 | 6.0 | 11290 |
YVP400-10 | 200 | 18 | 592 | 91.0 | 0.72 | 1.8 | 0.7 | 5.5 | 3470 |
YVP400-10 | 220 | 19 | 592 | 91.0 | 0.72 | 1.8 | 0.7 | 5.5 | 3530 |
YVP400-10 | 250 | 22 | 592 | 91.2 | 0.73 | 1.8 | 0.7 | 5.5 | 3590 |
YVP400-10 | 280 | 24 | 591 | 91.6 | 0.74 | 1.8 | 0.7 | 5.5 | 3650 |
YVP400-10 | 315 | 27 | 592 | 91.9 | 0.74 | 1.8 | 0.7 | 5.5 | 3720 |
YVP400-10 | 355 | 30 | 592 | 92.1 | 0.75 | 1.8 | 0.7 | 5.5 | 3860 |
YVP450-10 | 400 | 33 | 592 | 92.3 | 0.75 | 1.8 | 0.7 | 5.5 | 4470 |
YVP450-10 | 450 | 36 | 592 | 92.5 | 0.77 | 1.8 | 0.7 | 5.5 | 4505 |
YVP450-10 | 500 | 40 | 594 | 92.7 | 0.77 | 1.8 | 0.7 | 5.5 | 4595 |
YVP450-10 | 560 | 45 | 593 | 92.9 | 0.78 | 1.8 | 0.7 | 5.5 | 4790 |
YVP500-10 | 630 | 50 | 593 | 93.1 | 0.78 | 1.8 | 0.7 | 5.5 | 5680 |
YVP500-10 | 710 | 56 | 593 | 93.3 | 0.78 | 1.8 | 0.7 | 5.5 | 5870 |
YVP500-10 | 800 | 62 | 594 | 93.8 | 0.80 | 1.8 | 0.7 | 5.5 | 6070 |
YVP500-10 | 900 | 69 | 594 | 94.0 | 0.80 | 1.8 | 0.7 | 5.5 | 6230 |
YVP560-10 | 1000 | 77 | 594 | 94.1 | 0.80 | 1.8 | 0.7 | 6.0 | 7100 |
YVP560-10 | 1120 | 86 | 594 | 94.2 | 0.80 | 1.8 | 0.7 | 6.0 | 7300 |
Table 2 (Continued) YVP series high voltage variable frequency three-phase asynchronous motor technical data (10kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque Rated torque | Locked-rotor moment Rated torque | Locked-rotor current Rated current | Weight kg |
YVP560-10 | 1250 | 96 | 595 | 94.3 | 0.80 | 1.8 | 0.7 | 6.0 | 7500 |
YVP560-10 | 1400 | 107 | 594 | 94.3 | 0.80 | 1.8 | 0.7 | 6.0 | 8050 |
YVP630-10 | 1600 | 121 | 594 | 94.3 | 0.81 | 1.8 | 0.7 | 6.0 | 9700 |
YVP630-10 | 1800 | 136 | 594 | 94.4 | 0.81 | 1.8 | 0.7 | 6.0 | 9930 |
YVP630-10 | 2000 | 151 | 594 | 94.6 | 0.81 | 1.8 | 0.7 | 6.0 | 10500 |
YVP630-10 | 2240 | 169 | 594 | 94.7 | 0.81 | 1.8 | 0.7 | 6.0 | 10730 |
YVP450-12 | 315 | 27 | 494 | 91.6 | 0.73 | 1.8 | 0.7 | 5.5 | 4475 |
YVP450-12 | 355 | 31 | 493 | 91.8 | 0.73 | 1.8 | 0.7 | 5.5 | 4505 |
YVP450-12 | 400 | 34 | 495 | 92.0 | 0.73 | 1.8 | 0.7 | 5.5 | 4605 |
YVP450-12 | 450 | 39 | 495 | 92.2 | 0.73 | 1.8 | 0.7 | 5.5 | 4800 |
YVP500-12 | 500 | 43 | 495 | 92.5 | 0.73 | 1.8 | 0.7 | 5.5 | 5840 |
YVP500-12 | 560 | 47 | 494 | 92.9 | 0.74 | 1.8 | 0.7 | 5.5 | 6050 |
YVP500-12 | 630 | 53 | 494 | 93.1 | 0.74 | 1.8 | 0.7 | 5.5 | 6250 |
YVP500-12 | 710 | 59 | 494 | 93.3 | 0.74 | 1.8 | 0.7 | 5.5 | 6450 |
YVP560-12 | 800 | 67 | 494 | 93.8 | 0.74 | 1.8 | 0.7 | 6.0 | 7200 |
YVP560-12 | 900 | 75 | 494 | 93.8 | 0.74 | 1.8 | 0.7 | 6.0 | 7380 |
YVP560-12 | 1000 | 83 | 495 | 93.8 | 0.74 | 1.8 | 0.7 | 6.0 | 7950 |
YVP560-12 | 1120 | 93 | 495 | 93.8 | 0.74 | 1.8 | 0.7 | 6.0 | 8160 |
YVP630-12 | 1250 | 103 | 495 | 93.8 | 0.75 | 1.8 | 0.7 | 6.0 | 9630 |
YVP630-12 | 1400 | 115 | 495 | 93.9 | 0.75 | 1.8 | 0.7 | 6.0 | 9880 |
YVP630-12 | 1600 | 131 | 495 | 94.0 | 0.75 | 1.8 | 0.7 | 6.0 | 10470 |
YVP630-12 | 1800 | 147 | 495 | 94.1 | 0.75 | 1.8 | 0.7 | 6.0 | 10710 |
As one of China professional large electric motor manufacturers, we focus on providing high-quality three phase inverter motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M2 which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about three phase inverter motor, asynchronous inverter motors, high voltage motor,variable frequency motor,high voltage induction motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
