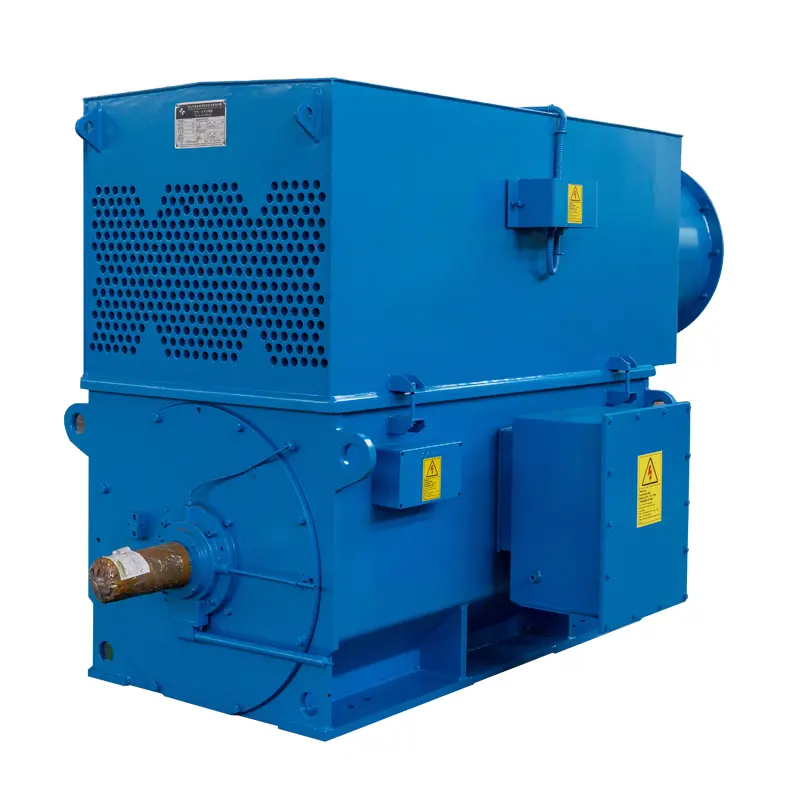

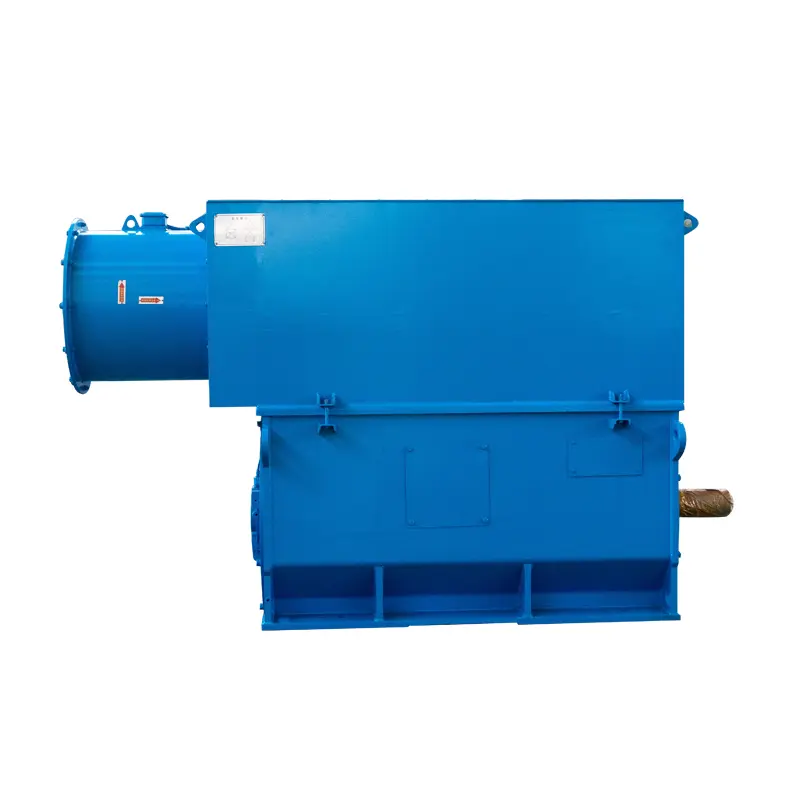

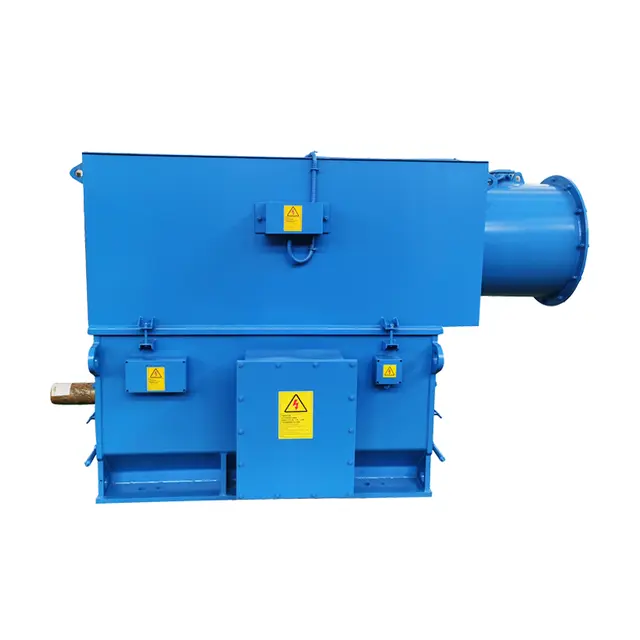

High Voltage AC Inverter Air Cooling Induction Motor YKKVP

Inverter induction motor is also called asynchronous inverter motors or high voltage motor.

● Frequency: 50/60 Hz;
● Frame size: H315mm-H1000mm;
● Power range: 200kW~10000kW;
● Number of poles: 2P~12P;
● Rated voltage: 6000V, 10000V;
● Insulation class: Class F;
● Protection class: IP54/55;
● Insulation method: IMB3;
● Cooling method: IC616, IC666;

● 20 Years’ Experience;
● 65,000 ㎡ Factory;
● ISO 9001:2016, ISO 14001:2015, ISO 45001:2020;
● OEM/ODM Accept.

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional inverter induction motor manufacturers and suppliers in China, to buy or wholesale asynchronous inverter motors from our factory. For quotation or if you have any questions, contact us now for customized high voltage motor and price.

Product features

● high power index;

● low noise and vibration;

● high reliability;

● easy use;

● installation and maintenance.

Product application

This series of products are mainly suitable for general mechanical equipment such as fans, water pumps, compressors, crushers, chip cutting machines, transportation machinery or other similar mechanical equipment in industries such as petroleum, chemical industry, coal, power stations, metallurgy, transportation, textile, medicine, and grain processing.

Technical Parameters of inverter induction motor

Table 1 Technical data of YKKVP series high voltage variable frequency three-phase asynchronous motor (6kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKKVP315-2	200	25	2971	91.6	0.84	1.8	0.6	7.0	2322
YKKVP315-2	220	27	2971	91.7	0.85	1.8	0.6	7.0	2385
YKKVP315-2	250	31	2968	91.8	0.85	1.8	0.6	7.0	2466
YKKVP315-2	280	34	2969	92.0	0.85	1.8	0.6	7.0	2530
YKKVP355-2	315	39	2975	92.4	0.85	1.8	0.6	7.0	2570
YKKVP355-2	355	43	2976	92.7	0.86	1.8	0.6	7.0	2635
YKKVP355-2	400	48	2974	93.0	0.86	1.8	0.6	7.0	2715
YKKVP355-2	450	54	2973	93.3	0.86	1.8	0.6	7.0	2795

Table 1 (continued) Technical data of YKKVP series high voltage variable frequency three-phase asynchronous motor (6kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKKVP400-2	500	60	2977	93.6	0.86	1.8	0.6	7.0	3305
YKKVP400-2	560	67	2976	93.8	0.86	1.8	0.6	7.0	3395
YKKVP400-2	630	75	2976	94.0	0.86	1.8	0.6	7.0	3513
YKKVP400-2	710	83	2976	94.1	0.87	1.8	0.6	7.0	3630
YKKVP450-2	800	94	2975	94.3	0.87	1.8	0.6	7.0	4359
YKKVP450-2	900	105	2976	94.5	0.87	1.8	0.6	7.0	4514
YKKVP450-2	1000	117	2977	94.6	0.87	1.8	0.6	7.0	4639
YKKVP450-2	1120	131	2976	94.7	0.87	1.8	0.6	7.0	4779
YKKVP500-2	1250	146	2981	94.9	0.87	1.8	0.6	7.0	5769
YKKVP500-2	1400	163	2981	95.0	0.87	1.8	0.6	7.0	5929
YKKVP500-2	1600	184	2980	95.1	0.88	1.8	0.6	7.0	6299
YKKVP500-2	1800	207	2980	95.2	0.88	1.8	0.6	7.0	6465
YKKVP560-2	2000	229	2981	95.4	0.88	1.8	0.6	7.0	8462
YKKVP560-2	2240	256	2982	95.5	0.88	1.8	0.6	7.0	8715
YKKVP560-2	2500	286	2983	95.6	0.88	1.8	0.6	7.0	8965
YKKVP560-2	2800	320	2983	95.6	0.88	1.8	0.6	7.0	9433
YKKVP630-2	3150	360	2984	95.7	0.88	1.8	0.6	7.0	10540
YKKVP630-2	3550	401	2984	95.7	0.89	1.8	0.6	7.0	10780
YKKVP630-2	4000	451	2984	95.8	0.89	1.8	0.6	7.0	11401
YKKVP630-2	4500	508	2984	95.8	0.89	1.8	0.6	7.0	11880
YKKVP315-4	200	25	1482	92.1	0.85	1.8	0.7	6.5	2395
YKKVP315-4	220	27	1483	92.2	0.85	1.8	0.7	6.5	2450
YKKVP315-4	250	31	1481	92.3	0.85	1.8	0.7	6.5	2505
YKKVP315-4	280	34	1482	92.4	0.85	1.8	0.7	6.5	2559
YKKVP355-4	315	38	1484	92.6	0.86	1.8	0.7	6.5	2625
YKKVP355-4	355	43	1482	92.8	0.86	1.8	0.7	6.5	2709
YKKVP355-4	400	48	1484	93.0	0.86	1.8	0.7	6.5	2793
YKKVP355-4	450	54	1483	93.2	0.86	1.8	0.7	6.5	2815
YKKVP400-4	500	60	1485	93.4	0.86	1.8	0.7	6.5	3435
YKKVP400-4	560	67	1485	93.6	0.86	1.8	0.7	6.5	3530
YKKVP400-4	630	75	1485	93.8	0.86	1.8	0.7	6.5	3640
YKKVP400-4	710	85	1485	94.0	0.86	1.8	0.7	6.5	3757
YKKVP450-4	800	94	1488	94.3	0.87	1.8	0.7	6.5	4540
YKKVP450-4	900	105	1487	94.4	0.87	1.8	0.7	6.5	4800
YKKVP450-4	1000	117	1488	94.5	0.87	1.8	0.7	6.5	5061
YKKVP450-4	1120	131	1487	94.6	0.87	1.8	0.7	6.5	5180

Table 1 (continued) Technical data of YKKVP series high voltage variable frequency three-phase asynchronous motor (6kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKKVP500-4	1250	144	1487	94.8	0.88	1.8	0.7	6.5	6178
YKKVP500-4	1400	161	1487	94.9	0.88	1.8	0.7	6.5	6353
YKKVP500-4	1600	184	1486	95.0	0.88	1.8	0.7	6.5	6710
YKKVP500-4	1800	207	1487	95.1	0.88	1.8	0.7	6.5	6895
YKKVP560-4	2000	229	1492	95.3	0.88	1.8	0.6	6.5	7844
YKKVP560-4	2240	257	1492	95.4	0.88	1.8	0.6	6.5	8280
YKKVP560-4	2500	286	1491	95.5	0.88	1.8	0.6	6.5	8530
YKKVP560-4	2800	320	1491	95.6	0.88	1.8	0.6	6.5	8983
YKKVP630-4	3150	360	1491	95.8	0.88	1.8	0.6	6.5	11085
YKKVP630-4	3550	400	1491	95.9	0.89	1.8	0.6	6.5	11595
YKKVP630-4	4000	451	1491	95.9	0.89	1.8	0.6	6.5	12178
YKKVP630-4	4500	507	1491	96.0	0.89	1.8	0.6	6.5	12745
YKKVP315-6	160	21	986	91.4	0.82	1.8	0.7	5.5	2481
YKKVP315-6	185	24	986	91.5	0.82	1.8	0.7	5.5	2547
YKKVP315-6	200	26	985	91.8	0.82	1.8	0.7	5.5	2547
YKKVP315-6	220	28	986	92.0	0.82	1.8	0.7	5.5	2604
YKKVP355-6	250	32	986	92.2	0.82	1.8	0.7	5.5	2696
YKKVP355-6	280	36	987	92.5	0.82	1.8	0.7	5.5	2786
YKKVP355-6	315	39	987	92.8	0.83	1.8	0.7	5.5	2952
YKKVP355-6	355	44	985	93.0	0.83	1.8	0.7	5.5	2952
YKKVP400-6	400	50	989	93.1	0.83	1.8	0.7	5.5	3427
YKKVP400-6	450	56	988	93.4	0.83	1.8	0.7	5.5	3630
YKKVP400-6	500	62	988	93.7	0.83	1.8	0.7	5.5	3740
YKKVP400-6	560	68	989	93.8	0.84	1.8	0.7	5.5	3842
YKKVP450-6	630	77	989	93.9	0.84	1.8	0.7	5.5	4686
YKKVP450-6	710	86	989	94.2	0.84	1.8	0.7	5.5	4971
YKKVP450-6	800	97	989	94.4	0.84	1.8	0.7	5.5	5103
YKKVP450-6	900	108	989	94.5	0.85	1.8	0.7	5.5	5245
YKKVP500-6	1000	120	991	94.6	0.85	1.8	0.7	5.5	5959
YKKVP500-6	1120	134	991	94.7	0.85	1.8	0.7	5.5	6291
YKKVP500-6	1250	147	990	94.9	0.86	1.8	0.7	5.5	6623
YKKVP500-6	1400	165	991	95.0	0.86	1.8	0.7	5.5	6955
YKKVP560-6	1600	188	993	95.1	0.86	1.8	0.7	5.5	7749
YKKVP560-6	1800	212	993	95.2	0.86	1.8	0.7	5.5	8243
YKKVP560-6	2000	235	993	95.4	0.86	1.8	0.7	5.5	8669
YKKVP560-6	2240	262	993	95.5	0.86	1.8	0.7	5.5	9103
YKKVP630-6	2500	289	993	95.6	0.87	1.8	0.7	5.5	10591

Table 1 (continued) Technical data of YKKVP series high voltage variable frequency three-phase asynchronous motor (6kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKKVP630-6	2800	324	992	95.6	0.87	1.8	0.7	5.5	11089
YKKVP630-6	3150	364	992	95.7	0.87	1.8	0.7	5.5	11610
YKKVP630-6	3550	410	993	95.7	0.87	1.8	0.7	5.5	12123
YKKVP355-8	200	27	739	91.9	0.78	1.8	0.8	5.5	2736
YKKVP355-8	220	29	739	92.1	0.78	1.8	0.8	5.5	2816
YKKVP355-8	250	33	740	92.2	0.79	1.8	0.8	5.5	2886
YKKVP355-8	280	37	739	92.4	0.79	1.8	0.8	5.5	2986
YKKVP400-8	315	41	739	92.7	0.79	1.8	0.8	5.5	3427
YKKVP400-8	355	47	739	92.8	0.79	1.8	0.8	5.5	3527
YKKVP400-8	400	52	739	93.0	0.80	1.8	0.8	5.5	3728
YKKVP400-8	450	58	739	93.1	0.80	1.8	0.8	5.5	3829
YKKVP450-8	500	64	741	93.6	0.80	1.8	0.8	5.5	4864
YKKVP450-8	560	72	741	93.8	0.80	1.8	0.8	5.5	4956
YKKVP450-8	630	79	741	93.9	0.82	1.8	0.8	5.5	5088
YKKVP450-8	710	89	741	94.0	0.82	1.8	0.8	5.5	5230
YKKVP500-8	800	100	743	94.2	0.82	1.8	0.8	5.5	6060
YKKVP500-8	900	109	743	94.3	0.84	1.8	0.8	5.5	6229
YKKVP500-8	1000	121	742	94.4	0.84	1.8	0.8	5.5	6567
YKKVP500-8	1120	136	742	94.5	0.84	1.8	0.8	5.5	6900
YKKVP560-8	1250	151	743	94.7	0.84	1.8	0.7	5.5	7768
YKKVP560-8	1400	169	743	94.8	0.84	1.8	0.7	5.5	8197
YKKVP560-8	1600	193	743	94.9	0.84	1.8	0.7	5.5	8608
YKKVP560-8	1800	215	743	95.0	0.85	1.8	0.7	5.5	9016
YKKVP630-8	2000	238	743	95.1	0.85	1.8	0.7	5.5	10273
YKKVP630-8	2240	267	743	95.1	0.85	1.8	0.7	5.5	10786
YKKVP630-8	2500	297	743	95.2	0.85	1.8	0.7	5.5	11533
YKKVP630-8	2800	333	743	95.2	0.85	1.8	0.7	5.5	12063
YKKVP400-10	250	35	591	91.5	0.75	1.8	0.8	5.5	3406
YKKVP400-10	280	39	591	91.7	0.75	1.8	0.8	5.5	3505
YKKVP400-10	315	43	591	92.1	0.76	1.8	0.8	5.5	3605
YKKVP400-10	355	49	590	92.3	0.76	1.8	0.8	5.5	3803
YKKVP450-10	400	55	592	92.6	0.76	1.8	0.8	5.5	4663
YKKVP450-10	450	61	592	92.7	0.76	1.8	0.8	5.5	4910
YKKVP450-10	500	66	592	93.0	0.78	1.8	0.8	5.5	5048
YKKVP450-10	560	74	592	93.1	0.78	1.8	0.8	5.5	5186
YKKVP500-10	630	83	594	93.2	0.78	1.8	0.8	5.5	5865
YKKVP500-10	710	94	593	93.4	0.78	1.8	0.8	5.5	6190
YKKVP500-10	800	103	593	93.7	0.80	1.8	0.8	5.5	6524
YKKVP500-10	900	115	593	93.8	0.80	1.8	0.8	5.5	6864

Table 1 (continued) Technical data of YKKVP series high voltage variable frequency three-phase asynchronous motor (6kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKKVP560-10	1000	128	594	93.9	0.80	1.8	0.7	5.5	7421
YKKVP560-10	1120	143	593	94.1	0.80	1.8	0.7	5.5	7807
YKKVP560-10	1250	159	594	94.4	0.80	1.8	0.7	5.5	8187
YKKVP560-10	1400	178	594	94.5	0.80	1.8	0.7	5.5	8598
YKKVP630-10	1600	203	594	94.6	0.80	1.8	0.7	5.5	9755
YKKVP630-10	1800	226	594	94.7	0.81	1.8	0.7	5.5	10213
YKKVP630-10	2000	251	594	94.8	0.81	1.8	0.7	5.5	11102
YKKVP630-10	2240	281	594	94.8	0.81	1.8	0.7	5.5	11511
YKKVP450-12	315	46	494	92.1	0.72	1.8	0.8	5.5	4656
YKKVP450-12	355	50	494	92.3	0.74	1.8	0.8	5.5	4774
YKKVP450-12	400	56	494	92.6	0.74	1.8	0.8	5.5	5021
YKKVP450-12	450	63	494	92.7	0.74	1.8	0.8	5.5	5159
YKKVP500-12	500	70	494	93.1	0.74	1.8	0.8	5.5	5837
YKKVP500-12	560	76	494	93.2	0.76	1.8	0.8	5.5	6181
YKKVP500-12	630	85	494	93.3	0.76	1.8	0.8	5.5	6490
YKKVP500-12	710	96	494	93.4	0.76	1.8	0.8	5.5	6824
YKKVP560-12	800	108	494	93.7	0.76	1.8	0.7	5.5	7296
YKKVP560-12	900	121	494	93.8	0.76	1.8	0.7	5.5	7668
YKKVP560-12	1000	135	494	93.9	0.76	1.8	0.7	5.5	8073
YKKVP560-12	1120	151	494	94.0	0.76	1.8	0.7	5.5	8465
YKKVP630-12	1250	164	495	94.1	0.78	1.8	0.7	5.5	9561
YKKVP630-12	1400	184	495	94.1	0.78	1.8	0.7	5.5	10068
YKKVP630-12	1600	210	495	94.2	0.78	1.8	0.7	5.5	10514
YKKVP630-12	1800	236	495	94.2	0.78	1.8	0.7	5.5	11014

Table 2 Technical data of YKKVP series high voltage variable frequency three-phase asynchronous motor (10kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKKVP355-2	250	18	2977	92.0	0.85	1.8	0.6	7.0	2495
YKKVP355-2	280	21	2975	92.1	0.85	1.8	0.6	7.0	2584
YKKVP355-2	315	23	2976	92.4	0.85	1.8	0.6	7.0	2609
YKKVP355-2	355	26	2975	92.8	0.86	1.8	0.6	7.0	2695
YKKVP400-2	400	29	2977	93.1	0.86	1.8	0.6	7.0	3149
YKKVP400-2	450	32	2976	93.3	0.86	1.8	0.6	7.0	3253
YKKVP400-2	500	36	2976	93.4	0.86	1.8	0.6	7.0	3358
YKKVP400-2	560	40	2977	93.6	0.86	1.8	0.6	7.0	3466
YKKVP450-2	630	45	2978	93.7	0.87	1.8	0.6	7.0	4186
YKKVP450-2	710	50	2979	93.8	0.87	1.8	0.6	7.0	4339
YKKVP450-2	800	56	2978	94.0	0.87	1.8	0.6	7.0	4482
YKKVP450-2	900	63	2977	94.1	0.87	1.8	0.6	7.0	4635
YKKVP500-2	1000	70	2983	94.2	0.87	1.8	0.6	7.0	5493
YKKVP500-2	1120	79	2983	94.4	0.87	1.8	0.6	7.0	5669
YKKVP500-2	1250	88	2982	94.6	0.87	1.8	0.6	7.0	6005
YKKVP500-2	1400	98	2983	94.8	0.87	1.8	0.6	7.0	6171
YKKVP560-2	1600	111	2983	94.9	0.88	1.8	0.6	7.0	8169
YKKVP560-2	1800	124	2982	95.0	0.88	1.8	0.6	7.0	8398
YKKVP560-2	2000	138	2983	95.2	0.88	1.8	0.6	7.0	8641
YKKVP560-2	2240	154	2983	95.4	0.88	1.8	0.6	7.0	9082
YKKVP630-2	2500	172	2984	95.4	0.88	1.8	0.6	7.0	9816
YKKVP630-2	2800	190	2984	95.5	0.89	1.8	0.6	7.0	10350
YKKVP630-2	3150	214	2985	95.6	0.89	1.8	0.6	7.0	10631
YKKVP630-2	3550	241	2985	95.6	0.89	1.8	0.6	7.0	11154
YKKVP355-4	250	19	1484	91.6	0.83	1.8	0.7	6.5	2498
YKKVP355-4	280	21	1484	91.8	0.83	1.8	0.7	6.5	2593
YKKVP355-4	315	24	1484	92.1	0.83	1.8	0.7	6.5	2673
YKKVP355-4	355	26	1483	92.3	0.86	1.8	0.7	6.5	2753
YKKVP400-4	400	29	1487	92.5	0.86	1.8	0.7	6.5	3271
YKKVP400-4	450	33	1486	92.9	0.86	1.8	0.7	6.5	3370
YKKVP400-4	500	36	1486	93.0	0.86	1.8	0.7	6.5	3500
YKKVP400-4	560	40	1487	93.3	0.86	1.8	0.7	6.5	3602
YKKVP450-4	630	45	1489	93.5	0.86	1.8	0.7	6.5	4503
YKKVP450-4	710	51	1488	94.1	0.86	1.8	0.7	6.5	4632
YKKVP450-4	800	56	1488	94.3	0.87	1.8	0.7	6.5	4743
YKKVP450-4	900	63	1488	94.4	0.87	1.8	0.7	6.5	4980
YKKVP500-4	1000	70	1488	94.5	0.87	1.8	0.7	6.5	5935
YKKVP500-4	1120	79	1488	94.6	0.87	1.8	0.7	6.5	6105

Table 2 (Continued) Technical data of YKKVP series high voltage variable frequency three-phase asynchronous motor (10kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKKVP500-4	1250	87	1489	94.7	0.88	1.8	0.7	6.5	6271
YKKVP500-4	1400	97	1487	95.0	0.88	1.8	0.7	6.5	6557
YKKVP560-4	1600	110	1492	95.1	0.88	1.8	0.7	6.5	7482
YKKVP560-4	1800	124	1492	95.2	0.88	1.8	0.7	6.5	7919
YKKVP560-4	2000	138	1491	95.4	0.88	1.8	0.7	6.5	8353
YKKVP560-4	2240	154	1491	95.5	0.88	1.8	0.7	6.5	8780
YKKVP630-4	2500	172	1491	95.5	0.88	1.8	0.6	6.5	10318
YKKVP630-4	2800	190	1492	95.6	0.89	1.8	0.6	6.5	10828
YKKVP630-4	3150	214	1491	95.7	0.89	1.8	0.6	6.5	11368
YKKVP630-4	3550	241	1491	95.7	0.89	1.8	0.6	6.5	11896
YKKVP355-6	200	16	987	91.2	0.80	1.8	0.7	5.5	2630
YKKVP355-6	220	17	988	91.3	0.80	1.8	0.7	5.5	2640
YKKVP355-6	250	20	987	91.5	0.80	1.8	0.7	5.5	2720
YKKVP355-6	280	22	986	91.7	0.80	1.8	0.7	5.5	2800
YKKVP400-6	315	24	988	92.0	0.82	1.8	0.7	5.5	3306
YKKVP400-6	355	27	988	92.2	0.83	1.8	0.7	5.5	3402
YKKVP400-6	400	30	987	92.4	0.83	1.8	0.7	5.5	3595
YKKVP400-6	450	34	987	92.6	0.83	1.8	0.7	5.5	3691
YKKVP450-6	500	37	988	93.0	0.83	1.8	0.7	5.5	4418
YKKVP450-6	560	41	989	93.3	0.84	1.8	0.7	5.5	4709
YKKVP450-6	630	46	989	93.6	0.84	1.8	0.7	5.5	4801
YKKVP450-6	710	52	989	93.8	0.84	1.8	0.7	5.5	4934
YKKVP500-6	800	58	990	94.0	0.84	1.8	0.7	5.5	5739
YKKVP500-6	900	65	990	94.2	0.85	1.8	0.7	5.5	5902
YKKVP500-6	1000	72	990	94.4	0.85	1.8	0.7	5.5	6224
YKKVP500-6	1120	80	990	94.6	0.85	1.8	0.7	5.5	6466
YKKVP560-6	1250	89	993	94.7	0.86	1.8	0.7	5.5	7481
YKKVP560-6	1400	99	993	95.1	0.86	1.8	0.7	5.5	7872
YKKVP560-6	1600	113	993	95.2	0.86	1.8	0.7	5.5	8272
YKKVP560-6	1800	127	993	95.3	0.86	1.8	0.7	5.5	8712
YKKVP630-6	2000	141	993	95.4	0.86	1.8	0.6	5.5	9958
YKKVP630-6	2240	158	993	95.4	0.86	1.8	0.6	5.5	10444
YKKVP630-6	2500	174	993	95.5	0.87	1.8	0.6	5.5	10943
YKKVP630-6	2800	194	993	95.6	0.87	1.8	0.6	5.5	11319
YKKVP400-8	250	21	739	91.4	0.75	1.8	0.7	5.5	3276
YKKVP400-8	280	23	739	91.6	0.76	1.8	0.7	5.5	3369
YKKVP400-8	315	26	738	92.0	0.77	1.8	0.7	5.5	3559
YKKVP400-8	355	29	738	92.4	0.77	1.8	0.7	5.5	3655
YKKVP450-8	400	32	740	92.5	0.78	1.8	0.7	5.5	4640

Table 2 (Continued) Technical data of YKKVP series high voltage variable frequency three-phase asynchronous motor (10kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKKVP450-8	450	36	740	92.7	0.78	1.8	0.7	5.5	4744
YKKVP450-8	500	39	740	93.1	0.79	1.8	0.7	5.5	4877
YKKVP450-8	560	44	740	93.3	0.79	1.8	0.7	5.5	5019
YKKVP500-8	630	47	743	93.8	0.82	1.8	0.7	5.5	5808
YKKVP500-8	710	53	743	94.0	0.82	1.8	0.7	5.5	6130
YKKVP500-8	800	60	743	94.2	0.82	1.8	0.7	5.5	6453
YKKVP500-8	900	67	743	94.3	0.82	1.8	0.7	5.5	6771
YKKVP560-8	1000	75	743	94.5	0.82	1.8	0.7	5.5	7427
YKKVP560-8	1120	82	743	94.7	0.83	1.8	0.7	5.5	7831
YKKVP560-8	1250	92	743	94.8	0.83	1.8	0.7	5.5	8223
YKKVP560-8	1400	103	743	94.9	0.83	1.8	0.7	5.5	8616
YKKVP630-8	1600	117	744	94.9	0.83	1.8	0.7	5.5	10024
YKKVP630-8	1800	130	743	95.0	0.84	1.8	0.7	5.5	10472
YKKVP630-8	2000	145	744	95.1	0.84	1.8	0.7	5.5	10518
YKKVP630-8	2240	162	743	95.1	0.84	1.8	0.7	5.5	10973
YKKVP400-10	200	18	592	91.1	0.72	1.8	0.7	5.5	3352
YKKVP400-10	220	19	592	91.2	0.72	1.8	0.7	5.5	3458
YKKVP400-10	250	22	592	91.3	0.72	1.8	0.7	5.5	3555
YKKVP400-10	280	24	591	91.5	0.74	1.8	0.7	5.5	3470
YKKVP450-10	315	27	592	91.7	0.74	1.8	0.7	5.5	4564
YKKVP450-10	355	30	592	92.1	0.75	1.8	0.7	5.5	4811
YKKVP450-10	400	33	592	92.3	0.75	1.8	0.7	5.5	4939
YKKVP450-10	450	37	592	92.5	0.76	1.8	0.7	5.5	5077
YKKVP500-10	500	40	594	92.7	0.77	1.8	0.7	5.5	5766
YKKVP500-10	560	45	593	92.9	0.78	1.8	0.7	5.5	6076
YKKVP500-10	630	50	593	93.1	0.78	1.8	0.7	5.5	6395
YKKVP500-10	710	56	593	93.3	0.78	1.8	0.7	5.5	6710
YKKVP560-10	800	63	594	93.8	0.78	1.8	0.7	5.5	7121
YKKVP560-10	900	69	594	94.0	0.80	1.8	0.7	5.5	7487
YKKVP560-10	1000	77	594	94.1	0.80	1.8	0.7	5.5	7877
YKKVP560-10	1120	86	594	94.2	0.80	1.8	0.7	5.5	8268
YKKVP630-10	1250	96	595	94.2	0.80	1.8	0.7	5.5	9440
YKKVP630-10	1400	107	594	94.3	0.80	1.8	0.7	5.5	9919
YKKVP630-10	1600	121	594	94.4	0.81	1.8	0.7	5.5	10358
YKKVP630-10	1800	136	594	94.4	0.81	1.8	0.7	5.5	10845
YKKVP450-12	250	22	494	91.1	0.72	1.8	0.7	5.5	4564
YKKVP450-12	280	25	494	91.3	0.72	1.8	0.7	5.5	4642
YKKVP450-12	315	28	494	91.5	0.72	1.8	0.7	5.5	4929
YKKVP450-12	355	31	493	91.8	0.72	1.8	0.7	5.5	5047

Table 2 (Continued) Technical data of YKKVP series high voltage variable frequency three-phase asynchronous motor (10kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKKVP500-12	400	34	495	92.0	0.73	1.8	0.7	5.5	5750
YKKVP500-12	450	39	495	92.2	0.73	1.8	0.7	5.5	6069
YKKVP500-12	500	43	495	92.5	0.73	1.8	0.7	5.5	6378
YKKVP500-12	560	47	494	92.9	0.74	1.8	0.7	5.5	6697
YKKVP560-12	630	53	494	93.1	0.74	1.8	0.7	5.5	7184
YKKVP560-12	710	59	494	93.3	0.74	1.8	0.7	5.5	7386
YKKVP560-12	800	67	494	93.8	0.74	1.8	0.7	5.5	7763
YKKVP560-12	900	75	494	93.8	0.74	1.8	0.7	5.5	8140
YKKVP630-12	1000	83	495	93.8	0.74	1.8	0.7	5.5	9424
YKKVP630-12	1120	92	495	93.9	0.75	1.8	0.7	5.5	9911
YKKVP630-12	1250	102	495	94.0	0.75	1.8	0.7	5.5	10103
YKKVP630-12	1400	115	495	94.0	0.75	1.8	0.7	5.5	10586

Production environment

Inverter induction motor Manufacturer

As one of China professional large electric motor manufacturers, we focus on providing high-quality inverter induction motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M² which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.

If you have any questions about inverter induction motor, asynchronous inverter motors, high voltage motor，inverter motor，ac asynchronous motor，air cooling motor，motor air cooled，, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
