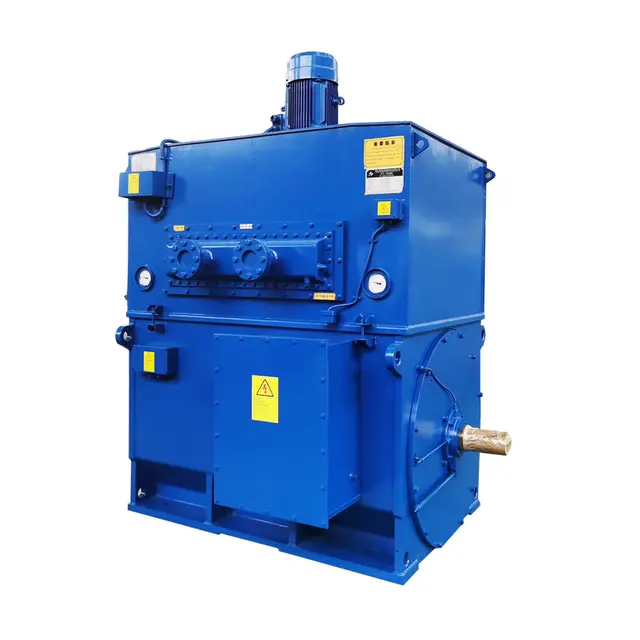

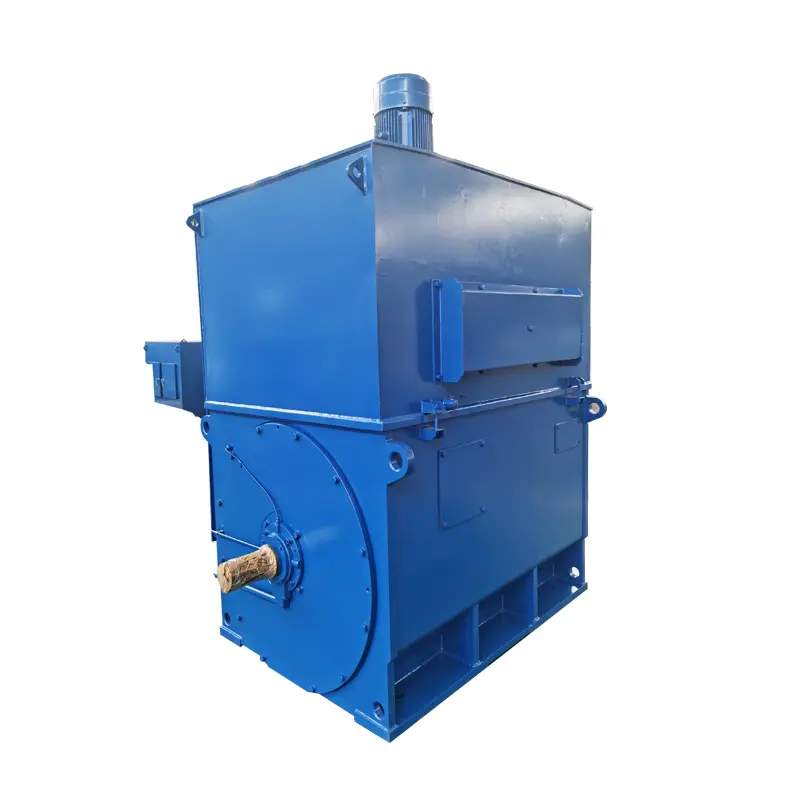

High Voltage Variable Frequency Water Cooling Induction Motor YKSVP

Variable frequency induction motor is also called asynchronous inverter motors or high voltage motor.

● Frequency: 50/60 Hz;
● Frame size: H315mm-H1000mm;
● Power range: 250kW~10000kW;
● Number of poles: 2P~12P;
● Rated voltage: 6000V, 10000V;
● Insulation class: Class F;
● Protection class: IP54/55;
● Insulation method: IMB3;
● Cooling method: IC86W;

● 20 Years’ Experience;
● 65,000 ㎡ Factory;
● ISO 9001:2016, ISO 14001:2015, ISO 45001:2020;
● OEM/ODM Accept.

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional variable frequency induction motor manufacturers and suppliers in China, to buy or wholesale asynchronous inverter motors from our factory. For quotation or if you have any questions, contact us now for customized high voltage motor and price.

Product features

● high power index;

● low noise and vibration;

● high reliability;

● easy use;

● installation and maintenance.

Product application

This series of products are mainly suitable for general mechanical equipment such as fans, water pumps, compressors, crushers, chip cutting machines, transportation machinery or other similar mechanical equipment in industries such as petroleum, chemical industry, coal, power stations, metallurgy, transportation, textile, medicine, and grain processing.

Technical Parameters

Technical data of YKSVP new series high voltage variable frequency three-phase asynchronous motor (6kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKSVP315-2	200	25	2971	92.0	0.85	1.8	0.6	7.0	2345
YKSVP315-2	220	27	2971	92.0	0.86	1.8	0.6	7.0	2370
YKSVP315-2	250	30	2968	92.2	0.86	1.8	0.6	7.0	2400
YKSVP315-2	280	34	2969	92.3	0.86	1.8	0.6	7.0	2450
YKSVP315-2	315	38	2975	92.7	0.86	1.8	0.6	7.0	2500
YKSVP315-2	355	43	2976	93.0	0.86	1.8	0.6	7.0	2570
YKSVP355-2	400	48	2974	93.4	0.86	1.8	0.6	7.0	2780
YKSVP355-2	450	54	2973	93.7	0.86	1.8	0.6	7.0	2850
YKSVP355-2	500	59	2977	94.0	0.87	1.8	0.6	7.0	2950

Table 1 (continued) Technical data of YKSVP new series high voltage variable frequency three-phase asynchronous motor (6kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKSVP355-2	560	66	2976	94.1	0.87	1.8	0.6	7.0	3030
YKSVP400-2	630	74	2976	94.3	0.87	1.8	0.6	7.0	3630
YKSVP400-2	710	83	2976	94.4	0.87	1.8	0.6	7.0	3730
YKSVP400-2	800	93	2975	94.7	0.87	1.8	0.6	7.0	3836
YKSVP400-2	900	105	2976	94.8	0.87	1.8	0.6	7.0	3920
YKSVP450-2	1000	115	2977	94.9	0.88	1.8	0.6	7.0	4200
YKSVP450-2	1120	129	2976	95.0	0.88	1.8	0.6	7.0	4340
YKSVP450-2	1250	144	2981	95.2	0.88	1.8	0.6	7.0	4500
YKSVP450-2	1400	161	2981	95.3	0.88	1.8	0.6	7.0	4650
YKSVP500-2	1600	183	2980	95.4	0.88	1.8	0.6	7.0	5825
YKSVP500-2	1800	206	2980	95.5	0.88	1.8	0.6	7.0	6080
YKSVP500-2	2000	229	2981	95.7	0.88	1.8	0.6	7.0	6350
YKSVP500-2	2240	256	2982	95.8	0.88	1.8	0.6	7.0	6575
YKSVP560-2	2500	282	2983	95.9	0.89	1.8	0.6	7.0	8600
YKSVP560-2	2800	315	2983	96.0	0.89	1.8	0.6	7.0	8900
YKSVP560-2	3150	354	2984	96.1	0.89	1.8	0.6	7.0	9210
YKSVP560-2	3550	399	2984	96.1	0.89	1.8	0.6	7.0	9710
YKSVP630-2	4000	450	2984	96.2	0.89	1.8	0.6	7.0	11250
YKSVP630-2	4500	505	2984	96.3	0.89	1.8	0.6	7.0	11560
YKSVP630-2	5000	561	2984	96.3	0.89	1.8	0.6	7.0	11910
YKSVP315-4	200	25	1482	92.3	0.85	1.8	0.8	6.5	2000
YKSVP315-4	220	27	1483	92.5	0.85	1.8	0.8	6.5	2090
YKSVP315-4	250	31	1481	92.6	0.85	1.8	0.8	6.5	2250
YKSVP315-4	280	34	1482	92.7	0.86	1.8	0.8	6.5	2340
YKSVP315-4	315	38	1484	92.9	0.86	1.8	0.8	6.5	2425
YKSVP315-4	355	43	1482	93.1	0.86	1.8	0.8	6.5	2500
YKSVP355-4	400	48	1484	93.3	0.86	1.8	0.8	6.5	2630
YKSVP355-4	450	54	1483	93.5	0.86	1.8	0.8	6.5	2720
YKSVP355-4	500	59	1485	93.7	0.87	1.8	0.8	6.5	2810
YKSVP355-4	560	66	1485	93.9	0.87	1.8	0.8	6.5	2910
YKSVP400-4	630	74	1485	94.2	0.87	1.8	0.8	6.5	3455
YKSVP400-4	710	83	1485	94.4	0.87	1.8	0.8	6.5	3595
YKSVP400-4	800	94	1488	94.6	0.87	1.8	0.8	6.5	3720
YKSVP400-4	900	105	1487	94.7	0.87	1.8	0.8	6.5	3850
YKSVP450-4	1000	117	1488	94.8	0.87	1.8	0.8	6.5	4920
YKSVP450-4	1120	129	1487	94.9	0.88	1.8	0.8	6.5	5020
YKSVP450-4	1250	144	1487	95.1	0.88	1.8	0.8	6.5	5150
YKSVP450-4	1400	161	1487	95.2	0.88	1.8	0.8	6.5	5230

Table 1 (continued) Technical data of YKSVP new series high voltage variable frequency three-phase asynchronous motor (6kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKSVP500-4	1600	182	1486	95.3	0.89	1.8	0.7	6.5	5800
YKSVP500-4	1800	204	1487	95.4	0.89	1.8	0.7	6.5	6020
YKSVP500-4	2000	226	1492	95.6	0.89	1.8	0.7	6.5	6280
YKSVP500-4	2240	253	1492	95.7	0.89	1.8	0.7	6.5	6610
YKSVP560-4	2500	282	1491	95.8	0.89	1.8	0.6	6.5	7730
YKSVP560-4	2800	316	1491	95.9	0.89	1.8	0.6	6.5	7950
YKSVP560-4	3150	354	1491	96.1	0.89	1.8	0.6	6.5	8330
YKSVP560-4	3550	399	1491	96.1	0.89	1.8	0.6	6.5	8630
YKSVP630-4	4000	450	1491	96.2	0.89	1.8	0.6	6.5	10390
YKSVP630-4	4500	506	1491	96.2	0.89	1.8	0.6	6.5	10895
YKSVP630-4	5000	561	1491	96.4	0.89	1.8	0.6	6.5	11160
YKSVP315-6	160	20	986	92.0	0.83	1.8	0.8	6.0	2260
YKSVP315-6	185	23	986	92.0	0.83	1.8	0.8	6.0	2300
YKSVP315-6	200	25	985	92.1	0.83	1.8	0.8	6.0	2355
YKSVP315-6	220	28	986	92.2	0.83	1.8	0.8	6.0	2430
YKSVP315-6	250	31	986	92.5	0.83	1.8	0.8	6.0	2490
YKSVP315-6	280	35	987	92.7	0.83	1.8	0.8	6.0	2570
YKSVP355-6	315	39	987	93.0	0.83	1.8	0.8	6.0	2710
YKSVP355-6	355	44	985	93.2	0.83	1.8	0.8	6.0	2820
YKSVP355-6	400	50	989	93.3	0.83	1.8	0.8	6.0	2900
YKSVP355-6	450	55	988	93.6	0.84	1.8	0.8	6.0	3010
YKSVP400-6	500	60	988	93.9	0.85	1.8	0.8	6.0	3450
YKSVP400-6	560	67	989	94.1	0.85	1.8	0.8	6.0	3560
YKSVP400-6	630	76	989	94.2	0.85	1.8	0.8	6.0	3660
YKSVP400-6	710	85	989	94.4	0.85	1.8	0.8	6.0	3790
YKSVP450-6	800	96	989	94.6	0.85	1.8	0.8	6.0	4420
YKSVP450-6	900	108	989	94.7	0.85	1.8	0.8	6.0	4560
YKSVP450-6	1000	119	991	94.8	0.85	1.8	0.8	6.0	4710
YKSVP450-6	1120	132	991	94.9	0.86	1.8	0.8	6.0	4815
YKSVP500-6	1250	147	990	95.1	0.86	1.8	0.7	6.0	5760
YKSVP500-6	1400	165	991	95.2	0.86	1.8	0.7	6.0	5950
YKSVP500-6	1600	188	993	95.3	0.86	1.8	0.7	6.0	6200
YKSVP500-6	1800	211	993	95.4	0.86	1.8	0.7	6.0	6420
YKSVP560-6	2000	234	993	95.6	0.86	1.8	0.7	6.5	7878
YKSVP560-6	2240	262	993	95.7	0.86	1.8	0.7	6.5	8215
YKSVP560-6	2500	292	993	95.7	0.86	1.8	0.7	6.5	8545
YKSVP560-6	2800	327	992	95.8	0.86	1.8	0.7	6.5	8765
YKSVP630-6	3150	363	992	96.0	0.87	1.8	0.7	6.5	10390

Table 1 (continued) Technical data of YKSVP new series high voltage variable frequency three-phase asynchronous motor (6kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKSVP630-6	3550	409	993	96.0	0.87	1.8	0.7	6.5	10960
YKSVP630-6	4000	460	993	96.1	0.87	1.8	0.7	6.5	11500
YKSVP355-8	200	27	739	92.0	0.78	1.8	0.8	5.5	2500
YKSVP355-8	220	29	739	92.1	0.78	1.8	0.8	5.5	2585
YKSVP355-8	250	33	740	92.2	0.79	1.8	0.8	5.5	2660
YKSVP355-8	280	37	739	92.4	0.79	1.8	0.8	5.5	2810
YKSVP355-8	315	41	739	92.7	0.80	1.8	0.8	5.5	2900
YKSVP355-8	355	46	739	92.8	0.80	1.8	0.8	5.5	3000
YKSVP400-8	400	52	739	93.0	0.80	1.8	0.8	5.5	3610
YKSVP400-8	450	57	739	93.1	0.81	1.8	0.8	5.5	3705
YKSVP400-8	500	63	741	93.7	0.81	1.8	0.8	5.5	3785
YKSVP400-8	560	71	741	93.8	0.81	1.8	0.8	5.5	3880
YKSVP450-8	630	79	741	93.9	0.82	1.8	0.8	5.5	4510
YKSVP450-8	710	89	741	94.0	0.82	1.8	0.8	5.5	4610
YKSVP450-8	800	97	743	94.2	0.84	1.8	0.8	5.5	4830
YKSVP450-8	900	109	743	94.3	0.84	1.8	0.8	5.5	4930
YKSVP500-8	1000	121	742	94.4	0.84	1.8	0.8	5.5	5930
YKSVP500-8	1120	136	742	94.5	0.84	1.8	0.8	5.5	6150
YKSVP500-8	1250	151	743	94.7	0.84	1.8	0.8	5.5	6350
YKSVP500-8	1400	169	743	94.8	0.84	1.8	0.8	5.5	6600
YKSVP560-8	1600	193	743	94.9	0.84	1.8	0.7	6.0	7750
YKSVP560-8	1800	217	743	95.0	0.84	1.8	0.7	6.0	8130
YKSVP560-8	2000	241	743	95.2	0.84	1.8	0.7	6.0	8550
YKSVP560-8	2240	269	743	95.3	0.84	1.8	0.7	6.0	8610
YKSVP630-8	2500	297	743	95.4	0.85	1.8	0.7	6.0	10680
YKSVP630-8	2800	332	743	95.5	0.85	1.8	0.7	6.0	11100
YKSVP630-8	3150	373	743	95.6	0.85	1.8	0.7	6.0	11540
YKSVP400-10	250	35	591	91.5	0.76	1.8	0.8	5.5	3410
YKSVP400-10	280	38	591	91.7	0.78	1.8	0.8	5.5	3510
YKSVP400-10	315	42	591	91.9	0.79	1.8	0.8	5.5	3580
YKSVP400-10	355	47	590	92.1	0.79	1.8	0.8	5.5	3670
YKSVP400-10	400	52	592	92.6	0.80	1.8	0.8	5.5	3780
YKSVP400-10	450	58	592	92.7	0.80	1.8	0.8	5.5	3890
YKSVP450-10	500	65	592	93.0	0.80	1.8	0.8	5.5	4365
YKSVP450-10	560	72	592	93.1	0.80	1.8	0.8	5.5	4510
YKSVP450-10	630	81	594	93.2	0.80	1.8	0.8	5.5	4640
YKSVP450-10	710	89	593	93.4	0.82	1.8	0.8	5.5	4770
YKSVP500-10	800	100	593	93.7	0.82	1.8	0.8	5.5	5670

Table 1 (continued) YKSVP series high voltage variable frequency three-phase asynchronous motor technical data (6kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKSVP500-10	900	113	593	93.8	0.82	1.8	0.8	5.5	6005
YKSVP500-10	1000	125	594	93.9	0.82	1.8	0.8	5.5	6250
YKSVP500-10	1120	140	593	94.1	0.82	1.8	0.8	5.5	6450
YKSVP560-10	1250	155	594	94.4	0.82	1.8	0.7	6.0	7200
YKSVP560-10	1400	174	594	94.5	0.82	1.8	0.7	6.0	7335
YKSVP560-10	1600	198	594	94.6	0.82	1.8	0.7	6.0	7640
YKSVP560-10	1800	223	594	94.7	0.82	1.8	0.7	6.0	7835
YKSVP630-10	2000	247	594	94.9	0.82	1.8	0.7	6.0	10060
YKSVP630-10	2240	277	594	95.0	0.82	1.8	0.7	6.0	10320
YKSVP630-10	2500	308	594	95.1	0.82	1.8	0.7	6.0	10930
YKSVP450-12	400	55	494	92.6	0.75	1.8	0.7	6.0	4300
YKSVP450-12	450	62	494	92.7	0.75	1.8	0.7	6.0	4375
YKSVP450-12	500	65	494	93.1	0.79	1.8	0.7	6.0	4510
YKSVP450-12	560	73	494	93.2	0.79	1.8	0.7	6.0	4775
YKSVP500-12	630	82	494	93.3	0.79	1.8	0.7	6.0	5945
YKSVP500-12	710	93	494	93.4	0.79	1.8	0.7	6.0	6190
YKSVP500-12	800	104	494	93.7	0.79	1.8	0.7	6.0	5410
YKSVP500-12	900	117	494	93.8	0.79	1.8	0.7	6.0	6620
YKSVP560-12	1000	130	494	93.9	0.79	1.8	0.7	6.0	7370
YKSVP560-12	1120	145	494	94.0	0.79	1.8	0.7	6.0	7570
YKSVP560-12	1250	162	495	94.2	0.79	1.8	0.7	6.0	8155
YKSVP560-12	1400	181	495	94.3	0.79	1.8	0.7	6.0	8355
YKSVP630-12	1600	207	495	94.3	0.79	1.8	0.7	6.0	9960
YKSVP630-12	1800	232	495	94.4	0.79	1.8	0.7	6.0	10210
YKSVP630-12	2000	258	495	94.6	0.79	1.8	0.7	6.0	10980
YKSVP630-12	2240	288	495	94．7	0.79	1.8	0.7	6.0	11290

Table 2 Technical data of YKSVP series high voltage variable frequency three-phase asynchronous motor (10kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKSVP355-2	250	18	2977	92.1	0.86	1.8	0.6	7.0	2495
YKSVP355-2	280	20	2975	92.3	0.86	1.8	0.6	7.0	2585
YKSVP355-2	315	23	2976	92.7	0.86	1.8	0.6	7.0	2690
YKSVP355-2	355	25	2975	93.1	0.87	1.8	0.6	7.0	2780
YKSVP355-2	400	28	2977	93.4	0.87	1.8	0.6	7.0	2860
YKSVP355-2	450	32	2976	93.6	0.87	1.8	0.6	7.0	2950
YKSVP400-2	500	35	2976	93.8	0.87	1.8	0.6	7.0	3450
YKSVP400-2	560	40	2977	93.9	0.87	1.8	0.6	7.0	3555
YKSVP400-2	630	44	2978	94.0	0.87	1.8	0.6	7.0	3670
YKSVP400-2	710	50	2979	94.1	0.88	1.8	0.6	7.0	3770
YKSVP450-2	800	56	2978	94.3	0.88	1.8	0.6	7.0	4200
YKSVP450-2	900	63	2977	94.4	0.88	1.8	0.6	7.0	4340
YKSVP450-2	1000	69	2983	94.5	0.88	1.8	0.6	7.0	4500
YKSVP450-2	1120	78	2983	94.7	0.88	1.8	0.6	7.0	4650
YKSVP500-2	1250	85	2982	94.9	0.89	1.8	0.6	7.0	5715
YKSVP500-2	1400	96	2983	95.1	0.89	1.8	0.6	7.0	5940
YKSVP500-2	1600	109	2983	95.2	0.89	1.8	0.6	7.0	6195
YKSVP500-2	1800	121	2982	95.3	0.90	1.8	0.6	7.0	6435
YKSVP560-2	2000	134	2983	95.5	0.90	1.8	0.6	7.0	8600
YKSVP560-2	2240	150	2983	95.7	0.90	1.8	0.6	7.0	8900
YKSVP560-2	2500	168	2984	95.7	0.90	1.8	0.6	7.0	9210
YKSVP560-2	2800	188	2984	95.7	0.90	1.8	0.6	7.0	9710
YKSVP630-2	3150	211	2985	95.8	0.90	1.8	0.6	7.0	11450
YKSVP630-2	3550	238	2985	95.8	0.90	1.8	0.6	7.0	11755
YKSVP630-2	4000	268	2985	95.9	0.90	1.8	0.6	7.0	12050
YKSVP630-2	4500	301	2985	95.9	0.90	1.8	0.6	7.0	12700
YKSVP355-4	250	18	1484	92.1	0.85	1.8	0.7	7.0	2460
YKSVP355-4	280	21	1484	92.2	0.85	1.8	0.7	7.0	2530
YKSVP355-4	315	23	1484	92.5	0.85	1.8	0.7	7.0	2590
YKSVP355-4	355	26	1483	92.6	0.86	1.8	0.7	7.0	2675
YKSVP355-4	400	29	1487	92.8	0.86	1.8	0.7	7.0	2760
YKSVP355-4	450	32	1486	93.2	0.86	1.8	0.7	7.0	2845
YKSVP400-4	500	36	1486	93.3	0.86	1.8	0.7	7.0	3475
YKSVP400-4	560	40	1487	93.6	0.86	1.8	0.7	7.0	3520
YKSVP400-4	630	45	1489	93.8	0.86	1.8	0.7	7.0	3590
YKSVP400-4	710	50	1488	94.4	0.87	1.8	0.7	7.0	3680
YKSVP450-4	800	56	1488	94.6	0.87	1.8	0.7	7.0	4855
YKSVP450-4	900	62	1488	94.7	0.88	1.8	0.7	7.0	4995

Table 2 (Continued) YKSVP series high voltage variable frequency three-phase asynchronous motor technical data (10kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKSVP450-4	1000	69	1488	94.8	0.88	1.8	0.7	7.0	5145
YKSVP450-4	1120	77	1488	94.9	0.88	1.8	0.7	7.0	5295
YKSVP500-4	1250	85	1489	95.0	0.89	1.8	0.7	7.0	5595
YKSVP500-4	1400	95	1487	95.3	0.89	1.8	0.7	7.0	5795
YKSVP500-4	1600	109	1492	95.4	0.89	1.8	0.7	7.0	6200
YKSVP500-4	1800	122	1492	95.5	0.89	1.8	0.7	7.0	6390
YKSVP560-4	2000	136	1491	95.7	0.89	1.8	0.7	7.0	7390
YKSVP560-4	2240	152	1491	95.8	0.89	1.8	0.7	7.0	7620
YKSVP560-4	2500	169	1491	95.8	0.89	1.8	0.7	7.0	8175
YKSVP560-4	2800	190	1492	95.8	0.89	1.8	0.7	7.0	8410
YKSVP630-4	3150	213	1491	95.9	0.89	1.8	0.6	7.0	9990
YKSVP630-4	3550	240	1491	95.9	0.89	1.8	0.6	7.0	10550
YKSVP630-4	4000	270	1491	96.0	0.89	1.8	0.6	7.0	11070
YKSVP630-4	4500	304	1491	96.0	0.89	1.8	0.6	7.0	11640
YKSVP355-6	200	16	987	91.2	0.80	1.8	0.7	6.0	2590
YKSVP355-6	220	17	988	91.4	0.80	1.8	0.7	6.0	2650
YKSVP355-6	250	20	987	91.6	0.80	1.8	0.7	6.0	2710
YKSVP355-6	280	22	986	91.8	0.80	1.8	0.7	6.0	2780
YKSVP355-6	315	24	988	92.1	0.82	1.8	0.7	6.0	2795
YKSVP355-6	355	27	988	92.4	0.83	1.8	0.7	6.0	2895
YKSVP400-6	400	30	987	92.6	0.83	1.8	0.7	6.0	3430
YKSVP400-6	450	34	987	92.8	0.83	1.8	0.7	6.0	3490
YKSVP400-6	500	37	988	93.2	0.83	1.8	0.7	6.0	3670
YKSVP400-6	560	41	989	93.5	0.84	1.8	0.7	6.0	3750
YKSVP450-6	630	46	989	93.8	0.84	1.8	0.7	6.0	4366
YKSVP450-6	710	52	989	94.0	0.84	1.8	0.7	6.0	4490
YKSVP450-6	800	58	990	94.2	0.84	1.8	0.7	6.0	4640
YKSVP450-6	900	65	990	94.4	0.85	1.8	0.7	6.0	4785
YKSVP500-6	1000	72	990	94.6	0.85	1.8	0.7	6.0	5490
YKSVP500-6	1120	80	990	94.8	0.85	1.8	0.7	6.0	5880
YKSVP500-6	1250	88	993	94.9	0.86	1.8	0.7	6.0	6090
YKSVP500-6	1400	99	993	95.3	0.86	1.8	0.7	6.0	6290
YKSVP560-6	1600	113	993	95.4	0.86	1.8	0.7	6.0	7350
YKSVP560-6	1800	127	993	95.5	0.86	1.8	0.7	6.0	7750
YKSVP560-6	2000	140	993	95.6	0.86	1.8	0.7	6.0	8100
YKSVP560-6	2240	157	993	95.6	0.86	1.8	0.7	6.0	8300
YKSVP630-6	2500	176	993	95.6	0.86	1.8	0.6	6.0	9970
YKSVP630-6	2800	197	993	95.6	0.86	1.8	0.6	6.0	10460
YKSVP630-6	3150	221	993	95.7	0.86	1.8	0.6	6.0	11080

Table 2 (Continued) YKSVP series high voltage variable frequency three-phase asynchronous motor technical data (10kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKSVP630-6	3550	249	993	95.8	0.86	1.8	0.6	6.0
YKSVP400-8	250	21	739	91.3	0.76	1.8	0.7	6.0	3340
YKSVP400-8	280	23	739	91.6	0.76	1.8	0.7	6.0	3420
YKSVP400-8	315	26	738	92.1	0.77	1.8	0.7	6.0	3525
YKSVP400-8	355	29	738	92.4	0.77	1.8	0.7	6.0	3650
YKSVP400-8	400	32	740	92.5	0.78	1.8	0.7	6.0	3770
YKSVP400-8	450	36	740	92.7	0.78	1.8	0.7	6.0	3855
YKSVP450-8	500	39	740	93.1	0.79	1.8	0.7	6.0	4495
YKSVP450-8	560	44	740	93.3	0.79	1.8	0.7	6.0	4560
YKSVP450-8	630	47	743	93.8	0.82	1.8	0.7	6.0	4730
YKSVP450-8	710	53	743	94.0	0.82	1.8	0.7	6.0	4840
YKSVP500-8	800	60	743	94.2	0.82	1.8	0.7	6.0	5860
YKSVP500-8	900	67	743	94.3	0.82	1.8	0.7	6.0	6030
YKSVP500-8	1000	74	743	94.5	0.83	1.8	0.7	6.0	6245
YKSVP500-8	1120	82	743	94.7	0.83	1.8	0.7	6.0	6435
YKSVP560-8	1250	92	743	94.8	0.83	1.8	0.7	6.0	7735
YKSVP560-8	1400	103	743	94.9	0.83	1.8	0.7	6.0	8100
YKSVP560-8	1600	117	744	94.9	0.83	1.8	0.7	6.0	8280
YKSVP560-8	1800	132	743	94.9	0.83	1.8	0.7	6.0	8500
YKSVP630-8	2000	145	744	94.9	0.84	1.8	0.7	6.0	10250
YKSVP630-8	2240	162	743	95.0	0.84	1.8	0.7	6.0	10780
YKSVP630-8	2500	181	744	95.1	0.84	1.8	0.7	6.0	10910
YKSVP630-8	2800	202	743	95.2	0.84	1.8	0.7	6.0	11290
YKSVP400-10	200	18	592	91.0	0.72	1.8	0.7	5.5	3470
YKSVP400-10	220	19	592	91.0	0.72	1.8	0.7	5.5	3530
YKSVP400-10	250	22	592	91.2	0.73	1.8	0.7	5.5	3590
YKSVP400-10	280	24	591	91.6	0.74	1.8	0.7	5.5	3650
YKSVP400-10	315	27	592	91.9	0.74	1.8	0.7	5.5	3720
YKSVP400-10	355	30	592	92.1	0.75	1.8	0.7	5.5	3860
YKSVP450-10	400	33	592	92.3	0.75	1.8	0.7	5.5	4470
YKSVP450-10	450	36	592	92.5	0.77	1.8	0.7	5.5	4505
YKSVP450-10	500	40	594	92.7	0.77	1.8	0.7	5.5	4595
YKSVP450-10	560	45	593	92.9	0.78	1.8	0.7	5.5	4790
YKSVP500-10	630	50	593	93.1	0.78	1.8	0.7	5.5	5680
YKSVP500-10	710	56	593	93.3	0.78	1.8	0.7	5.5	5870
YKSVP500-10	800	62	594	93.8	0.80	1.8	0.7	5.5	6070
YKSVP500-10	900	69	594	94.0	0.80	1.8	0.7	5.5	6230
YKSVP560-10	1000	77	594	94.1	0.80	1.8	0.7	6.0	7100
YKSVP560-10	1120	86	594	94.2	0.80	1.8	0.7	6.0	7300

Table 2 (Continued) YKSVP series high voltage variable frequency three-phase asynchronous motor technical data (10kV)

Model	Rated power kW	Stator current A	Rated speed r/min	Efficiency %	Power factor cosΦ	Maximum torque Rated torque	Locked-rotor moment Rated torque	Locked-rotor current Rated current	Weight kg
YKSVP560-10	1250	96	595	94.3	0.80	1.8	0.7	6.0	7500
YKSVP560-10	1400	107	594	94.3	0.80	1.8	0.7	6.0	8050
YKSVP630-10	1600	121	594	94.3	0.81	1.8	0.7	6.0	9700
YKSVP630-10	1800	136	594	94.4	0.81	1.8	0.7	6.0	9930
YKSVP630-10	2000	151	594	94.6	0.81	1.8	0.7	6.0	10500
YKSVP630-10	2240	169	594	94.7	0.81	1.8	0.7	6.0	10730
YKSVP450-12	315	27	494	91.6	0.73	1.8	0.7	5.5	4475
YKSVP450-12	355	31	493	91.8	0.73	1.8	0.7	5.5	4505
YKSVP450-12	400	34	495	92.0	0.73	1.8	0.7	5.5	4605
YKSVP450-12	450	39	495	92.2	0.73	1.8	0.7	5.5	4800
YKSVP500-12	500	43	495	92.5	0.73	1.8	0.7	5.5	5840
YKSVP500-12	560	47	494	92.9	0.74	1.8	0.7	5.5	6050
YKSVP500-12	630	53	494	93.1	0.74	1.8	0.7	5.5	6250
YKSVP500-12	710	59	494	93.3	0.74	1.8	0.7	5.5	6450
YKSVP560-12	800	67	494	93.8	0.74	1.8	0.7	6.0	7200
YKSVP560-12	900	75	494	93.8	0.74	1.8	0.7	6.0	7380
YKSVP560-12	1000	83	495	93.8	0.74	1.8	0.7	6.0	7950
YKSVP560-12	1120	93	495	93.8	0.74	1.8	0.7	6.0	8160
YKSVP630-12	1250	103	495	93.8	0.75	1.8	0.7	6.0	9630
YKSVP630-12	1400	115	495	93.9	0.75	1.8	0.7	6.0	9880
YKSVP630-12	1600	131	495	94.0	0.75	1.8	0.7	6.0	10470
YKSVP630-12	1800	147	495	94.1	0.75	1.8	0.7	6.0	10710

Production environment

Variable frequency induction motor Manufacturer

As one of China professional large electric motor manufacturers, we focus on providing high-quality variable frequency induction motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M² which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.

If you have any questions about variable frequency induction motor, asynchronous inverter motors, high voltage motor,inverter motor,inverter induction motor,water cooled induction motor,water cooling motor,water cooling electric motor,water cooled motor,water cooled electric motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
