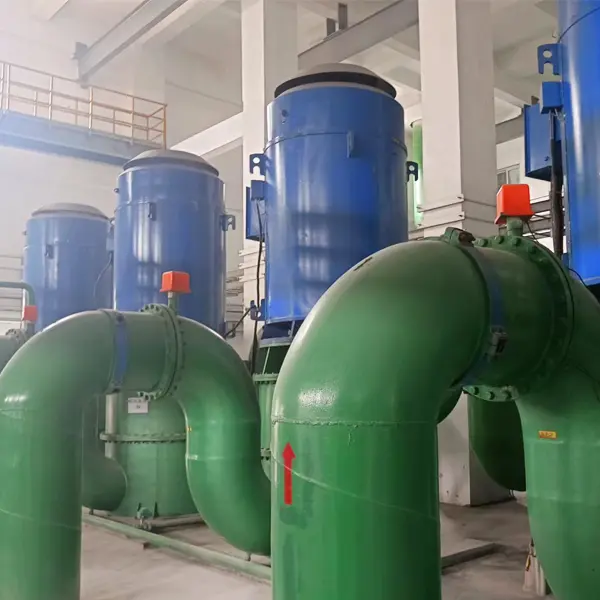

Vertical Water Pump Motor YKGL

Vertical water pump motor is also called water pump motor.

● Frequency: 50/60 Hz;
● Frame size: H355mm-H630mm;
● Power range: 200kW~2800kW;
● Number of poles: 4P~8P;
● Rated voltage: 6000V, 10000V and various special voltages;
● Insulation class: Class F;
● Protection class: IP55;
● Installation method: IMV1;
● Cooling method: IC511;

● 20 Years’ Experience;
● 65,000 ㎡ Factory;
● ISO 9001:2016, ISO 14001:2015, ISO 45001:2020;
● OEM/ODM Accept.

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional vertical water pump motor manufacturers and suppliers in China, to buy or wholesale water pump motor from our factory. For quotation or if you have any questions, contact us now for customized and price.

Product features

● high power index;

● low noise and vibration;

● high reliability;

● easy use;

● installation and maintenance.

Technical Parameters

Table 1 Technical data of YKGL new series high voltage and high efficiency three-phase asynchronous motor (6kV)

model	Rated power kW	Stator Current A	Rated speed r/min	Efficiency %	Power Factor cosΦ	Maximum torque/rated torque	Stall torque/rated torque	Locked rotor current/rated current	Weight kg
YKGL355-4	200	24	1482	93.4	0.85	1.8	0.7	6.5	3250
YKGL355-4	220	27	1483	93.5	0.85	1.8	0.7	6.5	3310
YKGL355-4	250	30	1481	93.6	0.85	1.8	0.7	6.5	3380
YKGL355-4	280	34	1482	93.7	0.85	1.8	0.7	6.5	3455
YKGL400-4	315	38	1484	93.8	0.86	1.8	0.7	6.5	3545
YKGL400-4	355	42	1482	94.0	0.86	1.8	0.7	6.5	3660
YKGL400-4	400	48	1484	94.2	0.86	1.8	0.7	6.5	3770
YKGL400-4	450	53	1483	94.4	0.86	1.8	0.7	6.5	3800
YKGL450-4	500	59	1485	94.5	0.86	1.8	0.7	6.5	4640
YKGL450-4	560	66	1485	94.7	0.86	1.8	0.7	6.5	4765
YKGL450-4	630	74	1485	94.9	0.86	1.8	0.7	6.5	4910
YKGL450-4	710	84	1485	95.0	0.86	1.8	0.7	6.5	5070
YKGL500-4	800	93	1488	95.3	0.87	1.8	0.7	6.5	6130
YKGL500-4	900	104	1487	95.4	0.87	1.8	0.7	6.5	6480
YKGL500-4	1000	116	1488	95.5	0.87	1.8	0.7	6.5	6835
YKGL500-4	1120	130	1487	95.5	0.87	1.8	0.7	6.5	7000
YKGL560-4	1250	143	1487	95.7	0.88	1.8	0.6	6.5	8340
YKGL560-4	1400	160	1487	95.8	0.88	1.8	0.6	6.5	8580
YKGL560-4	1600	182	1486	95.9	0.88	1.8	0.6	6.5	9058
YKGL560-4	1800	205	1487	96.0	0.88	1.8	0.6	6.5	9308
YKGL630-4	2000	228	1492	96.1	0.88	1.8	0.6	6.5	10590
YKGL630-4	2240	255	1492	96.2	0.88	1.8	0.6	6.5	11180
YKGL630-4	2500	284	1491	96.2	0.88	1.8	0.6	6.5	11515
YKGL630-4	2800	318	1491	96.3	0.88	1.8	0.6	6.5	12127
YKGL355-6	160	20	986	93.0	0.82	1.8	0.8	5.5	3350
YKGL355-6	185	23	986	93.0	0.82	1.8	0.8	5.5	3438
YKGL355-6	200	25	985	93.2	0.82	1.8	0.8	5.5	3438
YKGL355-6	220	28	986	93.3	0.82	1.8	0.8	5.5	3515
YKGL400-6	250	31	986	93.5	0.82	1.8	0.8	5.5	3640
YKGL400-6	280	35	987	93.8	0.82	1.8	0.8	5.5	3760
YKGL400-6	315	39	987	94.0	0.83	1.8	0.8	5.5	3985
YKGL400-6	355	44	985	94.2	0.83	1.8	0.8	5.5	3985
YKGL450-6	400	49	989	94.3	0.83	1.8	0.8	5.5	4626
YKGL450-6	450	55	988	94.5	0.83	1.8	0.8	5.5	4900
YKGL450-6	500	61	988	94.8	0.83	1.8	0.8	5.5	5050
YKGL450-6	560	68	989	94.9	0.84	1.8	0.8	5.5	5190
YKGL500-6	630	76	989	95.0	0.84	1.8	0.8	5.5	6330
YKGL500-6	710	85	989	95.2	0.84	1.8	0.8	5.5	6710
YKGL500-6	800	96	989	95.4	0.84	1.8	0.8	5.5	6890
YKGL500-6	900	107	989	95.5	0.85	1.8	0.8	5.5	7080
YKGL560-6	1000	119	991	95.5	0.85	1.8	0.8	5.5	8045
YKGL560-6	1120	133	991	95.6	0.85	1.8	0.8	5.5	8495
YKGL560-6	1250	146	990	95.8	0.86	1.8	0.8	5.5	8945
YKGL560-6	1400	163	991	95.9	0.86	1.8	0.8	5.5	9390
YKGL630-6	1600	186	993	96.0	0.86	1.8	0.7	5.5	10465
YKGL630-6	1800	210	993	96.0	0.86	1.8	0.7	5.5	11128
YKGL630-6	2000	233	993	96.2	0.86	1.8	0.7	5.5	11703
YKGL630-6	2240	261	993	96.2	0.86	1.8	0.7	5.5	12290
YKGL400-8	200	26	739	93.2	0.78	1.8	0.8	5.5	3695
YKGL400-8	220	29	739	93.4	0.78	1.8	0.8	5.5	3802
YKGL400-8	250	33	740	93.5	0.79	1.8	0.8	5.5	3895
YKGL400-8	280	36	739	93.7	0.79	1.8	0.8	5.5	4030
YKGL450-8	315	41	739	93.9	0.79	1.8	0.8	5.5	4626
YKGL450-8	355	46	739	94.0	0.79	1.8	0.8	5.5	4762
YKGL450-8	400	51	739	94.2	0.80	1.8	0.8	5.5	5033
YKGL450-8	450	57	739	94.3	0.80	1.8	0.8	5.5	5170
YKGL500-8	500	64	741	94.7	0.80	1.8	0.8	5.5	6566
YKGL500-8	560	71	741	94.9	0.80	1.8	0.8	5.5	6690
YKGL500-8	630	78	741	95.0	0.82	1.8	0.8	5.5	6869
YKGL500-8	710	88	741	95.0	0.82	1.8	0.8	5.5	7060
YKGL560-8	800	99	743	95.2	0.82	1.8	0.8	5.5	8180
YKGL560-8	900	108	743	95.3	0.84	1.8	0.8	5.5	8410
YKGL560-8	1000	120	742	95.4	0.84	1.8	0.8	5.5	8865
YKGL560-8	1120	134	742	95.5	0.84	1.8	0.8	5.5	9315
YKGL630-8	1250	150	743	95.6	0.84	1.8	0.7	5.5	10487
YKGL630-8	1400	168	743	95.7	0.84	1.8	0.7	5.5	11066
YKGL630-8	1600	191	743	95.8	0.84	1.8	0.7	5.5	11620
YKGL630-8	1800	213	743	95.8	0.85	1.8	0.7	5.5	12171

Table 2 Technical data of YKGL new series high voltage and high efficiency three-phase asynchronous motor (10kV)

model	Rated power kW	Stator Current A	Rated speed r/min	Efficiency %	Power Factor cosΦ	Maximum torque/rated torque	Stall torque/rated torque	Locked rotor current/rated current	Weight kg
YKGL400-4	250	19	1484	93.0	0.83	1.8	0.7	6.5	3372
YKGL400-4	280	21	1484	93.2	0.83	1.8	0.7	6.5	3500
YKGL400-4	315	23	1484	93.5	0.83	1.8	0.7	6.5	3608
YKGL400-4	355	25	1483	93.6	0.86	1.8	0.7	6.5	3716
YKGL450-4	400	29	1487	93.7	0.86	1.8	0.7	6.5	4416
YKGL450-4	450	32	1486	94.1	0.86	1.8	0.7	6.5	4550
YKGL450-4	500	36	1486	94.1	0.86	1.8	0.7	6.5	4725
YKGL450-4	560	40	1487	94.4	0.86	1.8	0.7	6.5	4862
YKGL500-4	630	45	1489	94.6	0.86	1.8	0.7	6.5	6080
YKGL500-4	710	50	1488	95.1	0.86	1.8	0.7	6.5	6253
YKGL500-4	800	56	1488	95.2	0.87	1.8	0.7	6.5	6403
YKGL500-4	900	63	1488	95.3	0.87	1.8	0.7	6.5	6723
YKGL560-4	1000	70	1488	95.4	0.87	1.8	0.7	6.5	8012
YKGL560-4	1120	78	1488	95.5	0.87	1.8	0.7	6.5	8242
YKGL560-4	1250	86	1489	95.6	0.88	1.8	0.7	6.5	8466
YKGL560-4	1400	96	1487	95.8	0.88	1.8	0.7	6.5	8852
YKGL630-4	1600	109	1492	95.9	0.88	1.8	0.7	6.5	1010
YKGL630-4	1800	123	1492	96.0	0.88	1.8	0.7	6.5	10690
YKGL630-4	2000	136	1491	96.2	0.88	1.8	0.7	6.5	11277
YKGL630-4	2240	153	1491	96.2	0.88	1.8	0.7	6.5	11853
YKGL400-6	200	16	987	92.7	0.80	1.8	0.7	5.5	3550
YKGL400-6	220	17	988	92.7	0.80	1.8	0.7	5.5	3564
YKGL400-6	250	19	987	92.9	0.80	1.8	0.7	5.5	3672
YKGL400-6	280	22	986	93.1	0.80	1.8	0.7	5.5	3780
YKGL450-6	315	24	988	93.4	0.82	1.8	0.7	5.5	4463
YKGL450-6	355	26	988	93.5	0.83	1.8	0.7	5.5	4593
YKGL450-6	400	30	987	93.7	0.83	1.8	0.7	5.5	4853
YKGL450-6	450	33	987	93.8	0.83	1.8	0.7	5.5	4982
YKGL500-6	500	37	988	94.2	0.83	1.8	0.7	5.5	5594
YKGL500-6	560	41	989	94.4	0.84	1.8	0.7	5.5	6357
YKGL500-6	630	46	989	94.7	0.84	1.8	0.7	5.5	6481
YKGL500-6	710	51	989	94.8	0.84	1.8	0.7	5.5	6660
YKGL560-6	800	58	990	95.0	0.84	1.8	0.7	5.5	7747
YKGL560-6	900	64	990	95.2	0.85	1.8	0.7	5.5	7965
YKGL560-6	1000	71	990	95.3	0.85	1.8	0.7	5.5	8402
YKGL560-6	1120	80	990	95.5	0.85	1.8	0.7	5.5	8730
YKGL630-6	1250	88	993	95.6	0.86	1.8	0.7	5.5	10100
YKGL630-6	1400	98	993	95.9	0.86	1.8	0.7	5.5	10627
YKGL630-6	1600	112	993	96.0	0.86	1.8	0.7	5.5	11167
YKGL630-6	1800	126	993	96.0	0.86	1.8	0.7	5.5	11761
YKGL450-8	250	21	739	92.8	0.75	1.8	0.7	5.5	4423
YKGL450-8	280	23	739	93.0	0.76	1.8	0.7	5.5	4548
YKGL450-8	315	25	738	93.4	0.77	1.8	0.7	5.5	4804
YKGL450-8	355	28	738	93.7	0.77	1.8	0.7	5.5	4934
YKGL500-8	400	32	740	93.8	0.78	1.8	0.7	5.5	6264
YKGL500-8	450	35	740	93.9	0.78	1.8	0.7	5.5	6404
YKGL500-8	500	39	740	94.3	0.79	1.8	0.7	5.5	6584
YKGL500-8	560	43	740	94.5	0.79	1.8	0.7	5.5	6775
YKGL560-8	630	47	743	94.9	0.82	1.8	0.7	5.5	7840
YKGL560-8	710	53	743	95.0	0.82	1.8	0.7	5.5	8275
YKGL560-8	800	59	743	95.2	0.82	1.8	0.7	5.5	8712
YKGL560-8	900	66	743	95.3	0.82	1.8	0.7	5.5	9140
YKGL630-8	1000	74	743	95.5	0.82	1.8	0.7	5.5	10026
YKGL630-8	1120	81	743	95.6	0.83	1.8	0.7	5.5	10572
YKGL630-8	1250	91	743	95.7	0.83	1.8	0.7	5.5	11100
YKGL630-8	1400	102	743	95.8	0.83	1.8	0.7	5.5	11632

Production environment

Vertical water pump motor Manufacturer

As one of China professional large electric motor manufacturers, we focus on providing high-quality vertical water pump motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M² which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.

If you have any questions about vertical water pump motor, water pump motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
