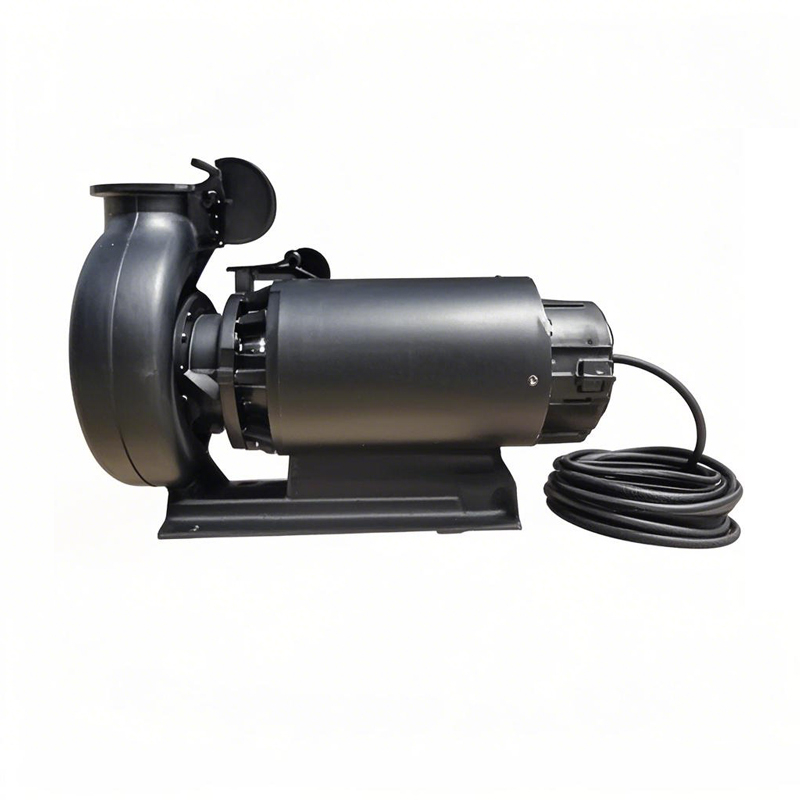

Submersible Pump Motor YGZH

Submersible well pump motor is also called submersible pump motors.

● Frequency: 50/60 Hz;
● Frame size: H355mm-H710mm;
● Power range: 185kW～1400kW;
● Number of poles: 4P～24P;
● Rated voltage: 3000V, 6000V, 10000V and various special voltages;
● Insulation grade: Class F;
● Protection grade: IP68;
● Installation method: IMV1;

● 20 Years’ Experience;
● 65,000 ㎡ Factory;
● ISO 9001:2016, ISO 14001:2015, ISO 45001:2020;
● OEM/ODM Accept.

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional submersible well pump motor manufacturers and suppliers in China, to buy or wholesale submersible pump motors from our factory. For quotation or if you have any questions, contact us now for customized and price.

YGZH submersible pump motor type

1. The motor is a dry submersible three-phase asynchronous motor.

2. The motor housing protection level is IP68, which should comply with the provisions of GB/T4942.1-2006.

3. The motor is cooled by water outside, and the air circulation inside the motor is IC6AIW8 (see (}BIT 1993--1993).

4. The motor structure and installation type is IMVI (see GB/T997--2003).

5. The motor quota is a continuous quota based on the continuous working system (S1).

Technical Parameters

Table 1 Correspondence between speed and power (380 V～660 V)

Frame No.	Stator core outer diametermm	Synchronous speed r/min						Selectable voltage v
		1500	1000	750	600	500	375
		power kW
315	520	160	132	110	—	—	—	380 660
		185	160	132	110	—	—
		200	185	160	132	110	—
		220	200	185	160	132	—
		250	220	200	185	160	—
		280	250	220	200	185	—
355	590	250	220	200	185	160	110
		280	250	220	200	185	132
		315	280	250	220	200	160
		355	315	280	250	220	185
400	670	315	280	250	220	185	132
		—	315	280	250	200	160
		—	—	315	280	220	185
		—	—	—	315	280	200
		—	—	—	—	315	220

Table 2 Correspondence between speed and power (3kV~10kV)

Frame No.	Stator core outer diameter mm	Synchronous speed r/min								Selectable voltage kV
		1500	1000	750	600	500	375	300	250
		Power kW
355	590	250	220	200	—	—	—	—	—	3 6
		280	250	220	200	—	—	—	—
		315	280	250	220	200	—	—	—
		355	315	280	250	220	—	—	—
400	670	315	280	250	220	185	—	—	—
		355	315	280	250	200	—	—	—
		400	355	315	280	220	—	—	—
		450	400	355	315	280	200	—	—
		500	450	400	355	315	220	—	—
450	740	500	450	400	355	280	250	220	—
		560	500	450	400	315	280	250	—
		630	560	500	450	355	315	280	—
		710	630	560	500	400	355	315
500	850	—	800	500	450	355	200	160	110	6 10
		—	900	560	500	400	220	185	132
		=	1000	630	560	450	250	200	160
560	950		1000	630	560	500	280	220	160
		—	1120	710	630	560	315	250	185
		—	1250	800	710	630	355	280	200
630	990	—	1120	900	560	450	355	280	200
			1250	1000	630	560	400	315	220
			1400	1120	750	630	450	355	250
		—	—	—	—	—	500	400	280
710	1120		—	—	—	710	560	450	315
710	1120	—	—	—		800	630	500	355
