We're professional oil well pump motor manufacturers and suppliers in China, to buy or wholesale well pump motors from our factory. For quotation or if you have any questions, contact us now for customized and price.

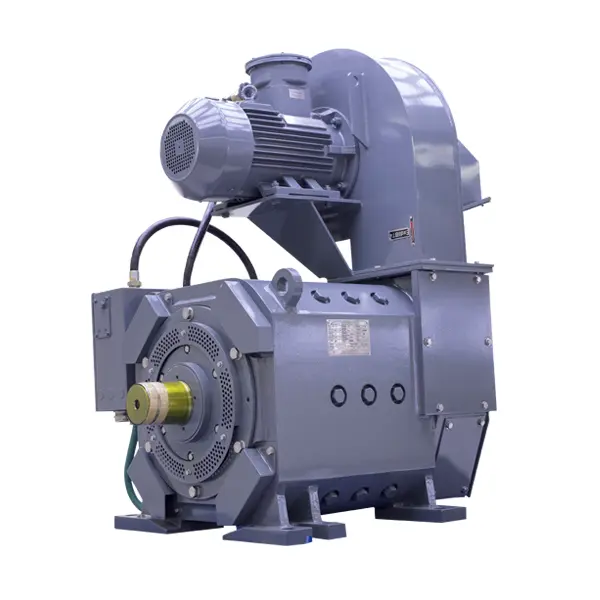

HZJ-01, HZJ-01A, HZJ-01B DC motors are four-pole series-excited DC motors with forced ventilation. The motor is horizontal, single-axis, and double-bearing support structure. It consists of a stator, armature, front and rear end covers, terminal box, fan, etc.
Motor model | HZJ-01、HZJ-01A、HZJ-01B |
Rated power | 800kW |
Rated voltage | 750V |
Rated current | 1150A |
Rated speed | 970 r/min |
Rated efficiency | 92.7% |
Maximum current | 1600A |
Maximum speed | 1500 r/min |
Excitation method | Series Excitation |
Insulation level (fixed/rotary) | H/H |
Ventilation method | Forced ventilation |
Motor quality | 3200kg |
As one of China professional large electric motor manufacturers, we focus on providing high-quality oil well pump motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M2 which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about oil well pump motor, well pump motors, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
