We're professional increased safety motor manufacturers and suppliers in China, to buy or wholesale explosion proof ac motor from our factory. For quotation or if you have any questions, contact us now for customized asynchronous motor and price.

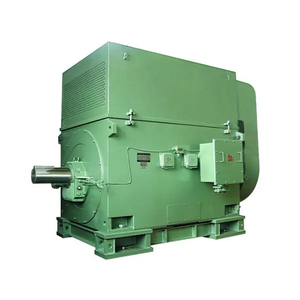

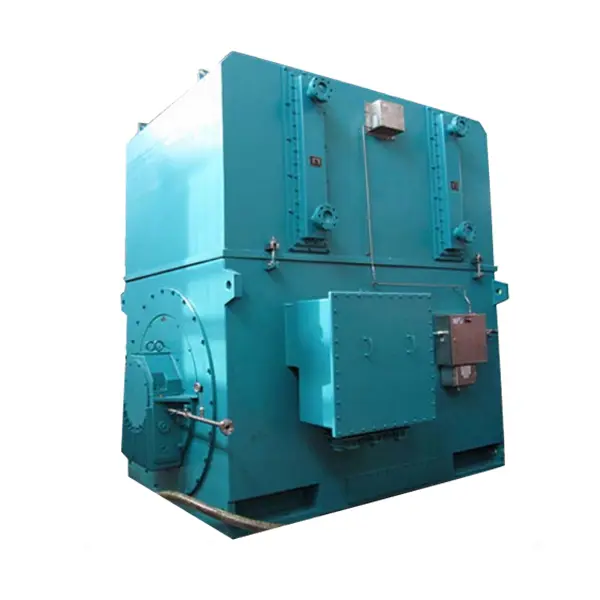

The motor adopts the internationally popular box-type structure, and the base is welded with steel plates, which is light in weight and has good rigidity. A closed air/water cooler (YAKS) is installed on the top of the motor. The cooler can be removed to observe or touch the inside of the motor, which is convenient for installation and maintenance.
This series of motors are mainly suitable for general mechanical equipment such as fans, pumps, compressors, crushers, chip cutting machines, transport machinery or other similar mechanical equipment in explosive gas environments such as petroleum, chemical industry, coal, power stations, metallurgy, transportation, textiles, medicine, and grain processing.
YAKS series motor (frame size 355~1000) frame, power and speed correspondence (3kV, 6kV) IC81W
| Frame No. | Synchronous speed r/min | ||||||||
3000 | 1500 | 1000 | 750 | 600 | 500 | 428 | 375 | 333 | |
| Power kW | |||||||||
1 2 355 3 4 5 | 185 200 220 250 280 | 185 200 220 250 280 | 185 200 | ||||||
1 2 400 3 4 5 | 315 355 400 450 | 315 355 400 450 | 220 250 280 315 355 | 185 200 220 250 280 | 185 200 | ||||
1 2 450 3 4 5 | 500 560 630 710 | 500 560 630 710 | 400 450 500 560 | 315 355 400 450 | 220 250 280 315 355 | 185 200 220 250 | 185 200 | ||
1 2 500 3 4 5 | 800 900 1000 1120 | 800 900 1000 1120 | 630 710 800 900 | 500 560 630 710 | 400 450 500 560 630 | 280 315 355 400 450 | 220 250 280 315 | 185 200 220 250 280 | 185 200 220 |
1 560 2 3 | 1250 1400 1600 | 1250 1400 1600 | 1000 1120 1250 | 800 900 1000 | 710 800 900 | 500 560 630 | 355 400 450 | 315 355 400 | 250 280 315 |
1 2 630 3 4 5 | 1800 2000 2240 2500 - | 1800 2000 2240 2500 - | 1400 1600 1800 2000 - | 1120 1250 1400 1600 1800 | 1000 1120 1250 1400 - | 710 800 900 1000 1120 | 500 560 630 710 800 | 450 500 560 630 710 | 355 400 450 500 560 |
1 2 710 3 4 5 | 2800 3150 3550 4000 - | 2800 3150 3550 - - | 2240 2500 2800 - - | 2000 2240 - - - | |||||
1 2 800 3 4 5 | 4500 5000 5600 - - | 4000 4500 5000 - - | 3150 3550 4000 4500 - | 2500 2800 3150 3550 - | |||||
1 2 900 3 4 5 | - - | 5600 6300 7100 - - | 5000 5600 6300 - - | 4000 4500 5000 - - | |||||
1 2 1000 3 4 5 | - - | 8000 9000 10000 - - | 7100 9000 - - - | 5600 6300 7100 8000 - | |||||
YAKS series motors (frame size 355~1000) frame size, power and speed correspondence (10kV) IC81W are shown
| Frame No. | Synchronous speed r/min | ||||||||
3000 | 1500 | 1000 | 750 | 600 | 500 | 428 | 375 | 333 | |
| Power kW | |||||||||
1 2 3 450 4 5 6 7 8 9 10 | 200 220 250 280 315 355 400 450 500 560 — | 200 220 250 280 315 355 400 450 500 560 — | — — — 200 220 250 280 315 355 400 | — — — — — — 200 220 250 280 | — | — | — | — | — |
1 2 3 500 4 5 6 | 630 710 800 900 1000 — | 630 710 800 900 1000 — | 450 500 560 630 710 — | 315 355 400 450 500 560 | 220 250 280 315 355 400 | — — 220 250 280 | — | — | — |
1 2 560 3 4 5 | 1120 1250 1400 — — | 1120 1250 1400 — — | 800 900 1000 1120 — | 630 710 800 900 — | 450 500 560 630 710 | 315 400 450 450 500 | 220 250 280 315 355 | 220 250 280 315 | 220 250 |
1 2 630 3 4 5 6 | 1600 1800 2000 — — — | 1600 1800 2000 2240 — — | 1250 1400 1600 1800 — — | 1000 1120 1250 1400 1600 — | 800 900 1000 1120 1250 — | 560 630 710 800 900 1000 | 400 450 500 560 630 710 | 355 400 450 500 560 630 | 280 315 355 400 450 500 |
1 2 710 3 4 5 | 2240 2500 2800 3150 - | 2500 2800 3150 - - | 2000 2240 2500 - - | 1800 2000 2240 - - | |||||
1 2 800 3 4 5 | 3550 4000 4500 5000 - | 3550 4000 4500 5000 - | 2800 3150 3550 - | 2500 2800 3150 - | |||||
1 2 900 3 4 5 | - - - - - | 5600 6300 7100 - - | 4000 4500 5000 5600 - | 3550 4000 4500 5000 | |||||
1 2 1000 3 4 5 | - - | 8000 9000 10000 - - | 6300 7100 8000 - - | 5600 6300 - - - | |||||
As one of China professional large electric motor manufacturers , we focus on providing high-quality increased safety motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M2 which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about increased safety motor, explosion proof ac motor, asynchronous motor，squirrel cage motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
