We're professional explosion proof ac motor manufacturers and suppliers in China, to buy or wholesale increased safety motor from our factory. For quotation or if you have any questions, contact us now for customized and price.
This series of motors are mainly suitable for general mechanical equipment such as fans, pumps, compressors, crushers, chip cutting machines, transportation machinery or other similar mechanical equipment in explosive gas environments such as petroleum, chemical industry, coal, power stations, metallurgy, transportation, textiles, medicine, and grain processing.

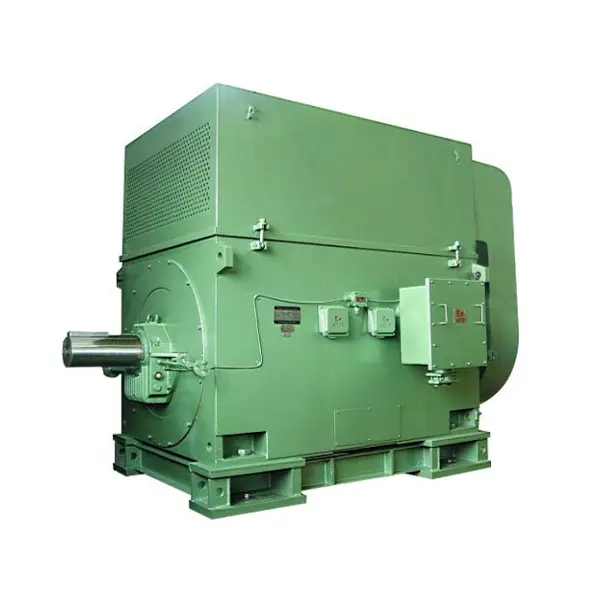

YAKK series motors (frame size 355~1000) frame, power and speed correspondence (3kV, 6kV) IC611, IC616
| Frame No. | Synchronous speed（r/min） | ||||||||
3000 | 1500 | 1000 | 750 | 600 | 500 | 428 | 375 | 333 | |
| Power（kW） | |||||||||
1 355 2 3 4 | 185 200 220 250 | 185 200 220 | — | — | — | — | — | — | — |
1 2 400 3 4 5 6 | 280 315 355 400 — | 250 280 315 355 400 — | 185 200 220 250 280 315 | — — — 185 200 220 | — | — | — | — | — |
1 2 450 3 4 5 | 450 500 560 630 — | 450 500 560 630 — | 355 400 450 500 — | 250 280 315 355 — | 185 200 220 250 280 | — — — 185 200 | — | — | — |
1 500 2 3 4 5 | 710 800 900 1000 | 710 800 900 1000 | 560 630 710 800 | 400 450 500 560 | 315 355 400 450 | 220 250 280 315 | 185 200 220 250 | 185 200 220 — | — |
1 560 2 3 4 | 1120 1250 1400 — | 1120 1250 1400 — | 900 1000 1120 — | 630 710 800 — | 500 560 630 710 | 355 400 450 500 | 280 315 355 400 | 250 280 315 — | 185 200 220 250 |
1 630 2 3 4 5 6 | 1600 1800 2000 2240 — — | 1600 1800 2000 2240 — — | 1250 1400 1600 1800 — — | 900 1000 1120 1250 — | 800 900 1000 1120 — — | 560 630 710 800 900 — | — 450 500 560 630 710 | — 355 400 450 500 560 | — 280 315 355 400 450 |
1 710 2 3 4 5 6 | — — — — — — | 2500 2800 3150 — — — | 2000 2240 2500 — — — | 1400 1600 1800 - - — | - - - - — — | - - - - — — | - - - - — — | - - - - — — | - - - - — — |
1 800 2 3 4 5 6 | — — — — — — | 3550 4000 4500 — — — | 2800 3150 3550 4000 — — | 2000 2240 2500 2800 - — | - - - - — — | - - - - — — | - - - - — — | - - - - — — | - - - - — — |
1 900 2 3 4 5 6 | — — — — — — | 5000 5600 6300 — — — | 4500 5000 5600 — — — | 3150 3550 4000 - - — | - - - - — — | - - - - — — | - - - - — — | - - - - — — | - - - - — — |
1 1000 2 3 4 5 6 | — — — — — — | 7100 8000 9000 — — — | 6300 7100 8000 - — — | 4500 5000 5600 6300 - — | - - - - — — | - - - - — —— | - - - - — — | - - - - — — | - - - - — — |
YAKK series motors (frame size 355~1000) frame size, power and speed correspondence (10kV) IC611, IC616
| Frame No. | Synchronous speed（r/min） | ||||||||
3000 | 1500 | 1000 | 750 | 600 | 500 | 428 | 375 | 333 | |
Power（kW） | |||||||||
1 2 3 450 4 5 6 7 8 | 200 220 250 280 315 355 400 450 | 200 220 250 280 315 355 400 450 | — — 200 220 250 280 315 | — | — | — | — | — | — |
1 2 500 3 4 5 6 7 | 500 560 630 710 800 — | 500 560 630 710 800 — | 355 400 450 500 560 — | 200 220 250 280 315 355 400 | — — — 220 250 280 | — | — | — | — |
1 2 560 3 4 5 | 900 1000 1120 — — | 900 1000 1120 — — | 630 710 800 900 — | 450 500 560 630 — | 315 355 400 450 500 | 220 250 280 315 355 | — — 220 250 280 | — — — — 220 | — |
1 2 630 3 4 5 6 | 1250 1400 1600 — — — | 1250 1400 1600 1800 2000 — | 1000 1120 1250 1400 | 710 800 900 1000 | 560 630 710 800 900 1000 | 400 450 500 560 630 710 | 315 355 400 450 500 560 | 250 280 315 355 400 450 | — 220 250 280 315 355 |
1 2 710 3 4 5 6 | — — — — — — | 2240 2500 2800 - - — | 1600 1800 2000 2240 | 112 1250 1400 1600 | |||||
1 2 800 3 4 5 6 | — — — — — — | 3150 3550 4000 - - — | 2500 2800 3150 | 1800 2000 2240 | |||||
1 2 900 3 4 5 6 | — — — — — — | 4500 5000 5600 - - — | 3550 4000 4500 | 2500 2800 3150 | |||||
1 2 1000 3 4 5 6 | — — — — — — | 6300 7100 8000 - - — | 5000 5600 6300 7100 | 3550 4000 4500 5000 5600 | |||||
As one of China professional large electric motor manufacturers, we focus on providing high-quality explosion proof ac motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M2 which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about explosion proof ac motor, increased safety motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
