We're professional mill motor manufacturers and suppliers in China, to buy or wholesale milling machine motor from our factory. For quotation or if you have any questions, contact us now for customized and price.

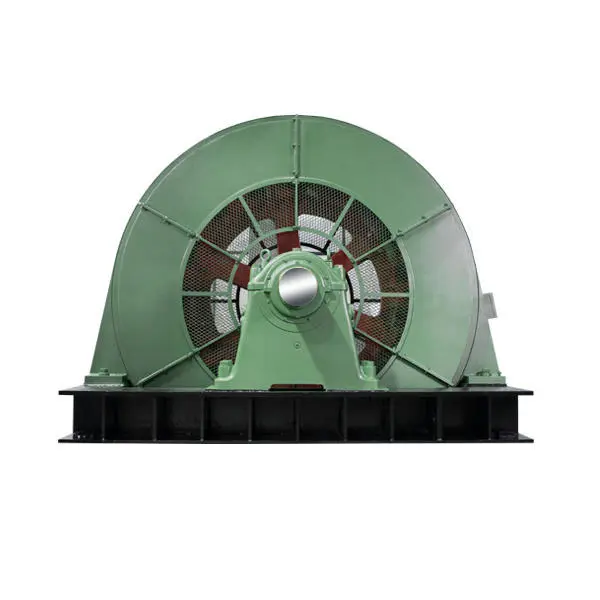

This series of motors are mainly suitable for driving large AC three-phase synchronous motors for mining mills. Mainly used for driving grid ball mills, rod mills, coal mills, etc.
model | Rating | Power Factor | Stall current | Increase torque | Pull-in torque | Loss of step torque | weight | ||||
power | Voltage | Current | Speed | ||||||||
Specified current | Rated torque | Rated torque | Rated torque | ||||||||
TDMK350-32 | 350 | 6 | 41 | 187.5 | 0.9 | 6.72 | 2.04 | 1.1 | 3.56 | 10.7 | |
TDMK400-32 | 400 | 6 | 47 | 187.5 | 0.9 | 6.54 | 2.12 | 1.132 | 4.06 | 11.3 | Shaft drilling |
TDMK400-32 | 400 | 10 | 28 | 187.5 | 0.9 | 6.67 | 1.9 | 1.09 | 3.21 | 12.2 | |
TDMK500-32 | 500 | 10 | 35 | 187.5 | 0.9 | 6.24 | 1.71 | 1.03 | 3.5 | 13.7 | |
TDMK500-36 | 500 | 6 | 58 | 167 | 0.9 | 6.27 | 1.7 | 1.04 | 3.0 | 12.7 | |
TDMK630-36 | 630 | 6 | 74 | 167 | 0.9 | 6.13 | 1.73 | 1.02 | 2.9 | 13.5 | |
TDMK800-36 | 800 | 6 | 93 | 167 | 0.9 | 5.9 | 1.7 | 1.0 | 2.7 | 16.0 | |
TDMK800-36 | 800 | 10 | 55.8 | 167 | 0.9 | 6.67 | 1.93 | 1.08 | 3.47 | 16.8 | |
TDMK1000-36 | 1000 | 6 | 115 | 167 | 0.9 | 6.1 | 1.8 | 1.0 | 3.0 | 16.0 | |
TDMK1000-36 | 1000 | 10 | 69 | 167 | 0.9 | 5.0 | 1.7 | 1.0 | 2.6 | 17.7 | |
TDMK1600-36 | 1600 | 6 | 181 | 167 | 0.9 | 6.7 | 1.87 | 1.19 | 2.98 | 31.0 | |
TDMK1250-40 | 1250 | 6 | 143 | 150 | 0.96.17 | 1.7 | 1.03.36 | 17.7 | |||
As one of China professional large electric motor manufacturers, we focus on providing high-quality mill motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M2 which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about mill motor, milling machine motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
