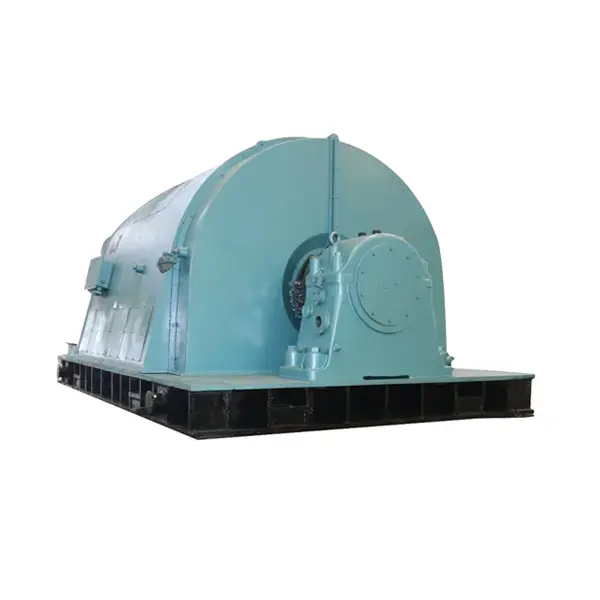

We're professional three phase synchronous motor manufacturers and suppliers in China, to buy or wholesale 3 phase synchronous motor from our factory. For quotation or if you have any questions, contact us now for customizedand price.
● The structure is more reasonable；
● The technology is more advanced；
● High efficiency, low noise and vibration；
● High reliability；
● Convenient for installation and maintenance；
Three phase synchronous motors are widely used in industries such as petroleum, chemical industry, electric power, metallurgy, coal mining, etc., to drive fans, water pumps, compressors and other general equipment, and require the use environment to be free of corrosive gases such as acid and alkali.
Model | Rating | Power Factor | Efficiency | Stall current | Stall torque | Pull-in torque | Loss of step torque | Flywheel torque (GD2 ) Motor + load | Rated dynamic magnet voltage | Rated excitation current | Cooling method | Weight | |||
power | Voltage | Current | Speed | ||||||||||||
Rated current | Rated torque | Rated torque | Rated torque | ||||||||||||
T1600-4/1180 | 1600 | 6 | 179 | 1500 | 0.9 | 95.7 | 3.9 | 1.4 | 0.85 | 1.95 | 32.2 | 331.6 | Water cooling | 9.9 | |
T2000-4/1430 | 2000 | 6 | 224 | 1500 | 0.9 | 95.5 | 4.46 | 1.35 | 0.95 | 2.11 | 33.5 | 372 | Water cooling | 13.9 | |
T2200-4/1430 | 2200 | 10 | 148 | 1500 | 0.9 | 95.5 | 4.74 | 15 | 1.0 | 2.12 | 2100 | 36 | 366 | Water cooling | 14.3 |
T2500-4/1430 | 2500 | 10 | 168 | 1500 | 0.9 | 95.6 | 4.66 | 1.55 | 0.98 | 2.0 | 39 | 366 | Water cooling | 14.8 | |
T2800-4/1430* | 2800 | 6 | 312 | 1500 | 0.9 | 96.2 | 3.9 | 1.26 | 0.80 | 1.87 | 8080 | 35 | 400 | Water cooling | 15.0 |
T4000-4/1430 | 4000 | 10 | 267 | 1500 | 0.9 | 96.9 | 6.5 | 2.22 | 1.44 | 1.87 | 30 | 519 | Water cooling | 16.3 | |
T2200-6/1730 | 2200 | 6 | 246 | 1000 | 0.9 | 95.6 | 4.74 | 1.46 | 0.96 | 2.4 | 45 | 409 | 17.0 | ||
T3200-6/1760 | 3200 | 10 | 214 | 1000 | 0.9 | 96.1 | 6.55 | 1.80 | 1.59 | 2.24 | 33700 | 48 | 402 | Water cooling | 21.5 |
T5400-9/1730 | 5400 | 10 | 359 | 1000 | 0.9 | 90.0 | 4.8 | 1.95 | 0.88 | 2.0 | 46000 | 64 | 419 | Water cooling | 29.9 |
T7000-6/1730 | 7000 | 10 | 463 | 1000 | 0.9 | 97.0 | 4.8 | 1.80 | 0.82 | 0.9 | 93 | 407 | Water cooling | 32.0 | |

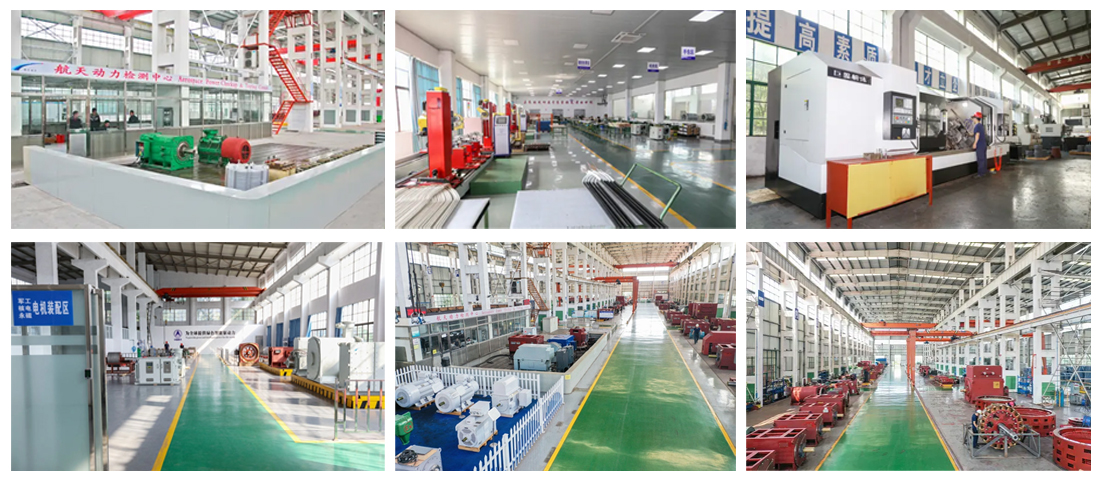

As one of China professional large electric motor manufacturers,we focus on providing high-quality three phase synchronous motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M2 which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about three phase synchronous motor, 3 phase synchronous motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
