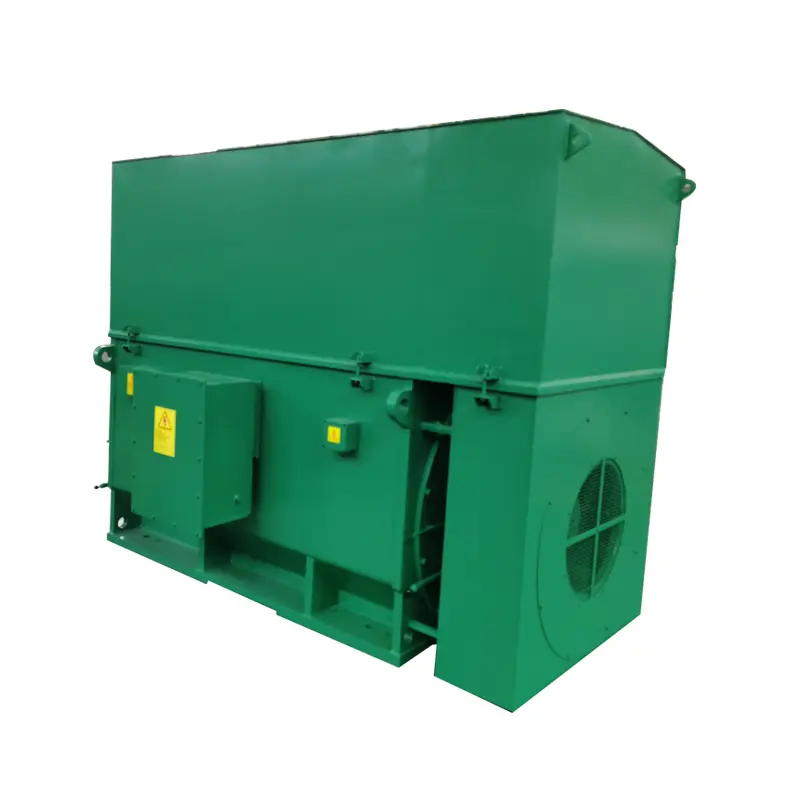

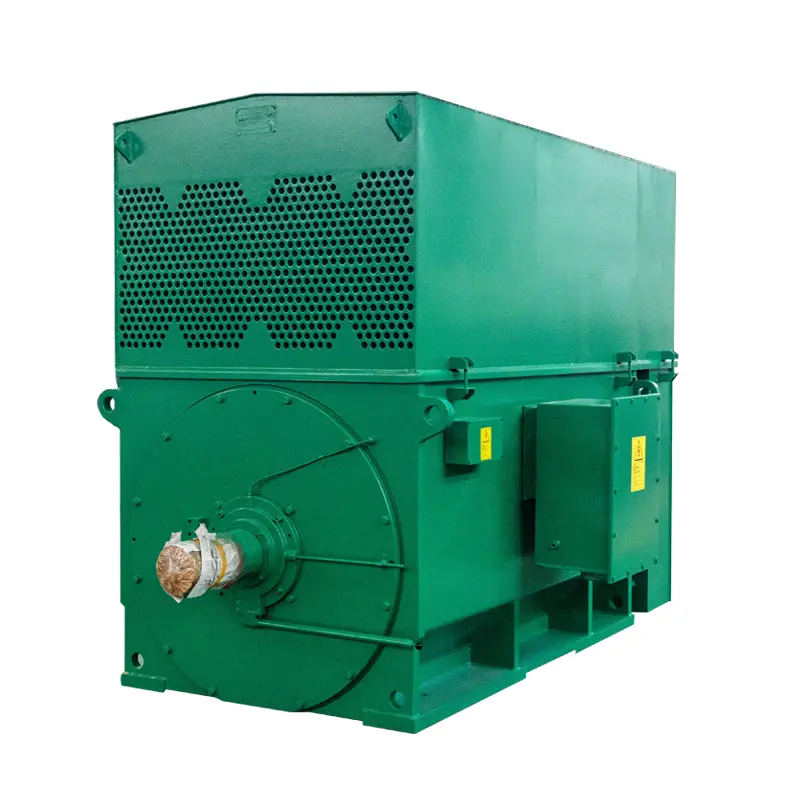

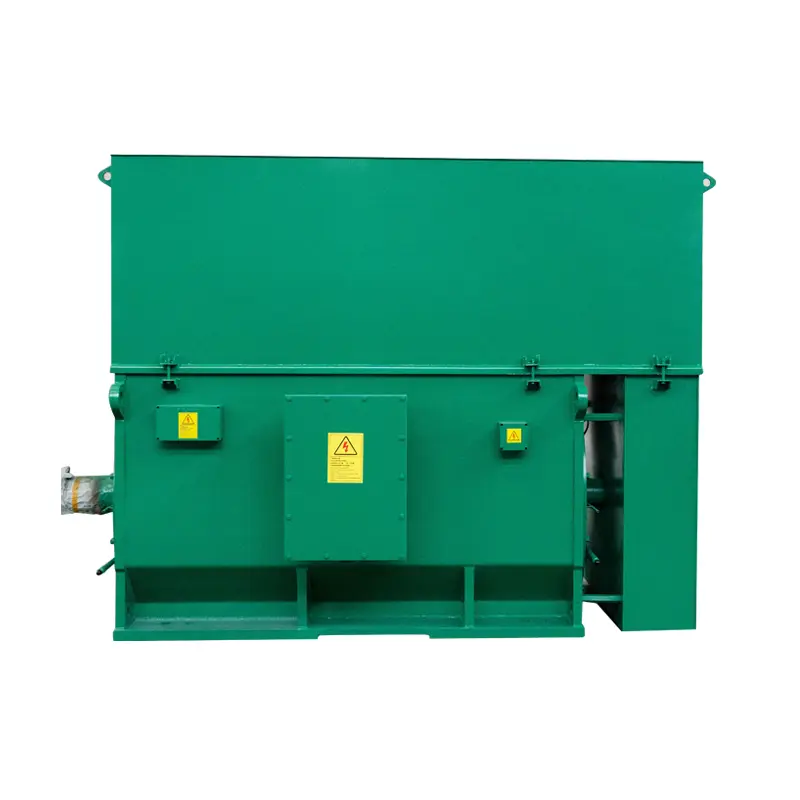

We're professional dust ignition proof motor manufacturers and suppliers in China, to buy or wholesale explosion proof ac motor from our factory. For quotation or if you have any questions, contact us now for customized dust proof motor and price.
This series of products uses exquisite materials and is well made. It has the advantages of high power index, low noise and vibration, high reliability, easy use, installation and maintenance.
This series of products are mainly suitable for general mechanical equipment such as fans, water pumps, compressors, crushers, chip cutting machines, transportation machinery or other similar mechanical equipment in industries such as petroleum, chemical industry, coal, power stations, metallurgy, transportation, textile, medicine, and grain processing.
Technical data of YFBKK new series high voltage dust three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque/rated torque | Blocked rotor torque/rated torque | Lock current/rated current | Weight kg |
YFBKK315-2 | 200 | 25 | 2971 | 93.0 | 0.84 | 1.8 | 0.6 | 7.0 | 2322 |
YFBKK315-2 | 220 | 27 | 2971 | 93.1 | 0.85 | 1.8 | 0.6 | 7.0 | 2385 |
YFBKK315-2 | 250 | 30 | 2968 | 93.2 | 0.85 | 1.8 | 0.6 | 7.0 | 2466 |
YFBKK315-2 | 280 | 34 | 2969 | 93.4 | 0.85 | 1.8 | 0.6 | 7.0 | 2530 |
YFBKK355-2 | 315 | 38 | 2975 | 93.7 | 0.85 | 1.8 | 0.6 | 7.0 | 2570 |
YFBKK355-2 | 355 | 42 | 2976 | 93.9 | 0.86 | 1.8 | 0.6 | 7.0 | 2635 |
YFBKK355-2 | 400 | 48 | 2974 | 94.2 | 0.86 | 1.8 | 0.6 | 7.0 | 2715 |
YFBKK355-2 | 450 | 53 | 2973 | 94.4 | 0.86 | 1.8 | 0.6 | 7.0 | 2795 |
Technical data of YFBKK new series high voltage dust three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque/rated torque | Blocked rotor torque/rated torque | Lock current/rated current | Weight kg |
YFBKK400-2 | 500 | 59 | 2977 | 94.7 | 0.86 | 1.8 | 0.6 | 7.0 | 3305 |
YFBKK400-2 | 560 | 66 | 2976 | 94.9 | 0.86 | 1.8 | 0.6 | 7.0 | 3395 |
YFBKK400-2 | 630 | 74 | 2976 | 95.0 | 0.86 | 1.8 | 0.6 | 7.0 | 3513 |
YFBKK400-2 | 710 | 83 | 2976 | 95.1 | 0.87 | 1.8 | 0.6 | 7.0 | 3630 |
YFBKK450-2 | 800 | 93 | 2975 | 95.3 | 0.87 | 1.8 | 0.6 | 7.0 | 4359 |
YFBKK450-2 | 900 | 104 | 2976 | 95.5 | 0.87 | 1.8 | 0.6 | 7.0 | 4514 |
YFBKK450-2 | 1000 | 116 | 2977 | 95.5 | 0.87 | 1.8 | 0.6 | 7.0 | 4639 |
YFBKK450-2 | 1120 | 130 | 2976 | 95.6 | 0.87 | 1.8 | 0.6 | 7.0 | 4779 |
YFBKK500-2 | 1250 | 144 | 2981 | 95.8 | 0.87 | 1.8 | 0.6 | 7.0 | 5769 |
YFBKK500-2 | 1400 | 161 | 2981 | 95.9 | 0.87 | 1.8 | 0.6 | 7.0 | 5929 |
YFBKK500-2 | 1600 | 182 | 2980 | 96.0 | 0.88 | 1.8 | 0.6 | 7.0 | 6299 |
YFBKK500-2 | 1800 | 205 | 2980 | 96.0 | 0.88 | 1.8 | 0.6 | 7.0 | 6465 |
YFBKK560-2 | 2000 | 227 | 2981 | 96.2 | 0.88 | 1.8 | 0.6 | 7.0 | 8462 |
YFBKK560-2 | 2240 | 254 | 2982 | 96.3 | 0.88 | 1.8 | 0.6 | 7.0 | 8715 |
YFBKK560-2 | 2500 | 284 | 2983 | 96.4 | 0.88 | 1.8 | 0.6 | 7.0 | 8965 |
YFBKK560-2 | 2800 | 318 | 2983 | 96.4 | 0.88 | 1.8 | 0.6 | 7.0 | 9433 |
YFBKK630-2 | 3150 | 357 | 2984 | 96.5 | 0.88 | 1.8 | 0.6 | 7.0 | 10540 |
YFBKK630-2 | 3550 | 397 | 2984 | 96.6 | 0.89 | 1.8 | 0.6 | 7.0 | 10780 |
YFBKK630-2 | 4000 | 448 | 2984 | 96.6 | 0.89 | 1.8 | 0.6 | 7.0 | 11401 |
YFBKK630-2 | 4500 | 503 | 2984 | 96.7 | 0.89 | 1.8 | 0.6 | 7.0 | 11880 |
YFBKK315-4 | 200 | 24 | 1482 | 93.4 | 0.85 | 1.8 | 0.7 | 6.5 | 2395 |
YFBKK315-4 | 220 | 27 | 1483 | 93.5 | 0.85 | 1.8 | 0.7 | 6.5 | 2450 |
YFBKK315-4 | 250 | 30 | 1481 | 93.6 | 0.85 | 1.8 | 0.7 | 6.5 | 2505 |
YFBKK315-4 | 280 | 34 | 1482 | 93.7 | 0.85 | 1.8 | 0.7 | 6.5 | 2559 |
YFBKK355-4 | 315 | 38 | 1484 | 93.8 | 0.86 | 1.8 | 0.7 | 6.5 | 2625 |
YFBKK355-4 | 355 | 42 | 1482 | 94.0 | 0.86 | 1.8 | 0.7 | 6.5 | 2709 |
YFBKK355-4 | 400 | 48 | 1484 | 94.2 | 0.86 | 1.8 | 0.7 | 6.5 | 2793 |
YFBKK355-4 | 450 | 53 | 1483 | 94.4 | 0.86 | 1.8 | 0.7 | 6.5 | 2815 |
YFBKK400-4 | 500 | 59 | 1485 | 94.5 | 0.86 | 1.8 | 0.7 | 6.5 | 3435 |
YFBKK400-4 | 560 | 66 | 1485 | 94.7 | 0.86 | 1.8 | 0.7 | 6.5 | 3530 |
YFBKK400-4 | 630 | 74 | 1485 | 94.9 | 0.86 | 1.8 | 0.7 | 6.5 | 3640 |
YFBKK400-4 | 710 | 84 | 1485 | 95.0 | 0.86 | 1.8 | 0.7 | 6.5 | 3757 |
YFBKK450-4 | 800 | 93 | 1488 | 95.3 | 0.87 | 1.8 | 0.7 | 6.5 | 4540 |
YFBKK450-4 | 900 | 104 | 1487 | 95.4 | 0.87 | 1.8 | 0.7 | 6.5 | 4800 |
YFBKK450-4 | 1000 | 116 | 1488 | 95.5 | 0.87 | 1.8 | 0.7 | 6.5 | 5061 |
YFBKK450-4 | 1120 | 130 | 1487 | 95.5 | 0.87 | 1.8 | 0.7 | 6.5 | 5180 |
Technical data of YFBKK new series high voltage dust three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque/rated torque | Blocked rotor torque/rated torque | Lock current/rated current | Weight kg |
YFBKK500-4 | 1250 | 143 | 1487 | 95.7 | 0.88 | 1.8 | 0.6 | 6.5 | 6178 |
YFBKK500-4 | 1400 | 160 | 1487 | 95.8 | 0.88 | 1.8 | 0.6 | 6.5 | 6353 |
YFBKK500-4 | 1600 | 182 | 1486 | 95.9 | 0.88 | 1.8 | 0.6 | 6.5 | 6710 |
YFBKK500-4 | 1800 | 205 | 1487 | 96.0 | 0.88 | 1.8 | 0.6 | 6.5 | 6895 |
YFBKK560-4 | 2000 | 228 | 1492 | 96.1 | 0.88 | 1.8 | 0.6 | 6.5 | 7844 |
YFBKK560-4 | 2240 | 255 | 1492 | 96.2 | 0.88 | 1.8 | 0.6 | 6.5 | 8280 |
YFBKK560-4 | 2500 | 284 | 1491 | 96.2 | 0.88 | 1.8 | 0.6 | 6.5 | 8530 |
YFBKK560-4 | 2800 | 318 | 1491 | 96.3 | 0.88 | 1.8 | 0.6 | 6.5 | 8983 |
YFBKK630-4 | 3150 | 357 | 1491 | 96.4 | 0.88 | 1.8 | 0.6 | 6.5 | 11085 |
YFBKK630-4 | 3550 | 398 | 1491 | 96.4 | 0.89 | 1.8 | 0.6 | 6.5 | 11595 |
YFBKK630-4 | 4000 | 448 | 1491 | 96.5 | 0.89 | 1.8 | 0.6 | 6.5 | 12178 |
YFBKK630-4 | 4500 | 504 | 1491 | 96.5 | 0.89 | 1.8 | 0.6 | 6.5 | 12745 |
YFBKK315-6 | 160 | 20 | 986 | 93.0 | 0.82 | 1.8 | 0.8 | 5.5 | 2481 |
YFBKK315-6 | 185 | 23 | 986 | 93.0 | 0.82 | 1.8 | 0.8 | 5.5 | 2547 |
YFBKK315-6 | 200 | 25 | 985 | 93.2 | 0.82 | 1.8 | 0.8 | 5.5 | 2547 |
YFBKK315-6 | 220 | 28 | 986 | 93.3 | 0.82 | 1.8 | 0.8 | 5.5 | 2604 |
YFBKK355-6 | 250 | 31 | 986 | 93.5 | 0.82 | 1.8 | 0.8 | 5.5 | 2696 |
YFBKK355-6 | 280 | 35 | 987 | 93.8 | 0.82 | 1.8 | 0.8 | 5.5 | 2786 |
YFBKK355-6 | 315 | 39 | 987 | 94.0 | 0.83 | 1.8 | 0.8 | 5.5 | 2952 |
YFBKK355-6 | 355 | 44 | 985 | 94.2 | 0.83 | 1.8 | 0.8 | 5.5 | 2952 |
YFBKK400-6 | 400 | 49 | 989 | 94.3 | 0.83 | 1.8 | 0.8 | 5.5 | 3427 |
YFBKK400-6 | 450 | 55 | 988 | 94.5 | 0.83 | 1.8 | 0.8 | 5.5 | 3630 |
YFBKK400-6 | 500 | 61 | 988 | 94.8 | 0.83 | 1.8 | 0.8 | 5.5 | 3740 |
YFBKK400-6 | 560 | 68 | 989 | 94.9 | 0.84 | 1.8 | 0.8 | 5.5 | 3842 |
YFBKK450-6 | 630 | 76 | 989 | 95.0 | 0.84 | 1.8 | 0.8 | 5.5 | 4686 |
YFBKK450-6 | 710 | 85 | 989 | 95.2 | 0.84 | 1.8 | 0.8 | 5.5 | 4971 |
YFBKK450-6 | 800 | 96 | 989 | 95.4 | 0.84 | 1.8 | 0.8 | 5.5 | 5103 |
YFBKK450-6 | 900 | 107 | 989 | 95.5 | 0.85 | 1.8 | 0.8 | 5.5 | 5245 |
YFBKK500-6 | 1000 | 119 | 991 | 95.5 | 0.85 | 1.8 | 0.8 | 5.5 | 5959 |
YFBKK500-6 | 1120 | 133 | 991 | 95.6 | 0.85 | 1.8 | 0.8 | 5.5 | 6291 |
YFBKK500-6 | 1250 | 146 | 990 | 95.8 | 0.86 | 1.8 | 0.8 | 5.5 | 6623 |
YFBKK500-6 | 1400 | 163 | 991 | 95.9 | 0.86 | 1.8 | 0.8 | 5.5 | 6955 |
YFBKK560-6 | 1600 | 186 | 993 | 96.0 | 0.86 | 1.8 | 0.7 | 5.5 | 7749 |
YFBKK560-6 | 1800 | 210 | 993 | 96.0 | 0.86 | 1.8 | 0.7 | 5.5 | 8243 |
YFBKK560-6 | 2000 | 233 | 993 | 96.2 | 0.86 | 1.8 | 0.7 | 5.5 | 8669 |
YFBKK560-6 | 2240 | 261 | 993 | 96.2 | 0.86 | 1.8 | 0.7 | 5.5 | 9103 |
YFBKK630-6 | 2500 | 287 | 993 | 96.3 | 0.87 | 1.8 | 0.7 | 5.5 | 10591 |
Technical data of YFBKK new series high voltage dust three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque/rated torque | Blocked rotor torque/rated torque | Lock current/rated current | Weight kg |
YFBKK630-6 | 2800 | 322 | 992 | 96.3 | 0.87 | 1.8 | 0.7 | 5.5 | 11089 |
YFBKK630-6 | 3150 | 361 | 992 | 96.4 | 0.87 | 1.8 | 0.7 | 5.5 | 11610 |
YFBKK630-6 | 3550 | 407 | 993 | 96.4 | 0.87 | 1.8 | 0.7 | 5.5 | 12123 |
YFBKK355-8 | 200 | 26 | 739 | 93.2 | 0.78 | 1.8 | 0.8 | 5.5 | 2736 |
YFBKK355-8 | 220 | 29 | 739 | 93.4 | 0.78 | 1.8 | 0.8 | 5.5 | 2816 |
YFBKK355-8 | 250 | 33 | 740 | 93.5 | 0.79 | 1.8 | 0.8 | 5.5 | 2886 |
YFBKK355-8 | 280 | 36 | 739 | 93.7 | 0.79 | 1.8 | 0.8 | 5.5 | 2986 |
YFBKK400-8 | 315 | 41 | 739 | 93.9 | 0.79 | 1.8 | 0.8 | 5.5 | 3427 |
YFBKK400-8 | 355 | 46 | 739 | 94.0 | 0.79 | 1.8 | 0.8 | 5.5 | 3527 |
YFBKK400-8 | 400 | 51 | 739 | 94.2 | 0.80 | 1.8 | 0.8 | 5.5 | 3728 |
YFBKK400-8 | 450 | 57 | 739 | 94.3 | 0.80 | 1.8 | 0.8 | 5.5 | 3829 |
YFBKK450-8 | 500 | 64 | 741 | 94.7 | 0.80 | 1.8 | 0.8 | 5.5 | 4864 |
YFBKK450-8 | 560 | 71 | 741 | 94.9 | 0.80 | 1.8 | 0.8 | 5.5 | 4956 |
YFBKK450-8 | 630 | 78 | 741 | 95.0 | 0.82 | 1.8 | 0.8 | 5.5 | 5088 |
YFBKK450-8 | 710 | 88 | 741 | 95.0 | 0.82 | 1.8 | 0.8 | 5.5 | 5230 |
YFBKK500-8 | 800 | 99 | 743 | 95.2 | 0.82 | 1.8 | 0.8 | 5.5 | 6060 |
YFBKK500-8 | 900 | 108 | 743 | 95.3 | 0.84 | 1.8 | 0.8 | 5.5 | 6229 |
YFBKK500-8 | 1000 | 120 | 742 | 95.4 | 0.84 | 1.8 | 0.8 | 5.5 | 6567 |
YFBKK500-8 | 1120 | 134 | 742 | 95.5 | 0.84 | 1.8 | 0.8 | 5.5 | 6900 |
YFBKK560-8 | 1250 | 150 | 743 | 95.6 | 0.84 | 1.8 | 0.7 | 5.5 | 7768 |
YFBKK560-8 | 1400 | 168 | 743 | 95.7 | 0.84 | 1.8 | 0.7 | 5.5 | 8197 |
YFBKK560-8 | 1600 | 191 | 743 | 95.8 | 0.84 | 1.8 | 0.7 | 5.5 | 8608 |
YFBKK560-8 | 1800 | 213 | 743 | 95.8 | 0.85 | 1.8 | 0.7 | 5.5 | 9016 |
YFBKK630-8 | 2000 | 236 | 743 | 95.9 | 0.85 | 1.8 | 0.7 | 5.5 | 10273 |
YFBKK630-8 | 2240 | 264 | 743 | 95.9 | 0.85 | 1.8 | 0.7 | 5.5 | 10786 |
YFBKK630-8 | 2500 | 295 | 743 | 96.0 | 0.85 | 1.8 | 0.7 | 5.5 | 11533 |
YFBKK630-8 | 2800 | 330 | 743 | 96.0 | 0.85 | 1.8 | 0.7 | 5.5 | 12063 |
YFBKK400-10 | 250 | 35 | 591 | 92.9 | 0.75 | 1.8 | 0.8 | 5.5 | 3406 |
YFBKK400-10 | 280 | 39 | 591 | 93.1 | 0.75 | 1.8 | 0.8 | 5.5 | 3505 |
YFBKK400-10 | 315 | 43 | 591 | 93.4 | 0.76 | 1.8 | 0.8 | 5.5 | 3605 |
YFBKK400-10 | 355 | 48 | 590 | 93.6 | 0.76 | 1.8 | 0.8 | 5.5 | 3803 |
YFBKK450-10 | 400 | 54 | 592 | 93.8 | 0.76 | 1.8 | 0.8 | 5.5 | 4663 |
YFBKK450-10 | 450 | 61 | 592 | 93.9 | 0.76 | 1.8 | 0.8 | 5.5 | 4910 |
YFBKK450-10 | 500 | 65 | 592 | 94.2 | 0.78 | 1.8 | 0.8 | 5.5 | 5048 |
YFBKK450-10 | 560 | 73 | 592 | 94.3 | 0.78 | 1.8 | 0.8 | 5.5 | 5186 |
YFBKK500-10 | 630 | 82 | 594 | 94.4 | 0.78 | 1.8 | 0.8 | 5.5 | 5865 |
YFBKK500-10 | 710 | 93 | 593 | 94.5 | 0.78 | 1.8 | 0.8 | 5.5 | 6190 |
YFBKK500-10 | 800 | 102 | 593 | 94.8 | 0.80 | 1.8 | 0.8 | 5.5 | 6524 |
YFBKK500-10 | 900 | 114 | 593 | 94.9 | 0.80 | 1.8 | 0.8 | 5.5 | 6864 |
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque/rated torque | Blocked rotor torque/rated torque | Lock current/rated current | Weight kg |
YFBKK560-10 | 1000 | 127 | 594 | 95.0 | 0.80 | 1.8 | 0.7 | 5.5 | 7421 |
YFBKK560-10 | 1120 | 142 | 593 | 95.1 | 0.80 | 1.8 | 0.7 | 5.5 | 7807 |
YFBKK560-10 | 1250 | 158 | 594 | 95.4 | 0.80 | 1.8 | 0.7 | 5.5 | 8187 |
YFBKK560-10 | 1400 | 176 | 594 | 95.5 | 0.80 | 1.8 | 0.7 | 5.5 | 8598 |
YFBKK630-10 | 1600 | 202 | 594 | 95.5 | 0.80 | 1.8 | 0.7 | 5.5 | 9755 |
YFBKK630-10 | 1800 | 224 | 594 | 95.6 | 0.81 | 1.8 | 0.7 | 5.5 | 10213 |
YFBKK630-10 | 2000 | 249 | 594 | 95.6 | 0.81 | 1.8 | 0.7 | 5.5 | 11102 |
YFBKK630-10 | 2240 | 278 | 594 | 95.7 | 0.81 | 1.8 | 0.7 | 5.5 | 11511 |
YFBKK450-12 | 315 | 45 | 494 | 93.4 | 0.72 | 1.8 | 0.8 | 5.5 | 4656 |
YFBKK450-12 | 355 | 49 | 494 | 93.6 | 0.74 | 1.8 | 0.8 | 5.5 | 4774 |
YFBKK450-12 | 400 | 55 | 494 | 93.8 | 0.74 | 1.8 | 0.8 | 5.5 | 5021 |
YFBKK450-12 | 450 | 62 | 494 | 93.9 | 0.74 | 1.8 | 0.8 | 5.5 | 5159 |
YFBKK500-12 | 500 | 69 | 494 | 94.2 | 0.74 | 1.8 | 0.8 | 5.5 | 5837 |
YFBKK500-12 | 560 | 75 | 494 | 94.3 | 0.76 | 1.8 | 0.8 | 5.5 | 6181 |
YFBKK500-12 | 630 | 84 | 494 | 94.4 | 0.76 | 1.8 | 0.8 | 5.5 | 6490 |
YFBKK500-12 | 710 | 95 | 494 | 94.5 | 0.76 | 1.8 | 0.8 | 5.5 | 6824 |
YFBKK560-12 | 800 | 107 | 494 | 94.8 | 0.76 | 1.8 | 0.7 | 5.5 | 7296 |
YFBKK560-12 | 900 | 120 | 494 | 94.9 | 0.76 | 1.8 | 0.7 | 5.5 | 7668 |
YFBKK560-12 | 1000 | 133 | 494 | 95.0 | 0.76 | 1.8 | 0.7 | 5.5 | 8073 |
YFBKK560-12 | 1120 | 149 | 494 | 95.0 | 0.76 | 1.8 | 0.7 | 5.5 | 8465 |
YFBKK630-12 | 1250 | 162 | 495 | 95.1 | 0.78 | 1.8 | 0.7 | 5.5 | 9561 |
YFBKK630-12 | 1400 | 182 | 495 | 95.1 | 0.78 | 1.8 | 0.7 | 5.5 | 10068 |
YFBKK630-12 | 1600 | 207 | 495 | 95.2 | 0.78 | 1.8 | 0.7 | 5.5 | 10514 |
YFBKK630-12 | 1800 | 233 | 495 | 95.2 | 0.78 | 1.8 | 0.7 | 5.5 | 11014 |
As one of China professional large electric motor manufacturers, we focus on providing high-quality dust ignition proof motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M2 which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about dust ignition proof motor, explosion proof ac motor, cage motor,dust proof motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
We're professional dust ignition proof motor manufacturers and suppliers in China, to buy or wholesale explosion proof ac motor from our factory. For quotation or if you have any questions, contact us now for customized dust proof motor and price.
This series of products uses exquisite materials and is well made. It has the advantages of high power index, low noise and vibration, high reliability, easy use, installation and maintenance.
This series of products are mainly suitable for general mechanical equipment such as fans, water pumps, compressors, crushers, chip cutting machines, transportation machinery or other similar mechanical equipment in industries such as petroleum, chemical industry, coal, power stations, metallurgy, transportation, textile, medicine, and grain processing.
Technical data of YFBKK new series high voltage dust three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque/rated torque | Blocked rotor torque/rated torque | Lock current/rated current | Weight kg |
YFBKK315-2 | 200 | 25 | 2971 | 93.0 | 0.84 | 1.8 | 0.6 | 7.0 | 2322 |
YFBKK315-2 | 220 | 27 | 2971 | 93.1 | 0.85 | 1.8 | 0.6 | 7.0 | 2385 |
YFBKK315-2 | 250 | 30 | 2968 | 93.2 | 0.85 | 1.8 | 0.6 | 7.0 | 2466 |
YFBKK315-2 | 280 | 34 | 2969 | 93.4 | 0.85 | 1.8 | 0.6 | 7.0 | 2530 |
YFBKK355-2 | 315 | 38 | 2975 | 93.7 | 0.85 | 1.8 | 0.6 | 7.0 | 2570 |
YFBKK355-2 | 355 | 42 | 2976 | 93.9 | 0.86 | 1.8 | 0.6 | 7.0 | 2635 |
YFBKK355-2 | 400 | 48 | 2974 | 94.2 | 0.86 | 1.8 | 0.6 | 7.0 | 2715 |
YFBKK355-2 | 450 | 53 | 2973 | 94.4 | 0.86 | 1.8 | 0.6 | 7.0 | 2795 |
Technical data of YFBKK new series high voltage dust three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque/rated torque | Blocked rotor torque/rated torque | Lock current/rated current | Weight kg |
YFBKK400-2 | 500 | 59 | 2977 | 94.7 | 0.86 | 1.8 | 0.6 | 7.0 | 3305 |
YFBKK400-2 | 560 | 66 | 2976 | 94.9 | 0.86 | 1.8 | 0.6 | 7.0 | 3395 |
YFBKK400-2 | 630 | 74 | 2976 | 95.0 | 0.86 | 1.8 | 0.6 | 7.0 | 3513 |
YFBKK400-2 | 710 | 83 | 2976 | 95.1 | 0.87 | 1.8 | 0.6 | 7.0 | 3630 |
YFBKK450-2 | 800 | 93 | 2975 | 95.3 | 0.87 | 1.8 | 0.6 | 7.0 | 4359 |
YFBKK450-2 | 900 | 104 | 2976 | 95.5 | 0.87 | 1.8 | 0.6 | 7.0 | 4514 |
YFBKK450-2 | 1000 | 116 | 2977 | 95.5 | 0.87 | 1.8 | 0.6 | 7.0 | 4639 |
YFBKK450-2 | 1120 | 130 | 2976 | 95.6 | 0.87 | 1.8 | 0.6 | 7.0 | 4779 |
YFBKK500-2 | 1250 | 144 | 2981 | 95.8 | 0.87 | 1.8 | 0.6 | 7.0 | 5769 |
YFBKK500-2 | 1400 | 161 | 2981 | 95.9 | 0.87 | 1.8 | 0.6 | 7.0 | 5929 |
YFBKK500-2 | 1600 | 182 | 2980 | 96.0 | 0.88 | 1.8 | 0.6 | 7.0 | 6299 |
YFBKK500-2 | 1800 | 205 | 2980 | 96.0 | 0.88 | 1.8 | 0.6 | 7.0 | 6465 |
YFBKK560-2 | 2000 | 227 | 2981 | 96.2 | 0.88 | 1.8 | 0.6 | 7.0 | 8462 |
YFBKK560-2 | 2240 | 254 | 2982 | 96.3 | 0.88 | 1.8 | 0.6 | 7.0 | 8715 |
YFBKK560-2 | 2500 | 284 | 2983 | 96.4 | 0.88 | 1.8 | 0.6 | 7.0 | 8965 |
YFBKK560-2 | 2800 | 318 | 2983 | 96.4 | 0.88 | 1.8 | 0.6 | 7.0 | 9433 |
YFBKK630-2 | 3150 | 357 | 2984 | 96.5 | 0.88 | 1.8 | 0.6 | 7.0 | 10540 |
YFBKK630-2 | 3550 | 397 | 2984 | 96.6 | 0.89 | 1.8 | 0.6 | 7.0 | 10780 |
YFBKK630-2 | 4000 | 448 | 2984 | 96.6 | 0.89 | 1.8 | 0.6 | 7.0 | 11401 |
YFBKK630-2 | 4500 | 503 | 2984 | 96.7 | 0.89 | 1.8 | 0.6 | 7.0 | 11880 |
YFBKK315-4 | 200 | 24 | 1482 | 93.4 | 0.85 | 1.8 | 0.7 | 6.5 | 2395 |
YFBKK315-4 | 220 | 27 | 1483 | 93.5 | 0.85 | 1.8 | 0.7 | 6.5 | 2450 |
YFBKK315-4 | 250 | 30 | 1481 | 93.6 | 0.85 | 1.8 | 0.7 | 6.5 | 2505 |
YFBKK315-4 | 280 | 34 | 1482 | 93.7 | 0.85 | 1.8 | 0.7 | 6.5 | 2559 |
YFBKK355-4 | 315 | 38 | 1484 | 93.8 | 0.86 | 1.8 | 0.7 | 6.5 | 2625 |
YFBKK355-4 | 355 | 42 | 1482 | 94.0 | 0.86 | 1.8 | 0.7 | 6.5 | 2709 |
YFBKK355-4 | 400 | 48 | 1484 | 94.2 | 0.86 | 1.8 | 0.7 | 6.5 | 2793 |
YFBKK355-4 | 450 | 53 | 1483 | 94.4 | 0.86 | 1.8 | 0.7 | 6.5 | 2815 |
YFBKK400-4 | 500 | 59 | 1485 | 94.5 | 0.86 | 1.8 | 0.7 | 6.5 | 3435 |
YFBKK400-4 | 560 | 66 | 1485 | 94.7 | 0.86 | 1.8 | 0.7 | 6.5 | 3530 |
YFBKK400-4 | 630 | 74 | 1485 | 94.9 | 0.86 | 1.8 | 0.7 | 6.5 | 3640 |
YFBKK400-4 | 710 | 84 | 1485 | 95.0 | 0.86 | 1.8 | 0.7 | 6.5 | 3757 |
YFBKK450-4 | 800 | 93 | 1488 | 95.3 | 0.87 | 1.8 | 0.7 | 6.5 | 4540 |
YFBKK450-4 | 900 | 104 | 1487 | 95.4 | 0.87 | 1.8 | 0.7 | 6.5 | 4800 |
YFBKK450-4 | 1000 | 116 | 1488 | 95.5 | 0.87 | 1.8 | 0.7 | 6.5 | 5061 |
YFBKK450-4 | 1120 | 130 | 1487 | 95.5 | 0.87 | 1.8 | 0.7 | 6.5 | 5180 |
Technical data of YFBKK new series high voltage dust three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque/rated torque | Blocked rotor torque/rated torque | Lock current/rated current | Weight kg |
YFBKK500-4 | 1250 | 143 | 1487 | 95.7 | 0.88 | 1.8 | 0.6 | 6.5 | 6178 |
YFBKK500-4 | 1400 | 160 | 1487 | 95.8 | 0.88 | 1.8 | 0.6 | 6.5 | 6353 |
YFBKK500-4 | 1600 | 182 | 1486 | 95.9 | 0.88 | 1.8 | 0.6 | 6.5 | 6710 |
YFBKK500-4 | 1800 | 205 | 1487 | 96.0 | 0.88 | 1.8 | 0.6 | 6.5 | 6895 |
YFBKK560-4 | 2000 | 228 | 1492 | 96.1 | 0.88 | 1.8 | 0.6 | 6.5 | 7844 |
YFBKK560-4 | 2240 | 255 | 1492 | 96.2 | 0.88 | 1.8 | 0.6 | 6.5 | 8280 |
YFBKK560-4 | 2500 | 284 | 1491 | 96.2 | 0.88 | 1.8 | 0.6 | 6.5 | 8530 |
YFBKK560-4 | 2800 | 318 | 1491 | 96.3 | 0.88 | 1.8 | 0.6 | 6.5 | 8983 |
YFBKK630-4 | 3150 | 357 | 1491 | 96.4 | 0.88 | 1.8 | 0.6 | 6.5 | 11085 |
YFBKK630-4 | 3550 | 398 | 1491 | 96.4 | 0.89 | 1.8 | 0.6 | 6.5 | 11595 |
YFBKK630-4 | 4000 | 448 | 1491 | 96.5 | 0.89 | 1.8 | 0.6 | 6.5 | 12178 |
YFBKK630-4 | 4500 | 504 | 1491 | 96.5 | 0.89 | 1.8 | 0.6 | 6.5 | 12745 |
YFBKK315-6 | 160 | 20 | 986 | 93.0 | 0.82 | 1.8 | 0.8 | 5.5 | 2481 |
YFBKK315-6 | 185 | 23 | 986 | 93.0 | 0.82 | 1.8 | 0.8 | 5.5 | 2547 |
YFBKK315-6 | 200 | 25 | 985 | 93.2 | 0.82 | 1.8 | 0.8 | 5.5 | 2547 |
YFBKK315-6 | 220 | 28 | 986 | 93.3 | 0.82 | 1.8 | 0.8 | 5.5 | 2604 |
YFBKK355-6 | 250 | 31 | 986 | 93.5 | 0.82 | 1.8 | 0.8 | 5.5 | 2696 |
YFBKK355-6 | 280 | 35 | 987 | 93.8 | 0.82 | 1.8 | 0.8 | 5.5 | 2786 |
YFBKK355-6 | 315 | 39 | 987 | 94.0 | 0.83 | 1.8 | 0.8 | 5.5 | 2952 |
YFBKK355-6 | 355 | 44 | 985 | 94.2 | 0.83 | 1.8 | 0.8 | 5.5 | 2952 |
YFBKK400-6 | 400 | 49 | 989 | 94.3 | 0.83 | 1.8 | 0.8 | 5.5 | 3427 |
YFBKK400-6 | 450 | 55 | 988 | 94.5 | 0.83 | 1.8 | 0.8 | 5.5 | 3630 |
YFBKK400-6 | 500 | 61 | 988 | 94.8 | 0.83 | 1.8 | 0.8 | 5.5 | 3740 |
YFBKK400-6 | 560 | 68 | 989 | 94.9 | 0.84 | 1.8 | 0.8 | 5.5 | 3842 |
YFBKK450-6 | 630 | 76 | 989 | 95.0 | 0.84 | 1.8 | 0.8 | 5.5 | 4686 |
YFBKK450-6 | 710 | 85 | 989 | 95.2 | 0.84 | 1.8 | 0.8 | 5.5 | 4971 |
YFBKK450-6 | 800 | 96 | 989 | 95.4 | 0.84 | 1.8 | 0.8 | 5.5 | 5103 |
YFBKK450-6 | 900 | 107 | 989 | 95.5 | 0.85 | 1.8 | 0.8 | 5.5 | 5245 |
YFBKK500-6 | 1000 | 119 | 991 | 95.5 | 0.85 | 1.8 | 0.8 | 5.5 | 5959 |
YFBKK500-6 | 1120 | 133 | 991 | 95.6 | 0.85 | 1.8 | 0.8 | 5.5 | 6291 |
YFBKK500-6 | 1250 | 146 | 990 | 95.8 | 0.86 | 1.8 | 0.8 | 5.5 | 6623 |
YFBKK500-6 | 1400 | 163 | 991 | 95.9 | 0.86 | 1.8 | 0.8 | 5.5 | 6955 |
YFBKK560-6 | 1600 | 186 | 993 | 96.0 | 0.86 | 1.8 | 0.7 | 5.5 | 7749 |
YFBKK560-6 | 1800 | 210 | 993 | 96.0 | 0.86 | 1.8 | 0.7 | 5.5 | 8243 |
YFBKK560-6 | 2000 | 233 | 993 | 96.2 | 0.86 | 1.8 | 0.7 | 5.5 | 8669 |
YFBKK560-6 | 2240 | 261 | 993 | 96.2 | 0.86 | 1.8 | 0.7 | 5.5 | 9103 |
YFBKK630-6 | 2500 | 287 | 993 | 96.3 | 0.87 | 1.8 | 0.7 | 5.5 | 10591 |
Technical data of YFBKK new series high voltage dust three-phase asynchronous motor (6kV)
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque/rated torque | Blocked rotor torque/rated torque | Lock current/rated current | Weight kg |
YFBKK630-6 | 2800 | 322 | 992 | 96.3 | 0.87 | 1.8 | 0.7 | 5.5 | 11089 |
YFBKK630-6 | 3150 | 361 | 992 | 96.4 | 0.87 | 1.8 | 0.7 | 5.5 | 11610 |
YFBKK630-6 | 3550 | 407 | 993 | 96.4 | 0.87 | 1.8 | 0.7 | 5.5 | 12123 |
YFBKK355-8 | 200 | 26 | 739 | 93.2 | 0.78 | 1.8 | 0.8 | 5.5 | 2736 |
YFBKK355-8 | 220 | 29 | 739 | 93.4 | 0.78 | 1.8 | 0.8 | 5.5 | 2816 |
YFBKK355-8 | 250 | 33 | 740 | 93.5 | 0.79 | 1.8 | 0.8 | 5.5 | 2886 |
YFBKK355-8 | 280 | 36 | 739 | 93.7 | 0.79 | 1.8 | 0.8 | 5.5 | 2986 |
YFBKK400-8 | 315 | 41 | 739 | 93.9 | 0.79 | 1.8 | 0.8 | 5.5 | 3427 |
YFBKK400-8 | 355 | 46 | 739 | 94.0 | 0.79 | 1.8 | 0.8 | 5.5 | 3527 |
YFBKK400-8 | 400 | 51 | 739 | 94.2 | 0.80 | 1.8 | 0.8 | 5.5 | 3728 |
YFBKK400-8 | 450 | 57 | 739 | 94.3 | 0.80 | 1.8 | 0.8 | 5.5 | 3829 |
YFBKK450-8 | 500 | 64 | 741 | 94.7 | 0.80 | 1.8 | 0.8 | 5.5 | 4864 |
YFBKK450-8 | 560 | 71 | 741 | 94.9 | 0.80 | 1.8 | 0.8 | 5.5 | 4956 |
YFBKK450-8 | 630 | 78 | 741 | 95.0 | 0.82 | 1.8 | 0.8 | 5.5 | 5088 |
YFBKK450-8 | 710 | 88 | 741 | 95.0 | 0.82 | 1.8 | 0.8 | 5.5 | 5230 |
YFBKK500-8 | 800 | 99 | 743 | 95.2 | 0.82 | 1.8 | 0.8 | 5.5 | 6060 |
YFBKK500-8 | 900 | 108 | 743 | 95.3 | 0.84 | 1.8 | 0.8 | 5.5 | 6229 |
YFBKK500-8 | 1000 | 120 | 742 | 95.4 | 0.84 | 1.8 | 0.8 | 5.5 | 6567 |
YFBKK500-8 | 1120 | 134 | 742 | 95.5 | 0.84 | 1.8 | 0.8 | 5.5 | 6900 |
YFBKK560-8 | 1250 | 150 | 743 | 95.6 | 0.84 | 1.8 | 0.7 | 5.5 | 7768 |
YFBKK560-8 | 1400 | 168 | 743 | 95.7 | 0.84 | 1.8 | 0.7 | 5.5 | 8197 |
YFBKK560-8 | 1600 | 191 | 743 | 95.8 | 0.84 | 1.8 | 0.7 | 5.5 | 8608 |
YFBKK560-8 | 1800 | 213 | 743 | 95.8 | 0.85 | 1.8 | 0.7 | 5.5 | 9016 |
YFBKK630-8 | 2000 | 236 | 743 | 95.9 | 0.85 | 1.8 | 0.7 | 5.5 | 10273 |
YFBKK630-8 | 2240 | 264 | 743 | 95.9 | 0.85 | 1.8 | 0.7 | 5.5 | 10786 |
YFBKK630-8 | 2500 | 295 | 743 | 96.0 | 0.85 | 1.8 | 0.7 | 5.5 | 11533 |
YFBKK630-8 | 2800 | 330 | 743 | 96.0 | 0.85 | 1.8 | 0.7 | 5.5 | 12063 |
YFBKK400-10 | 250 | 35 | 591 | 92.9 | 0.75 | 1.8 | 0.8 | 5.5 | 3406 |
YFBKK400-10 | 280 | 39 | 591 | 93.1 | 0.75 | 1.8 | 0.8 | 5.5 | 3505 |
YFBKK400-10 | 315 | 43 | 591 | 93.4 | 0.76 | 1.8 | 0.8 | 5.5 | 3605 |
YFBKK400-10 | 355 | 48 | 590 | 93.6 | 0.76 | 1.8 | 0.8 | 5.5 | 3803 |
YFBKK450-10 | 400 | 54 | 592 | 93.8 | 0.76 | 1.8 | 0.8 | 5.5 | 4663 |
YFBKK450-10 | 450 | 61 | 592 | 93.9 | 0.76 | 1.8 | 0.8 | 5.5 | 4910 |
YFBKK450-10 | 500 | 65 | 592 | 94.2 | 0.78 | 1.8 | 0.8 | 5.5 | 5048 |
YFBKK450-10 | 560 | 73 | 592 | 94.3 | 0.78 | 1.8 | 0.8 | 5.5 | 5186 |
YFBKK500-10 | 630 | 82 | 594 | 94.4 | 0.78 | 1.8 | 0.8 | 5.5 | 5865 |
YFBKK500-10 | 710 | 93 | 593 | 94.5 | 0.78 | 1.8 | 0.8 | 5.5 | 6190 |
YFBKK500-10 | 800 | 102 | 593 | 94.8 | 0.80 | 1.8 | 0.8 | 5.5 | 6524 |
YFBKK500-10 | 900 | 114 | 593 | 94.9 | 0.80 | 1.8 | 0.8 | 5.5 | 6864 |
Model | Rated power kW | Stator current A | Rated speed r/min | Efficiency % | Power factor cosΦ | Maximum torque/rated torque | Blocked rotor torque/rated torque | Lock current/rated current | Weight kg |
YFBKK560-10 | 1000 | 127 | 594 | 95.0 | 0.80 | 1.8 | 0.7 | 5.5 | 7421 |
YFBKK560-10 | 1120 | 142 | 593 | 95.1 | 0.80 | 1.8 | 0.7 | 5.5 | 7807 |
YFBKK560-10 | 1250 | 158 | 594 | 95.4 | 0.80 | 1.8 | 0.7 | 5.5 | 8187 |
YFBKK560-10 | 1400 | 176 | 594 | 95.5 | 0.80 | 1.8 | 0.7 | 5.5 | 8598 |
YFBKK630-10 | 1600 | 202 | 594 | 95.5 | 0.80 | 1.8 | 0.7 | 5.5 | 9755 |
YFBKK630-10 | 1800 | 224 | 594 | 95.6 | 0.81 | 1.8 | 0.7 | 5.5 | 10213 |
YFBKK630-10 | 2000 | 249 | 594 | 95.6 | 0.81 | 1.8 | 0.7 | 5.5 | 11102 |
YFBKK630-10 | 2240 | 278 | 594 | 95.7 | 0.81 | 1.8 | 0.7 | 5.5 | 11511 |
YFBKK450-12 | 315 | 45 | 494 | 93.4 | 0.72 | 1.8 | 0.8 | 5.5 | 4656 |
YFBKK450-12 | 355 | 49 | 494 | 93.6 | 0.74 | 1.8 | 0.8 | 5.5 | 4774 |
YFBKK450-12 | 400 | 55 | 494 | 93.8 | 0.74 | 1.8 | 0.8 | 5.5 | 5021 |
YFBKK450-12 | 450 | 62 | 494 | 93.9 | 0.74 | 1.8 | 0.8 | 5.5 | 5159 |
YFBKK500-12 | 500 | 69 | 494 | 94.2 | 0.74 | 1.8 | 0.8 | 5.5 | 5837 |
YFBKK500-12 | 560 | 75 | 494 | 94.3 | 0.76 | 1.8 | 0.8 | 5.5 | 6181 |
YFBKK500-12 | 630 | 84 | 494 | 94.4 | 0.76 | 1.8 | 0.8 | 5.5 | 6490 |
YFBKK500-12 | 710 | 95 | 494 | 94.5 | 0.76 | 1.8 | 0.8 | 5.5 | 6824 |
YFBKK560-12 | 800 | 107 | 494 | 94.8 | 0.76 | 1.8 | 0.7 | 5.5 | 7296 |
YFBKK560-12 | 900 | 120 | 494 | 94.9 | 0.76 | 1.8 | 0.7 | 5.5 | 7668 |
YFBKK560-12 | 1000 | 133 | 494 | 95.0 | 0.76 | 1.8 | 0.7 | 5.5 | 8073 |
YFBKK560-12 | 1120 | 149 | 494 | 95.0 | 0.76 | 1.8 | 0.7 | 5.5 | 8465 |
YFBKK630-12 | 1250 | 162 | 495 | 95.1 | 0.78 | 1.8 | 0.7 | 5.5 | 9561 |
YFBKK630-12 | 1400 | 182 | 495 | 95.1 | 0.78 | 1.8 | 0.7 | 5.5 | 10068 |
YFBKK630-12 | 1600 | 207 | 495 | 95.2 | 0.78 | 1.8 | 0.7 | 5.5 | 10514 |
YFBKK630-12 | 1800 | 233 | 495 | 95.2 | 0.78 | 1.8 | 0.7 | 5.5 | 11014 |
As one of China professional large electric motor manufacturers, we focus on providing high-quality dust ignition proof motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M2 which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about dust ignition proof motor, explosion proof ac motor, cage motor,dust proof motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
