AC Explosion Proof Inverter Motor YBBP

Home » Products » Explosion Proof Motor » Explosion Proof Inverter Motor » AC Explosion Proof Inverter Motor YBBP

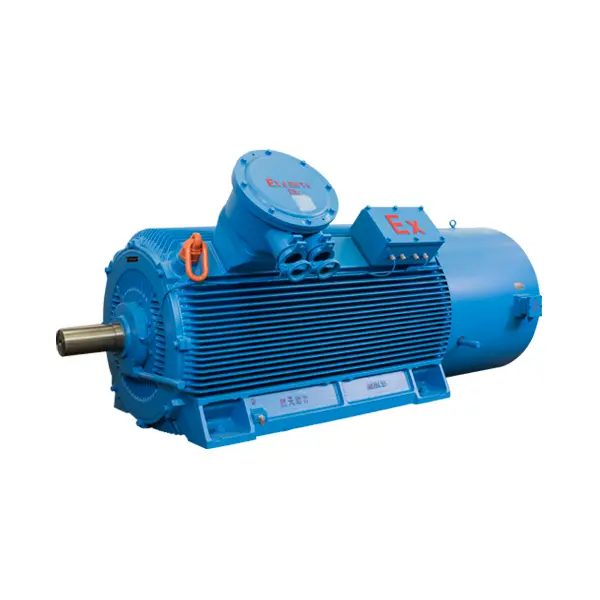

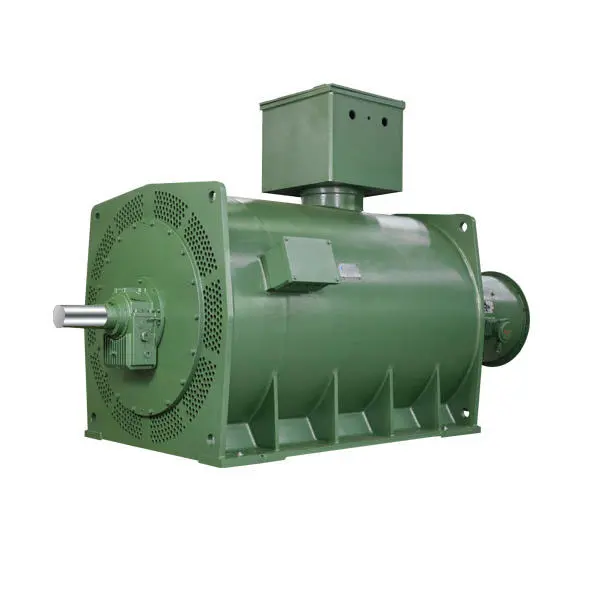

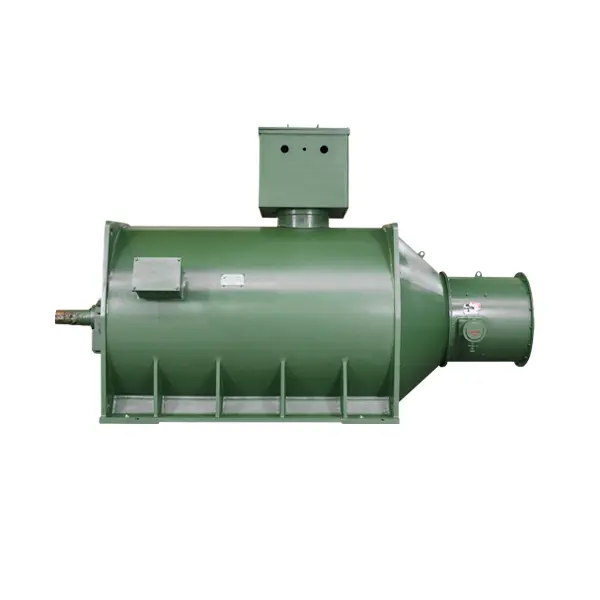

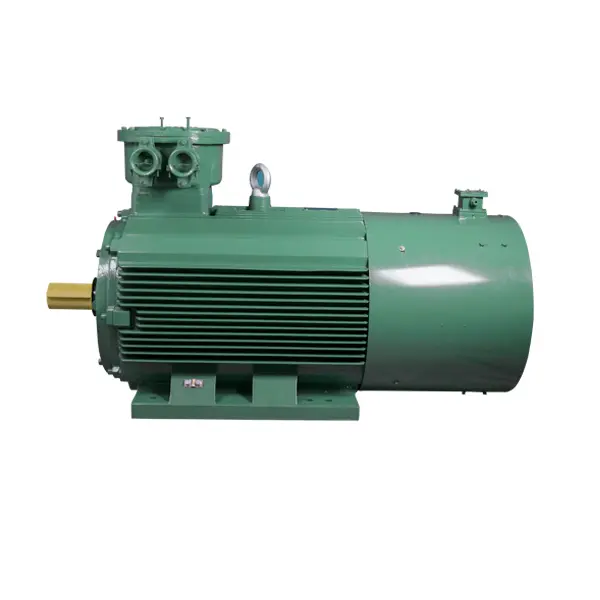

AC Explosion Proof Inverter Motor YBBP

Inverter ac motor is also called explosion proof ac motor or inverter motor.

● Frequency: 50/60 Hz;
● Frame size: H355mm-H630mm;
● Power range: 185kW~3150kW;
● Number of poles: 2P~12P;
● Rated voltage: 6000V, 10000V;
● Insulation class: Class F;
● Protection class: IP55;
● Insulation method: IMB3;
● Cooling method: IC416, IC516;
● Explosion-proof class: Exd I Mb, ExdⅡBT4 Gb, ExdⅡCT4 Gb;

● 20 Years’ Experience;
● 65,000 ㎡ Factory;
● ISO 9001:2016, ISO 14001:2015, ISO 45001:2020;
● OEM/ODM Accept.

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional inverter ac motor manufacturers and suppliers in China, to buy or wholesale explosion proof ac motor from our factory. For quotation or if you have any questions, contact us now for customized inverter motor and price.

Product features

● compact structure;

● light weight;

● high efficiency;

● energy saving;

● low noise;

● low vibration;

● high reliability;

● long service life;

● easy installation and maintenance.

Product application

This series of products are mainly suitable for general mechanical equipment such as fans, pumps, compressors, crushers, chip cutting machines, transportation machinery or other similar mechanical equipment in explosive gas industries such as petroleum, chemical, coal, power stations, metallurgy, transportation, textile, medicine, and grain processing.

Technical Parameters

YBBP series motor model spectrum (6kV)

Engine seat number	Synchronous speed r/min
	3000	1500	1000	750
	Power kW
1 2 3 4 355 5 6 7 8 9 10 11	160	160	—	—
	185	185	—	—
	200	200	160	—
	220	220	185	—
	250	250	200	160
	280	280	220	185
	315	315	250	200
	355	355	280	220
	400	400	315	250
	450	450	355	280
	500	500(560)	400	315
1 400 2 3	560	560	450	355
	630	630	500	400
	710	710	560	450
1 450 2 3	800	800	630	500
	900	900	710	560
	1000	1000	800	630
1 500 2 3 4	—	1120	900	—
	1120	1250	1000	710
	1250	1400	1120	800
	1400	1600	1250	900
1 560 2 3 4	—	—	—	1000
	1600	1800	1400	1120
	1800	2000	1600	1250
	2000	2240	1800	1400

YBBP series motor model spectrum (10kV)

Engine seat number	Synchronous speed r/min
	3000	1500	1000	750
	Power kW
1 2 3 4 400 5 6 7 8 9 10 11	160	160	—	—
	185	185	—	—
	200	200	160	—
	220	220	185	—
	250	250	200	160
	280	280	220	185
	315	315	250	200
	355	355	280	220
	400	400	315	250
	450（500）	450	355	280
	—	500(560)	400（450）	315
1 450 2 3 4	500	560	450	355
	560	630	500	400
	630	710	560	450
	710（800）	800（900）	630(710)	500
1 500 2 3 4	800	900	710	560
	900	1000	800	630
	1000	1120	900	710
	1120	1250	1000（1120）	800
1 560 2 3 4	1250	1400	1120	900
	1400	1600	1250	1000
	1600	1800	1400	1120
	1800	2000	1600	1250

YBBP series motor efficiency and power factor standards (6kV)

Power kW	Synchronous speed r/min
	3000	1500	1000	750	3000	1500	1000	750
	Efficiency η %				Power factor cosφ
185	93.0	93.4	93.2	93.1	0.85	0.85	0.81	0.77
200	93.2	93.6	93.4	93.3	0.85	0.85	0.81	0.78
220	93.3	93.7	93.5	93.4	0.85	0.85	0.83	0.78
250	93.4	93.8	93.7	93.5	0.85	0.85	0.83	0.79
280	93.6	93.9	93.9	93.7	0.87	0.85	0.83	0.79
315	93.9	94.1	94.2	93.9	0.87	0.86	0.83	0.79
355	94.1	94.3	94.4	94.0	0.87	0.86	0.84	0.79
400	94.5	94.4	94.4	94.2	0.87	0.86	0.84	0.80
450	94.7	94.6	94.7	94.3	0.87	0.86	0.84	0.80
500	95.0	94.8	95.0	94.8	0.88	0.87	0.84	0.81
560	95.1	95.0	95.1	94.9	0.88	0.87	0.84	0.81
630	95.2	95.2	95.2	95.0	0.88	0.87	0.84	0.82
710	95.3	95.4	95.4	95.0	0.88	0.87	0.84	0.82
800	95.6	95.5	95.5	95.2	0.89	0.87	0.84	0.82
900	95.7	95.6	95.6	95.3	0.89	0.87	0.85	0.82
1000	95.8	95.7	95.7	95.4	0.89	0.87	0.85	0.83
1120	95.9	95.8	95.8	95.5	0.89	0.87	0.85	0.83
1250	96.1	96.0	96.0	95.6	0.90	0.88	0.85	0.83
1400	96.2	96.0	96.1	95.7	0.90	0.88	0.87	0.83
1600	96.3	96.1	96.1	/	0.90	0.88	0.87	0.84
1800	96.4	96.1	96.2	/	0.90	0.88	0.87	0.84
2000	96.4	96.2	/	/	0.91	0.89	0.87	0.85
2240	/	96.3

YBBP series motor efficiency and power factor standards (10kV)

Power kW	Synchronous speed r/min
	3000	1500	1000	750	3000	1500	1000	750
	Efficiency η %				Power factor cosφ
185	92.6	92.5	92.2	92.0	0.84	0.84	0.82	0.78
200	92.8	92.7	92.4	92.3	0.85	0.84	0.82	0.78
220	93.3	93.3	92.9	92.6	0.85	0.84	0.82	0.78
250	93.4	93.4	93.0	92.8	0.85	0.84	0.82	0.78
280	93.6	93.5	93.2	93.0	0.85	0.84	0.83	0.78
315	93.9	93.8	93.5	93.5	0.85	0.84	0.83	0.79
355	94.3	93.9	93.7	93.7	0.86	0.85	0.83	0.79
400	94.5	94.0	93.9	93.8	0.86	0.85	0.83	0.80
450	94.7	94.4	94.0	93.9	0.86	0.85	0.83	0.80
500	94.9	94.5	94.5	94.4	0.86	0.85	0.83	0.80
560	95.0	94.8	94.6	94.5	0.87	0.86	0.83	0.81
630	95.0	95.0	94.9	94.9	0.87	0.86	0.83	0.81
710	95.1	95.2	95.0	95.0	0.87	0.86	0.83	0.81
800	95.3	95.3	95.2	95.2	0.88	0.87	0.84	0.81
900	95.4	95.6	95.4	95.3	0.88	0.87	0.84	0.81
1000	95.5	95.7	95.5	95.5	0.89	0.88	0.84	0.81
1120	95.6	95.8	95.7	95.6	0.89	0.88	0.84	0.81
1250	95.9	96.0	95.9	95.8	0.89	0.88	0.85	0.81
1400	96.0	96.1	96.1	/	0.89	0.88	0.85	/
1600	96.0	96.2	96.2	/	0.91	0.90	0.85	/
1800	96.1	96.3	/	/	0.91	0.90	/	/
2000	/	96.5	/	/	/	0.90	/	/

Production environment

Inverter ac motor Manufacturer

As one of China professional large electric motor manufacturers, we focus on providing high-quality inverter ac motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M² which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.

If you have any questions about inverter ac motor, explosion proof ac motor, inverter motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
