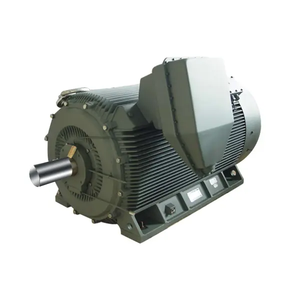

Biz uch fazali inverter motor ishlab chiqaruvchilari va yetkazib beruvchilarimiz. sotib olish yoki ulgurji sotish uchun Xitoyda professional asenkron invertor motorlarini zavodimizdan Kotirovka uchun yoki sizda biron bir savol bo'lsa, moslashtirilgan yuqori kuchlanishli vosita va narx uchun hozir biz bilan bog'laning.
● yuqori quvvat indeksi;
● past shovqin va tebranish;
● yuqori ishonchlilik;
● qulay foydalanish;
● o'rnatish va texnik xizmat ko'rsatish.
Ushbu seriyali mahsulotlar asosan neft, kimyo sanoati, ko'mir, elektr stantsiyalari, metallurgiya, transport, to'qimachilik, tibbiyot va donni qayta ishlash kabi sohalarda fanatlar, suv nasoslari, kompressorlar, maydalagichlar, chiplarni kesish mashinalari, transport mashinalari yoki boshqa shunga o'xshash mexanik uskunalar kabi umumiy mexanik uskunalar uchun javob beradi.
1-jadval YVP yangi seriyali yuqori kuchlanishli o'zgaruvchan chastotali uch fazali asenkron motorning texnik ma'lumotlari (6kV)
Model |
Nominal quvvat kVt |
Stator oqimi A |
Nominal tezlik r/min |
Samaradorlik % |
Quvvat omili cosΦ |
Maksimal moment Nominal moment |
Bloklangan rotor momenti Nominal moment |
Bloklangan rotor oqimi Nominal oqim |
Og'irligi kg |
YVP315-2 |
200 |
25 |
2971 |
92.0 |
0.85 |
1.8 |
0.6 |
7.0 |
2345 |
YVP315-2 |
220 |
27 |
2971 |
92.0 |
0.86 |
1.8 |
0.6 |
7.0 |
2370 |
YVP315-2 |
250 |
30 |
2968 |
92.2 |
0.86 |
1.8 |
0.6 |
7.0 |
2400 |
YVP315-2 |
280 |
34 |
2969 |
92.3 |
0.86 |
1.8 |
0.6 |
7.0 |
2450 |
YVP315-2 |
315 |
38 |
2975 |
92.7 |
0.86 |
1.8 |
0.6 |
7.0 |
2500 |
YVP315-2 |
355 |
43 |
2976 |
93.0 |
0.86 |
1.8 |
0.6 |
7.0 |
2570 |
YVP355-2 |
400 |
48 |
2974 |
93.4 |
0.86 |
1.8 |
0.6 |
7.0 |
2780 |
YVP355-2 |
450 |
54 |
2973 |
93.7 |
0.86 |
1.8 |
0.6 |
7.0 |
2850 |
YVP355-2 |
500 |
59 |
2977 |
94.0 |
0.87 |
1.8 |
0.6 |
7.0 |
2950 |
1-jadval (davomi) YVP yangi seriyali yuqori kuchlanishli o'zgaruvchan chastotali uch fazali asenkron motorning texnik ma'lumotlari (6kV)
Model |
Nominal quvvat kVt |
Stator oqimi A |
Nominal tezlik r/min |
Samaradorlik % |
Quvvat omili cosΦ |
Maksimal moment Nominal moment |
Bloklangan rotor momenti Nominal moment |
Bloklangan rotor oqimi Nominal oqim |
Og'irligi kg |
YVP355-2 |
560 |
66 |
2976 |
94.1 |
0.87 |
1.8 |
0.6 |
7.0 |
3030 |
YVP400-2 |
630 |
74 |
2976 |
94.3 |
0.87 |
1.8 |
0.6 |
7.0 |
3630 |
YVP400-2 |
710 |
83 |
2976 |
94.4 |
0.87 |
1.8 |
0.6 |
7.0 |
3730 |
YVP400-2 |
800 |
93 |
2975 |
94.7 |
0.87 |
1.8 |
0.6 |
7.0 |
3836 |
YVP400-2 |
900 |
105 |
2976 |
94.8 |
0.87 |
1.8 |
0.6 |
7.0 |
3920 |
YVP450-2 |
1000 |
115 |
2977 |
94.9 |
0.88 |
1.8 |
0.6 |
7.0 |
4200 |
YVP450-2 |
1120 |
129 |
2976 |
95.0 |
0.88 |
1.8 |
0.6 |
7.0 |
4340 |
YVP450-2 |
1250 |
144 |
2981 |
95.2 |
0.88 |
1.8 |
0.6 |
7.0 |
4500 |
YVP450-2 |
1400 |
161 |
2981 |
95.3 |
0.88 |
1.8 |
0.6 |
7.0 |
4650 |
YVP500-2 |
1600 |
183 |
2980 |
95.4 |
0.88 |
1.8 |
0.6 |
7.0 |
5825 |
YVP500-2 |
1800 |
206 |
2980 |
95.5 |
0.88 |
1.8 |
0.6 |
7.0 |
6080 |
YVP500-2 |
2000 |
229 |
2981 |
95.7 |
0.88 |
1.8 |
0.6 |
7.0 |
6350 |
YVP500-2 |
2240 |
256 |
2982 |
95.8 |
0.88 |
1.8 |
0.6 |
7.0 |
6575 |
YVP560-2 |
2500 |
282 |
2983 |
95.9 |
0.89 |
1.8 |
0.6 |
7.0 |
8600 |
YVP560-2 |
2800 |
315 |
2983 |
96.0 |
0.89 |
1.8 |
0.6 |
7.0 |
8900 |
YVP560-2 |
3150 |
354 |
2984 |
96.1 |
0.89 |
1.8 |
0.6 |
7.0 |
9210 |
YVP560-2 |
3550 |
399 |
2984 |
96.1 |
0.89 |
1.8 |
0.6 |
7.0 |
9710 |
YVP630-2 |
4000 |
450 |
2984 |
96.2 |
0.89 |
1.8 |
0.6 |
7.0 |
11250 |
YVP630-2 |
4500 |
505 |
2984 |
96.3 |
0.89 |
1.8 |
0.6 |
7.0 |
11560 |
YVP630-2 |
5000 |
561 |
2984 |
96.3 |
0.89 |
1.8 |
0.6 |
7.0 |
11910 |
YVP315-4 |
200 |
25 |
1482 |
92.3 |
0.85 |
1.8 |
0.8 |
6.5 |
2000 |
YVP315-4 |
220 |
27 |
1483 |
92.5 |
0.85 |
1.8 |
0.8 |
6.5 |
2090 |
YVP315-4 |
250 |
31 |
1481 |
92.6 |
0.85 |
1.8 |
0.8 |
6.5 |
2250 |
YVP315-4 |
280 |
34 |
1482 |
92.7 |
0.86 |
1.8 |
0.8 |
6.5 |
2340 |
YVP315-4 |
315 |
38 |
1484 |
92.9 |
0.86 |
1.8 |
0.8 |
6.5 |
2425 |
YVP315-4 |
355 |
43 |
1482 |
93.1 |
0.86 |
1.8 |
0.8 |
6.5 |
2500 |
YVP355-4 |
400 |
48 |
1484 |
93.3 |
0.86 |
1.8 |
0.8 |
6.5 |
2630 |
YVP355-4 |
450 |
54 |
1483 |
93.5 |
0.86 |
1.8 |
0.8 |
6.5 |
2720 |
YVP355-4 |
500 |
59 |
1485 |
93.7 |
0.87 |
1.8 |
0.8 |
6.5 |
2810 |
YVP355-4 |
560 |
66 |
1485 |
93.9 |
0.87 |
1.8 |
0.8 |
6.5 |
2910 |
YVP400-4 |
630 |
74 |
1485 |
94.2 |
0.87 |
1.8 |
0.8 |
6.5 |
3455 |
YVP400-4 |
710 |
83 |
1485 |
94.4 |
0.87 |
1.8 |
0.8 |
6.5 |
3595 |
YVP400-4 |
800 |
94 |
1488 |
94.6 |
0.87 |
1.8 |
0.8 |
6.5 |
3720 |
YVP400-4 |
900 |
105 |
1487 |
94.7 |
0.87 |
1.8 |
0.8 |
6.5 |
3850 |
YVP450-4 |
1000 |
117 |
1488 |
94.8 |
0.87 |
1.8 |
0.8 |
6.5 |
4920 |
YVP450-4 |
1120 |
129 |
1487 |
94.9 |
0.88 |
1.8 |
0.8 |
6.5 |
5020 |
YVP450-4 |
1250 |
144 |
1487 |
95.1 |
0.88 |
1.8 |
0.8 |
6.5 |
5150 |
YVP450-4 |
1400 |
161 |
1487 |
95.2 |
0.88 |
1.8 |
0.8 |
6.5 |
5230 |
1-jadval (davomi) YVP yangi seriyali yuqori kuchlanishli o'zgaruvchan chastotali uch fazali asenkron motorning texnik ma'lumotlari (6kV)
Model |
Nominal quvvat kVt |
Stator oqimi A |
Nominal tezlik r/min |
Samaradorlik % |
Quvvat omili cosΦ |
Maksimal moment Nominal moment |
Bloklangan rotor momenti Nominal moment |
Bloklangan rotor oqimi Nominal oqim |
YVP500-4 |
1600 |
182 |
95.3 |
0.89 |
1.8 |
0.7 |
6.5 |
5800 |
YVP500-4 |
1800 |
204 |
95.4 |
0.89 |
1.8 |
0.7 |
6.5 |
6020 |
YVP500-4 |
2000 |
226 |
95.6 |
0.89 |
1.8 |
0.7 |
6.5 |
6280 |
YVP500-4 |
2240 |
253 |
95.7 |
0.89 |
1.8 |
0.7 |
6.5 |
6610 |
YVP560-4 |
2500 |
282 |
95.8 |
0.89 |
1.8 |
0.6 |
6.5 |
7730 |
YVP560-4 |
2800 |
316 |
95.9 |
0.89 |
1.8 |
0.6 |
6.5 |
7950 |
YVP560-4 |
3150 |
354 |
96.1 |
0.89 |
1.8 |
0.6 |
6.5 |
8330 |
YVP560-4 |
3550 |
399 |
96.1 |
0.89 |
1.8 |
0.6 |
6.5 |
8630 |
YVP630-4 |
4000 |
450 |
96.2 |
0.89 |
1.8 |
0.6 |
6.5 |
10390 |
YVP630-4 |
4500 |
506 |
96.2 |
0.89 |
1.8 |
0.6 |
6.5 |
10895 |
YVP630-4 |
5000 |
561 |
96.4 |
0.89 |
1.8 |
0.6 |
6.5 |
11160 |
YVP315-6 |
160 |
20 |
92.0 |
0.83 |
1.8 |
0.8 |
6.0 |
2260 |
YVP315-6 |
185 |
23 |
92.0 |
0.83 |
1.8 |
0.8 |
6.0 |
2300 |
YVP315-6 |
200 |
25 |
92.1 |
0.83 |
1.8 |
0.8 |
6.0 |
2355 |
YVP315-6 |
220 |
28 |
92.2 |
0.83 |
1.8 |
0.8 |
6.0 |
2430 |
YVP315-6 |
250 |
31 |
92.5 |
0.83 |
1.8 |
0.8 |
6.0 |
2490 |
YVP315-6 |
280 |
35 |
92.7 |
0.83 |
1.8 |
0.8 |
6.0 |
2570 |
YVP355-6 |
315 |
39 |
93.0 |
0.83 |
1.8 |
0.8 |
6.0 |
2710 |
YVP355-6 |
355 |
44 |
93.2 |
0.83 |
1.8 |
0.8 |
6.0 |
2820 |
YVP355-6 |
400 |
50 |
93.3 |
0.83 |
1.8 |
0.8 |
6.0 |
2900 |
YVP355-6 |
450 |
55 |
93.6 |
0.84 |
1.8 |
0.8 |
6.0 |
3010 |
YVP400-6 |
500 |
60 |
93.9 |
0.85 |
1.8 |
0.8 |
6.0 |
3450 |
YVP400-6 |
560 |
67 |
94.1 |
0.85 |
1.8 |
0.8 |
6.0 |
3560 |
YVP400-6 |
630 |
76 |
94.2 |
0.85 |
1.8 |
0.8 |
6.0 |
3660 |
YVP400-6 |
710 |
85 |
94.4 |
0.85 |
1.8 |
0.8 |
6.0 |
3790 |
YVP450-6 |
800 |
96 |
94.6 |
0.85 |
1.8 |
0.8 |
6.0 |
4420 |
YVP450-6 |
900 |
108 |
94.7 |
0.85 |
1.8 |
0.8 |
6.0 |
4560 |
YVP450-6 |
1000 |
119 |
94.8 |
0.85 |
1.8 |
0.8 |
6.0 |
4710 |
YVP450-6 |
1120 |
132 |
94.9 |
0.86 |
1.8 |
0.8 |
6.0 |
4815 |
YVP500-6 |
1250 |
147 |
95.1 |
0.86 |
1.8 |
0.7 |
6.0 |
5760 |
YVP500-6 |
1400 |
165 |
95.2 |
0.86 |
1.8 |
0.7 |
6.0 |
5950 |
YVP500-6 |
1600 |
188 |
95.3 |
0.86 |
1.8 |
0.7 |
6.0 |
6200 |
YVP500-6 |
1800 |
211 |
95.4 |
0.86 |
1.8 |
0.7 |
6.0 |
6420 |
YVP560-6 |
2000 |
234 |
95.6 |
0.86 |
1.8 |
0.7 |
6.5 |
7878 |
YVP560-6 |
2240 |
262 |
95.7 |
0.86 |
1.8 |
0.7 |
6.5 |
8215 |
YVP560-6 |
2500 |
292 |
95.7 |
0.86 |
1.8 |
0.7 |
6.5 |
8545 |
YVP560-6 |
2800 |
327 |
95.8 |
0.86 |
1.8 |
0.7 |
6.5 |
8765 |
YVP630-6 |
3150 |
363 |
96.0 |
0.87 |
1.8 |
0.7 |
6.5 |
10390 |
1-jadval (davomi) YVP yangi seriyali yuqori kuchlanishli o'zgaruvchan chastotali uch fazali asenkron motorning texnik ma'lumotlari (6kV)
Model |
Nominal quvvat kVt |
Stator oqimi A |
Nominal tezlik r/min |
Samaradorlik % |
Quvvat omili cosΦ |
Maksimal moment Nominal moment |
Bloklangan rotor momenti Nominal moment |
Bloklangan rotor oqimi Nominal oqim |
YVP630-6 |
3550 |
409 |
96.0 |
0.87 |
1.8 |
0.7 |
6.5 |
10960 |
YVP630-6 |
4000 |
460 |
96.1 |
0.87 |
1.8 |
0.7 |
6.5 |
11500 |
YVP355-8 |
200 |
27 |
92.0 |
0.78 |
1.8 |
0.8 |
5.5 |
2500 |
YVP355-8 |
220 |
29 |
92.1 |
0.78 |
1.8 |
0.8 |
5.5 |
2585 |
YVP355-8 |
250 |
33 |
92.2 |
0.79 |
1.8 |
0.8 |
5.5 |
2660 |
YVP355-8 |
280 |
37 |
92.4 |
0.79 |
1.8 |
0.8 |
5.5 |
2810 |
YVP355-8 |
315 |
41 |
92.7 |
0.80 |
1.8 |
0.8 |
5.5 |
2900 |
YVP355-8 |
355 |
46 |
92.8 |
0.80 |
1.8 |
0.8 |
5.5 |
3000 |
YVP400-8 |
400 |
52 |
93.0 |
0.80 |
1.8 |
0.8 |
5.5 |
3610 |
YVP400-8 |
450 |
57 |
93.1 |
0.81 |
1.8 |
0.8 |
5.5 |
3705 |
YVP400-8 |
500 |
63 |
93.7 |
0.81 |
1.8 |
0.8 |
5.5 |
3785 |
YVP400-8 |
560 |
71 |
93.8 |
0.81 |
1.8 |
0.8 |
5.5 |
3880 |
YVP450-8 |
630 |
79 |
93.9 |
0.82 |
1.8 |
0.8 |
5.5 |
4510 |
YVP450-8 |
710 |
89 |
94.0 |
0.82 |
1.8 |
0.8 |
5.5 |
4610 |
YVP450-8 |
800 |
97 |
94.2 |
0.84 |
1.8 |
0.8 |
5.5 |
4830 |
YVP450-8 |
900 |
109 |
94.3 |
0.84 |
1.8 |
0.8 |
5.5 |
4930 |
YVP500-8 |
1000 |
121 |
94.4 |
0.84 |
1.8 |
0.8 |
5.5 |
5930 |
YVP500-8 |
1120 |
136 |
94.5 |
0.84 |
1.8 |
0.8 |
5.5 |
6150 |
YVP500-8 |
1250 |
151 |
94.7 |
0.84 |
1.8 |
0.8 |
5.5 |
6350 |
YVP500-8 |
1400 |
169 |
94.8 |
0.84 |
1.8 |
0.8 |
5.5 |
6600 |
YVP560-8 |
1600 |
193 |
94.9 |
0.84 |
1.8 |
0.7 |
6.0 |
7750 |
YVP560-8 |
1800 |
217 |
95.0 |
0.84 |
1.8 |
0.7 |
6.0 |
8130 |
YVP560-8 |
2000 |
241 |
95.2 |
0.84 |
1.8 |
0.7 |
6.0 |
8550 |
YVP560-8 |
2240 |
269 |
95.3 |
0.84 |
1.8 |
0.7 |
6.0 |
8610 |
YVP630-8 |
2500 |
297 |
95.4 |
0.85 |
1.8 |
0.7 |
6.0 |
10680 |
YVP630-8 |
2800 |
332 |
95.5 |
0.85 |
1.8 |
0.7 |
6.0 |
11100 |
YVP630-8 |
3150 |
373 |
95.6 |
0.85 |
1.8 |
0.7 |
6.0 |
11540 |
YVP400-10 |
250 |
35 |
91.5 |
0.76 |
1.8 |
0.8 |
5.5 |
3410 |
YVP400-10 |
280 |
38 |
91.7 |
0.78 |
1.8 |
0.8 |
5.5 |
3510 |
YVP400-10 |
315 |
42 |
91.9 |
0.79 |
1.8 |
0.8 |
5.5 |
3580 |
YVP400-10 |
355 |
47 |
92.1 |
0.79 |
1.8 |
0.8 |
5.5 |
3670 |
YVP400-10 |
400 |
52 |
92.6 |
0.80 |
1.8 |
0.8 |
5.5 |
3780 |
YVP400-10 |
450 |
58 |
92.7 |
0.80 |
1.8 |
0.8 |
5.5 |
3890 |
YVP450-10 |
500 |
65 |
93.0 |
0.80 |
1.8 |
0.8 |
5.5 |
4365 |
YVP450-10 |
560 |
72 |
93.1 |
0.80 |
1.8 |
0.8 |
5.5 |
4510 |
YVP450-10 |
630 |
81 |
93.2 |
0.80 |
1.8 |
0.8 |
5.5 |
4640 |
YVP450-10 |
710 |
89 |
93.4 |
0.82 |
1.8 |
0.8 |
5.5 |
4770 |
YVP500-10 |
800 |
100 |
93.7 |
0.82 |
1.8 |
0.8 |
5.5 |
5670 |
1-jadval (davomi) YVP seriyali yuqori kuchlanishli o'zgaruvchan chastotali uch fazali asenkron motorning texnik ma'lumotlari (6kV)
Model |
Nominal quvvat kVt |
Stator oqimi A |
Nominal tezlik r/min |
Samaradorlik % |
Quvvat omili cosΦ |
Maksimal moment Nominal moment |
Bloklangan rotor momenti Nominal moment |
Bloklangan rotor oqimi Nominal oqim |
Og'irligi kg |
YVP500-10 |
900 |
113 |
593 |
93.8 |
0.82 |
1.8 |
0.8 |
5.5 |
6005 |
YVP500-10 |
1000 |
125 |
594 |
93.9 |
0.82 |
1.8 |
0.8 |
5.5 |
6250 |
YVP500-10 |
1120 |
140 |
593 |
94.1 |
0.82 |
1.8 |
0.8 |
5.5 |
6450 |
YVP560-10 |
1250 |
155 |
594 |
94.4 |
0.82 |
1.8 |
0.7 |
6.0 |
7200 |
YVP560-10 |
1400 |
174 |
594 |
94.5 |
0.82 |
1.8 |
0.7 |
6.0 |
7335 |
YVP560-10 |
1600 |
198 |
594 |
94.6 |
0.82 |
1.8 |
0.7 |
6.0 |
7640 |
YVP560-10 |
1800 |
223 |
594 |
94.7 |
0.82 |
1.8 |
0.7 |
6.0 |
7835 |
YVP630-10 |
2000 |
247 |
594 |
94.9 |
0.82 |
1.8 |
0.7 |
6.0 |
10060 |
YVP630-10 |
2240 |
277 |
594 |
95.0 |
0.82 |
1.8 |
0.7 |
6.0 |
10320 |
YVP630-10 |
2500 |
308 |
594 |
95.1 |
0.82 |
1.8 |
0.7 |
6.0 |
10930 |
YVP450-12 |
400 |
55 |
494 |
92.6 |
0.75 |
1.8 |
0.7 |
6.0 |
4300 |
YVP450-12 |
450 |
62 |
494 |
92.7 |
0.75 |
1.8 |
0.7 |
6.0 |
4375 |
YVP450-12 |
500 |
65 |
494 |
93.1 |
0.79 |
1.8 |
0.7 |
6.0 |
4510 |
YVP450-12 |
560 |
73 |
494 |
93.2 |
0.79 |
1.8 |
0.7 |
6.0 |
4775 |
YVP500-12 |
630 |
82 |
494 |
93.3 |
0.79 |
1.8 |
0.7 |
6.0 |
5945 |
YVP500-12 |
710 |
93 |
494 |
93.4 |
0.79 |
1.8 |
0.7 |
6.0 |
6190 |
YVP500-12 |
800 |
104 |
494 |
93.7 |
0.79 |
1.8 |
0.7 |
6.0 |
5410 |
YVP500-12 |
900 |
117 |
494 |
93.8 |
0.79 |
1.8 |
0.7 |
6.0 |
6620 |
YVP560-12 |
1000 |
130 |
494 |
93.9 |
0.79 |
1.8 |
0.7 |
6.0 |
7370 |
YVP560-12 |
1120 |
145 |
494 |
94.0 |
0.79 |
1.8 |
0.7 |
6.0 |
7570 |
YVP560-12 |
1250 |
162 |
495 |
94.2 |
0.79 |
1.8 |
0.7 |
6.0 |
8155 |
YVP560-12 |
1400 |
181 |
495 |
94.3 |
0.79 |
1.8 |
0.7 |
6.0 |
8355 |
YVP630-12 |
1600 |
207 |
495 |
94.3 |
0.79 |
1.8 |
0.7 |
6.0 |
9960 |
YVP630-12 |
1800 |
232 |
495 |
94.4 |
0.79 |
1.8 |
0.7 |
6.0 |
10210 |
YVP630-12 |
2000 |
258 |
495 |
94.6 |
0.79 |
1.8 |
0.7 |
6.0 |
10980 |
YVP630-12 |
2240 |
288 |
495 |
94．7 |
0.79 |
1.8 |
0.7 |
6.0 |
11290 |
2-jadval YVP seriyali yuqori kuchlanishli o'zgaruvchan chastotali uch fazali asenkron motorning texnik ma'lumotlari (10kV)
Model |
Nominal quvvat kVt |
Stator oqimi A |
Nominal tezlik r/min |
Samaradorlik % |
Quvvat omili cosΦ |
Maksimal moment Nominal moment |
Bloklangan rotor momenti Nominal moment |
Bloklangan rotor oqimi Nominal oqim |
Og'irligi kg |
YVP355-2 |
250 |
18 |
2977 |
92.1 |
0.86 |
1.8 |
0.6 |
7.0 |
2495 |
YVP355-2 |
280 |
20 |
2975 |
92.3 |
0.86 |
1.8 |
0.6 |
7.0 |
2585 |
YVP355-2 |
315 |
23 |
2976 |
92.7 |
0.86 |
1.8 |
0.6 |
7.0 |
2690 |
YVP355-2 |
355 |
25 |
2975 |
93.1 |
0.87 |
1.8 |
0.6 |
7.0 |
2780 |
YVP355-2 |
400 |
28 |
2977 |
93.4 |
0.87 |
1.8 |
0.6 |
7.0 |
2860 |
YVP355-2 |
450 |
32 |
2976 |
93.6 |
0.87 |
1.8 |
0.6 |
7.0 |
2950 |
YVP400-2 |
500 |
35 |
2976 |
93.8 |
0.87 |
1.8 |
0.6 |
7.0 |
3450 |
YVP400-2 |
560 |
40 |
2977 |
93.9 |
0.87 |
1.8 |
0.6 |
7.0 |
3555 |
YVP400-2 |
630 |
44 |
2978 |
94.0 |
0.87 |
1.8 |
0.6 |
7.0 |
3670 |
YVP400-2 |
710 |
50 |
2979 |
94.1 |
0.88 |
1.8 |
0.6 |
7.0 |
3770 |
YVP450-2 |
800 |
56 |
2978 |
94.3 |
0.88 |
1.8 |
0.6 |
7.0 |
4200 |
YVP450-2 |
900 |
63 |
2977 |
94.4 |
0.88 |
1.8 |
0.6 |
7.0 |
4340 |
YVP450-2 |
1000 |
69 |
2983 |
94.5 |
0.88 |
1.8 |
0.6 |
7.0 |
4500 |
YVP450-2 |
1120 |
78 |
2983 |
94.7 |
0.88 |
1.8 |
0.6 |
7.0 |
4650 |
YVP500-2 |
1250 |
85 |
2982 |
94.9 |
0.89 |
1.8 |
0.6 |
7.0 |
5715 |
YVP500-2 |
1400 |
96 |
2983 |
95.1 |
0.89 |
1.8 |
0.6 |
7.0 |
5940 |
YVP500-2 |
1600 |
109 |
2983 |
95.2 |
0.89 |
1.8 |
0.6 |
7.0 |
6195 |
YVP500-2 |
1800 |
121 |
2982 |
95.3 |
0.90 |
1.8 |
0.6 |
7.0 |
6435 |
YVP560-2 |
2000 |
134 |
2983 |
95.5 |
0.90 |
1.8 |
0.6 |
7.0 |
8600 |
YVP560-2 |
2240 |
150 |
2983 |
95.7 |
0.90 |
1.8 |
0.6 |
7.0 |
8900 |
YVP560-2 |
2500 |
168 |
2984 |
95.7 |
0.90 |
1.8 |
0.6 |
7.0 |
9210 |
YVP560-2 |
2800 |
188 |
2984 |
95.7 |
0.90 |
1.8 |
0.6 |
7.0 |
9710 |
YVP630-2 |
3150 |
211 |
2985 |
95.8 |
0.90 |
1.8 |
0.6 |
7.0 |
11450 |
YVP630-2 |
3550 |
238 |
2985 |
95.8 |
0.90 |
1.8 |
0.6 |
7.0 |
11755 |
YVP630-2 |
4000 |
268 |
2985 |
95.9 |
0.90 |
1.8 |
0.6 |
7.0 |
12050 |
YVP630-2 |
4500 |
301 |
2985 |
95.9 |
0.90 |
1.8 |
0.6 |
7.0 |
12700 |
YVP355-4 |
250 |
18 |
1484 |
92.1 |
0.85 |
1.8 |
0.7 |
7.0 |
2460 |
YVP355-4 |
280 |
21 |
1484 |
92.2 |
0.85 |
1.8 |
0.7 |
7.0 |
2530 |
YVP355-4 |
315 |
23 |
1484 |
92.5 |
0.85 |
1.8 |
0.7 |
7.0 |
2590 |
YVP355-4 |
355 |
26 |
1483 |
92.6 |
0.86 |
1.8 |
0.7 |
7.0 |
2675 |
YVP355-4 |
400 |
29 |
1487 |
92.8 |
0.86 |
1.8 |
0.7 |
7.0 |
2760 |
YVP355-4 |
450 |
32 |
1486 |
93.2 |
0.86 |
1.8 |
0.7 |
7.0 |
2845 |
YVP400-4 |
500 |
36 |
1486 |
93.3 |
0.86 |
1.8 |
0.7 |
7.0 |
3475 |
YVP400-4 |
560 |
40 |
1487 |
93.6 |
0.86 |
1.8 |
0.7 |
7.0 |
3520 |
YVP400-4 |
630 |
45 |
1489 |
93.8 |
0.86 |
1.8 |
0.7 |
7.0 |
3590 |
YVP400-4 |
710 |
50 |
1488 |
94.4 |
0.87 |
1.8 |
0.7 |
7.0 |
3680 |
YVP450-4 |
800 |
56 |
1488 |
94.6 |
0.87 |
1.8 |
0.7 |
7.0 |
4855 |
YVP450-4 |
900 |
62 |
1488 |
94.7 |
0.88 |
1.8 |
0.7 |
7.0 |
4995 |
2-jadval (davomi) YVP seriyali yuqori kuchlanishli o'zgaruvchan chastotali uch fazali asenkron motorning texnik ma'lumotlari (10kV)
Model |
Nominal quvvat kVt |
Stator oqimi A |
Nominal tezlik r/min |
Samaradorlik % |
Quvvat omili cosΦ |
Maksimal moment Nominal moment |
Bloklangan rotor momenti Nominal moment |
Bloklangan rotor oqimi Nominal oqim |
Og'irligi kg |
YVP450-4 |
1000 |
69 |
1488 |
94.8 |
0.88 |
1.8 |
0.7 |
7.0 |
5145 |
YVP450-4 |
1120 |
77 |
1488 |
94.9 |
0.88 |
1.8 |
0.7 |
7.0 |
5295 |
YVP500-4 |
1250 |
85 |
1489 |
95.0 |
0.89 |
1.8 |
0.7 |
7.0 |
5595 |
YVP500-4 |
1400 |
95 |
1487 |
95.3 |
0.89 |
1.8 |
0.7 |
7.0 |
5795 |
YVP500-4 |
1600 |
109 |
1492 |
95.4 |
0.89 |
1.8 |
0.7 |
7.0 |
6200 |
YVP500-4 |
1800 |
122 |
1492 |
95.5 |
0.89 |
1.8 |
0.7 |
7.0 |
6390 |
YVP560-4 |
2000 |
136 |
1491 |
95.7 |
0.89 |
1.8 |
0.7 |
7.0 |
7390 |
YVP560-4 |
2240 |
152 |
1491 |
95.8 |
0.89 |
1.8 |
0.7 |
7.0 |
7620 |
YVP560-4 |
2500 |
169 |
1491 |
95.8 |
0.89 |
1.8 |
0.7 |
7.0 |
8175 |
YVP560-4 |
2800 |
190 |
1492 |
95.8 |
0.89 |
1.8 |
0.7 |
7.0 |
8410 |
YVP630-4 |
3150 |
213 |
1491 |
95.9 |
0.89 |
1.8 |
0.6 |
7.0 |
9990 |
YVP630-4 |
3550 |
240 |
1491 |
95.9 |
0.89 |
1.8 |
0.6 |
7.0 |
10550 |
YVP630-4 |
4000 |
270 |
1491 |
96.0 |
0.89 |
1.8 |
0.6 |
7.0 |
11070 |
YVP630-4 |
4500 |
304 |
1491 |
96.0 |
0.89 |
1.8 |
0.6 |
7.0 |
11640 |
YVP355-6 |
200 |
16 |
987 |
91.2 |
0.80 |
1.8 |
0.7 |
6.0 |
2590 |
YVP355-6 |
220 |
17 |
988 |
91.4 |
0.80 |
1.8 |
0.7 |
6.0 |
2650 |
YVP355-6 |
250 |
20 |
987 |
91.6 |
0.80 |
1.8 |
0.7 |
6.0 |
2710 |
YVP355-6 |
280 |
22 |
986 |
91.8 |
0.80 |
1.8 |
0.7 |
6.0 |
2780 |
YVP355-6 |
315 |
24 |
988 |
92.1 |
0.82 |
1.8 |
0.7 |
6.0 |
2795 |
YVP355-6 |
355 |
27 |
988 |
92.4 |
0.83 |
1.8 |
0.7 |
6.0 |
2895 |
YVP400-6 |
400 |
30 |
987 |
92.6 |
0.83 |
1.8 |
0.7 |
6.0 |
3430 |
YVP400-6 |
450 |
34 |
987 |
92.8 |
0.83 |
1.8 |
0.7 |
6.0 |
3490 |
YVP400-6 |
500 |
37 |
988 |
93.2 |
0.83 |
1.8 |
0.7 |
6.0 |
3670 |
YVP400-6 |
560 |
41 |
989 |
93.5 |
0.84 |
1.8 |
0.7 |
6.0 |
3750 |
YVP450-6 |
630 |
46 |
989 |
93.8 |
0.84 |
1.8 |
0.7 |
6.0 |
4366 |
YVP450-6 |
710 |
52 |
989 |
94.0 |
0.84 |
1.8 |
0.7 |
6.0 |
4490 |
YVP450-6 |
800 |
58 |
990 |
94.2 |
0.84 |
1.8 |
0.7 |
6.0 |
4640 |
YVP450-6 |
900 |
65 |
990 |
94.4 |
0.85 |
1.8 |
0.7 |
6.0 |
4785 |
YVP500-6 |
1000 |
72 |
990 |
94.6 |
0.85 |
1.8 |
0.7 |
6.0 |
5490 |
YVP500-6 |
1120 |
80 |
990 |
94.8 |
0.85 |
1.8 |
0.7 |
6.0 |
5880 |
YVP500-6 |
1250 |
88 |
993 |
94.9 |
0.86 |
1.8 |
0.7 |
6.0 |
6090 |
YVP500-6 |
1400 |
99 |
993 |
95.3 |
0.86 |
1.8 |
0.7 |
6.0 |
6290 |
YVP560-6 |
1600 |
113 |
993 |
95.4 |
0.86 |
1.8 |
0.7 |
6.0 |
7350 |
YVP560-6 |
1800 |
127 |
993 |
95.5 |
0.86 |
1.8 |
0.7 |
6.0 |
7750 |
YVP560-6 |
2000 |
140 |
993 |
95.6 |
0.86 |
1.8 |
0.7 |
6.0 |
8100 |
YVP560-6 |
2240 |
157 |
993 |
95.6 |
0.86 |
1.8 |
0.7 |
6.0 |
8300 |
YVP630-6 |
2500 |
176 |
993 |
95.6 |
0.86 |
1.8 |
0.6 |
6.0 |
9970 |
YVP630-6 |
2800 |
197 |
993 |
95.6 |
0.86 |
1.8 |
0.6 |
6.0 |
10460 |
YVP630-6 |
3150 |
221 |
993 |
95.7 |
0.86 |
1.8 |
0.6 |
6.0 |
11080 |
2-jadval (davomi) YVP seriyali yuqori kuchlanishli o'zgaruvchan chastotali uch fazali asenkron motorning texnik ma'lumotlari (10kV)
Model |
Nominal quvvat kVt |
Stator oqimi A |
Nominal tezlik r/min |
Samaradorlik % |
Quvvat omili cosΦ |
Maksimal moment Nominal moment |
Bloklangan rotor momenti Nominal moment |
Bloklangan rotor oqimi Nominal oqim |
Og'irligi kg |
YVP630-6 |
3550 |
249 |
993 |
95.8 |
0.86 |
1.8 |
0.6 |
6.0 |
|
YVP400-8 |
250 |
21 |
739 |
91.3 |
0.76 |
1.8 |
0.7 |
6.0 |
3340 |
YVP400-8 |
280 |
23 |
739 |
91.6 |
0.76 |
1.8 |
0.7 |
6.0 |
3420 |
YVP400-8 |
315 |
26 |
738 |
92.1 |
0.77 |
1.8 |
0.7 |
6.0 |
3525 |
YVP400-8 |
355 |
29 |
738 |
92.4 |
0.77 |
1.8 |
0.7 |
6.0 |
3650 |
YVP400-8 |
400 |
32 |
740 |
92.5 |
0.78 |
1.8 |
0.7 |
6.0 |
3770 |
YVP400-8 |
450 |
36 |
740 |
92.7 |
0.78 |
1.8 |
0.7 |
6.0 |
3855 |
YVP450-8 |
500 |
39 |
740 |
93.1 |
0.79 |
1.8 |
0.7 |
6.0 |
4495 |
YVP450-8 |
560 |
44 |
740 |
93.3 |
0.79 |
1.8 |
0.7 |
6.0 |
4560 |
YVP450-8 |
630 |
47 |
743 |
93.8 |
0.82 |
1.8 |
0.7 |
6.0 |
4730 |
YVP450-8 |
710 |
53 |
743 |
94.0 |
0.82 |
1.8 |
0.7 |
6.0 |
4840 |
YVP500-8 |
800 |
60 |
743 |
94.2 |
0.82 |
1.8 |
0.7 |
6.0 |
5860 |
YVP500-8 |
900 |
67 |
743 |
94.3 |
0.82 |
1.8 |
0.7 |
6.0 |
6030 |
YVP500-8 |
1000 |
74 |
743 |
94.5 |
0.83 |
1.8 |
0.7 |
6.0 |
6245 |
YVP500-8 |
1120 |
82 |
743 |
94.7 |
0.83 |
1.8 |
0.7 |
6.0 |
6435 |
YVP560-8 |
1250 |
92 |
743 |
94.8 |
0.83 |
1.8 |
0.7 |
6.0 |
7735 |
YVP560-8 |
1400 |
103 |
743 |
94.9 |
0.83 |
1.8 |
0.7 |
6.0 |
8100 |
YVP560-8 |
1600 |
117 |
744 |
94.9 |
0.83 |
1.8 |
0.7 |
6.0 |
8280 |
YVP560-8 |
1800 |
132 |
743 |
94.9 |
0.83 |
1.8 |
0.7 |
6.0 |
8500 |
YVP630-8 |
2000 |
145 |
744 |
94.9 |
0.84 |
1.8 |
0.7 |
6.0 |
10250 |
YVP630-8 |
2240 |
162 |
743 |
95.0 |
0.84 |
1.8 |
0.7 |
6.0 |
10780 |
YVP630-8 |
2500 |
181 |
744 |
95.1 |
0.84 |
1.8 |
0.7 |
6.0 |
10910 |
YVP630-8 |
2800 |
202 |
743 |
95.2 |
0.84 |
1.8 |
0.7 |
6.0 |
11290 |
YVP400-10 |
200 |
18 |
592 |
91.0 |
0.72 |
1.8 |
0.7 |
5.5 |
3470 |
YVP400-10 |
220 |
19 |
592 |
91.0 |
0.72 |
1.8 |
0.7 |
5.5 |
3530 |
YVP400-10 |
250 |
22 |
592 |
91.2 |
0.73 |
1.8 |
0.7 |
5.5 |
3590 |
YVP400-10 |
280 |
24 |
591 |
91.6 |
0.74 |
1.8 |
0.7 |
5.5 |
3650 |
YVP400-10 |
315 |
27 |
592 |
91.9 |
0.74 |
1.8 |
0.7 |
5.5 |
3720 |
YVP400-10 |
355 |
30 |
592 |
92.1 |
0.75 |
1.8 |
0.7 |
5.5 |
3860 |
YVP450-10 |
400 |
33 |
592 |
92.3 |
0.75 |
1.8 |
0.7 |
5.5 |
4470 |
YVP450-10 |
450 |
36 |
592 |
92.5 |
0.77 |
1.8 |
0.7 |
5.5 |
4505 |
YVP450-10 |
500 |
40 |
594 |
92.7 |
0.77 |
1.8 |
0.7 |
5.5 |
4595 |
YVP450-10 |
560 |
45 |
593 |
92.9 |
0.78 |
1.8 |
0.7 |
5.5 |
4790 |
YVP500-10 |
630 |
50 |
593 |
93.1 |
0.78 |
1.8 |
0.7 |
5.5 |
5680 |
YVP500-10 |
710 |
56 |
593 |
93.3 |
0.78 |
1.8 |
0.7 |
5.5 |
5870 |
YVP500-10 |
800 |
62 |
594 |
93.8 |
0.80 |
1.8 |
0.7 |
5.5 |
6070 |
YVP500-10 |
900 |
69 |
594 |
94.0 |
0.80 |
1.8 |
0.7 |
5.5 |
6230 |
YVP560-10 |
1000 |
77 |
594 |
94.1 |
0.80 |
1.8 |
0.7 |
6.0 |
7100 |
YVP560-10 |
1120 |
86 |
594 |
94.2 |
0.80 |
1.8 |
0.7 |
6.0 |
7300 |
2-jadval (davomi) YVP seriyali yuqori kuchlanishli o'zgaruvchan chastotali uch fazali asenkron motorning texnik ma'lumotlari (10kV)
Model |
Nominal quvvat kVt |
Stator oqimi A |
Nominal tezlik r/min |
Samaradorlik % |
Quvvat omili cosΦ |
Maksimal moment Nominal moment |
Bloklangan rotor momenti Nominal moment |
Bloklangan rotor oqimi Nominal oqim |
Og'irligi kg |
YVP560-10 |
1250 |
96 |
595 |
94.3 |
0.80 |
1.8 |
0.7 |
6.0 |
7500 |
YVP560-10 |
1400 |
107 |
594 |
94.3 |
0.80 |
1.8 |
0.7 |
6.0 |
8050 |
YVP630-10 |
1600 |
121 |
594 |
94.3 |
0.81 |
1.8 |
0.7 |
6.0 |
9700 |
YVP630-10 |
1800 |
136 |
594 |
94.4 |
0.81 |
1.8 |
0.7 |
6.0 |
9930 |
YVP630-10 |
2000 |
151 |
594 |
94.6 |
0.81 |
1.8 |
0.7 |
6.0 |
10500 |
YVP630-10 |
2240 |
169 |
594 |
94.7 |
0.81 |
1.8 |
0.7 |
6.0 |
10730 |
YVP450-12 |
315 |
27 |
494 |
91.6 |
0.73 |
1.8 |
0.7 |
5.5 |
4475 |
YVP450-12 |
355 |
31 |
493 |
91.8 |
0.73 |
1.8 |
0.7 |
5.5 |
4505 |
YVP450-12 |
400 |
34 |
495 |
92.0 |
0.73 |
1.8 |
0.7 |
5.5 |
4605 |
YVP450-12 |
450 |
39 |
495 |
92.2 |
0.73 |
1.8 |
0.7 |
5.5 |
4800 |
YVP500-12 |
500 |
43 |
495 |
92.5 |
0.73 |
1.8 |
0.7 |
5.5 |
5840 |
YVP500-12 |
560 |
47 |
494 |
92.9 |
0.74 |
1.8 |
0.7 |
5.5 |
6050 |
YVP500-12 |
630 |
53 |
494 |
93.1 |
0.74 |
1.8 |
0.7 |
5.5 |
6250 |
YVP500-12 |
710 |
59 |
494 |
93.3 |
0.74 |
1.8 |
0.7 |
5.5 |
6450 |
YVP560-12 |
800 |
67 |
494 |
93.8 |
0.74 |
1.8 |
0.7 |
6.0 |
7200 |
YVP560-12 |
900 |
75 |
494 |
93.8 |
0.74 |
1.8 |
0.7 |
6.0 |
7380 |
YVP560-12 |
1000 |
83 |
495 |
93.8 |
0.74 |
1.8 |
0.7 |
6.0 |
7950 |
YVP560-12 |
1120 |
93 |
495 |
93.8 |
0.74 |
1.8 |
0.7 |
6.0 |
8160 |
YVP630-12 |
1250 |
103 |
495 |
93.8 |
0.75 |
1.8 |
0.7 |
6.0 |
9630 |
YVP630-12 |
1400 |
115 |
495 |
93.9 |
0.75 |
1.8 |
0.7 |
6.0 |
9880 |
YVP630-12 |
1600 |
131 |
495 |
94.0 |
0.75 |
1.8 |
0.7 |
6.0 |
10470 |
YVP630-12 |
1800 |
147 |
495 |
94.1 |
0.75 |
1.8 |
0.7 |
6.0 |
10710 |
Xitoy professionallaridan biri sifatida yirik elektr motor ishlab chiqaruvchilari , biz 2003 yildan beri yuqori sifatli uch fazali inverter motorini va mukammal xizmat ko'rsatishni ta'minlashga e'tibor qaratamiz. Biz professional ishlab chiqaruvchi va 65 000 M zavodmiz 2 , ular asosan hv motorlar , ex proof motor , pmsm motor mahsulotlarini ishlab chiqaradi. 20 yillik tajribaga ega bo'lgan Biz sizga yirik elektr motorlarini ulgurji sotish, sozlash, dizayn, qadoqlash, sanoat yechimlari va OEM & ODM xizmatini taqdim etamiz.
Agar sizda haqida savollaringiz bo'lsa , uch fazali inverterli vosita , asenkron inverterli motorlar , yuqori voltli vosita, o'zgaruvchan chastotali vosita, yuqori kuchlanishli asenkron vosita iltimos, istalgan vaqtda biz bilan bog'lanishdan tortinmang. Biz xususiyatlari, spetsifikatsiyalari, yechimlari va moslashtirish imkoniyatlari haqida batafsil ma'lumot va texnik yordam beramiz hv motorlar , ex proof motor , pmsm motorining ... Fabrikamıza tashrif buyurishga xush kelibsiz!
