We're professional brake dc motor manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation or if you have any questions, contact us now for customized and price.

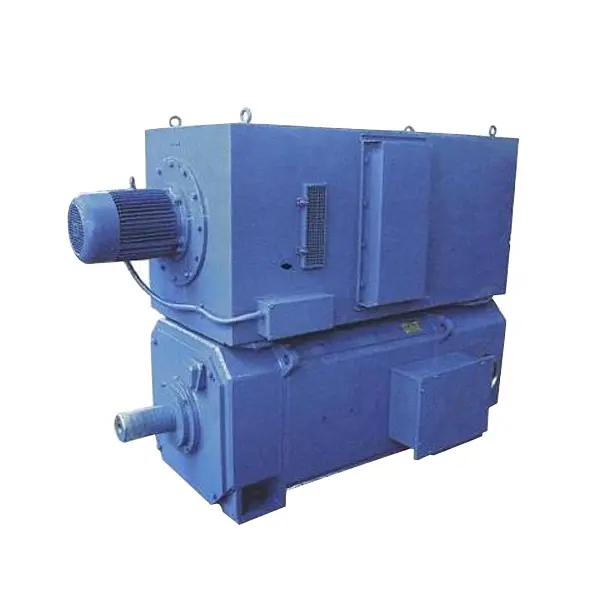

● The motor base is an octagonal thin steel plate lamination structure, which has the advantages of high stator space utilization, compact internal structure, small moment of inertia, light weight, and adaptability to thyristor power supply.
● All motors are equipped with compensation windings, so the motors have excellent commutation performance and overload capacity.
● The insulation grade of the motor is F, and it is treated with solvent-free vacuum pressure impregnation (VPI). The winding insulation has good insulation performance and mechanical strength.
● The commutator segment is a vertical plate integral structure, and the vertical plate is connected to the armature coil by tungsten inert gas shielded welding (TIG).
● The armature core adopts a skewed slot structure, which can effectively reduce vibration and noise.
● The motor adopts rolling bearings and a non-stop oiling structure.
1. The motor is in continuous duty (S1). Other duty can be converted according to Table 1 to the values in the technical data sheet.
Table1
Working system | Load increase |
82-30min | 107% |
S2-60min | 100% |
S3-40% | 120% |
S3-60% | 110% |
2. The motor cooling method is external cooling and forced ventilation, that is, the motor is equipped with a radial riding blower or duct ventilation or with an air/water cooler. The corresponding relationship between its protection level and cooling method is shown in Table 2. The required cooling air volume, air pressure and fan motor power are shown in Table 3, and the air/non-cooler circulating fan power and cooling water flow are shown in Table 4.
Table2
Protection level | Cooling method | |
Radial Ride Blower Cooling | IP21S | IC06 |
Single pipe air | IP23S | IC17 |
Double pipe wind | IP44 | IC37 |
With air/water cooler | IP44 | ICW86 |
Table3
Frame No. | Air volume(m³/hr) | Static Pressure(Pa) | Motor power(KW) | weight(kg) |
ZFQZ-250 | 3000 | 1400 | 3.0 | 70 |
ZFQZ-280 | 4000 | 1600 | 4.0 | 80 |
ZFQZ-315 | 4860 | 1600 | 5.5 | 90 |
ZFQZ-355 | 5200 | 1600 | 5.5 | 120 |
ZFQZ-400 | 7200 | 1800 | 5.5 | 180 |
ZFQZ-450 | 9000 | 1800 | 7.5 | 250 |
Table4
Cooler Model | Fan motor | Cooling water flow(m³/h) | Weight (kg) |
KSL-250 | 4.0kw | 11 | 400 |
KSL-280 | 5.5kw | 12 | 500 |
KSL-315 | 5.5kw | 13 | 600 |
KSL-355 | 7.5kw | 15 | 750 |
KSL-400 | 7.5kw | 18 | 850 |
KSL-450 | 11kw | 19.5 | 950 |
As one of China professional large electric motor manufacturers, we focus on providing high-quality brake dc motor and excellent service since 2003. We are a professional manufacturer and factory of 65,000 M2 which mainly produce hv motors, ex proof motor, pmsm motor products for around 20 years’ experience. We provide you with large electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about brake dc motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of hv motors, ex proof motor, pmsm motor... Welcome you to visit our factory!
